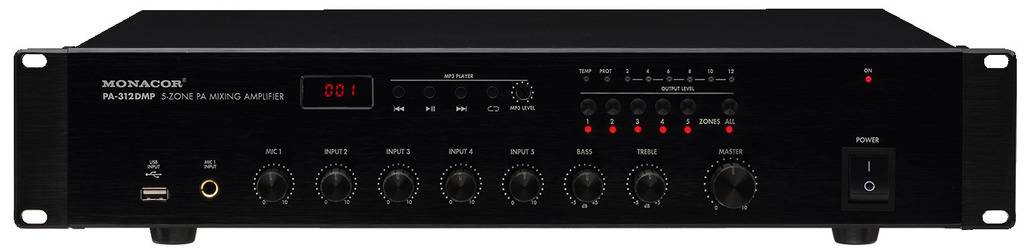

Monacor PA-312DMP PA amplifier 120 W 5-channel
EAN:
Part number:
Item no:
Total (€ 483.19 / piece)
€ 483.19
plus VAT.
14-day return policy included
5 zones PA mixer-amplifier PA-312 DMP
Technical specifications
- 160WMAX
- Mic input: 5mV/600 Ohm (XLR, balanced) 2.5 mV/2 kOhm (6.3 mm jack)
- Line input: 775 mV/10 kOhm
- Aux-input: 350 mV/10 kOhm
- Telephone Input: 775 mV/10 kOhm (EMC)
- Speaker output: 4-16 Ohm, 70/100V
- Product type
PA amplifier
- RMS power
120 W
- Dim
(L x W x H) 335 x 482 x 88 mm
- Weight
9.5 kg
- No. of channels
5-channel
- Width
482 mm
- Height
88 mm
- Length
335 mm
- Interfaces
3.5 mm jack
Mic XLR in
Line in
- UKCA
yes
Description
Features
- 5-Zone-ELA mono mixing amplifier with built-in MP3 player
- 1 x 120WRMS
- Adjustable MP3-player with USB interface, illuminated display, including remote control
- Auto start function (MP3-Player starts when you turn on the power of the amplifier with the last track played)
- 5 zones, can be switched individually
- 1 asymmetric microphone input
- 2 balanced mic inputs, either as a line inputs can be used
- 2 Aux inputs
- 1 emergency input with controllable auto-talkover

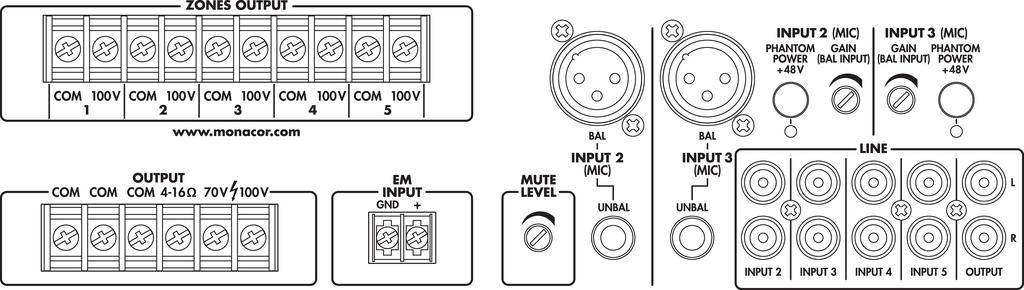

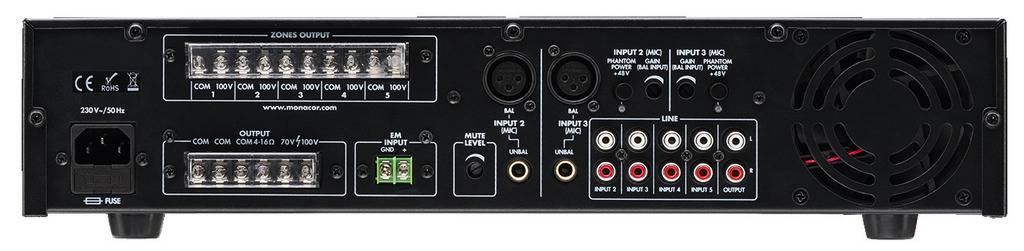

- Loudspeaker outputs via screw terminals
- 1 line output
- Input and output level control
- 2-way tone control for the output
- 48-V-phantom power for channels 2 and 3 can be activated
- 482-mm-Rack Installation (19')
- This text is machine translated.
Scope of delivery
- Remote control
- 19" mounting bracket.
