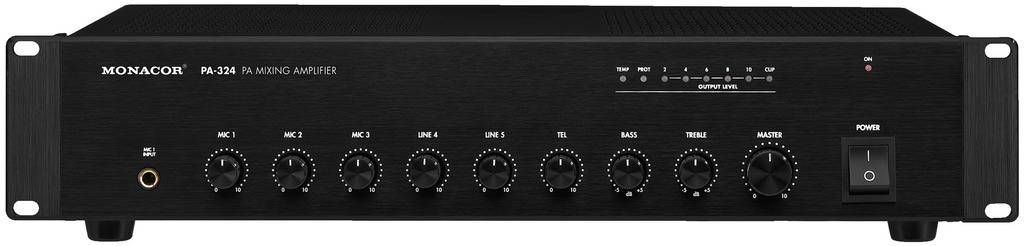

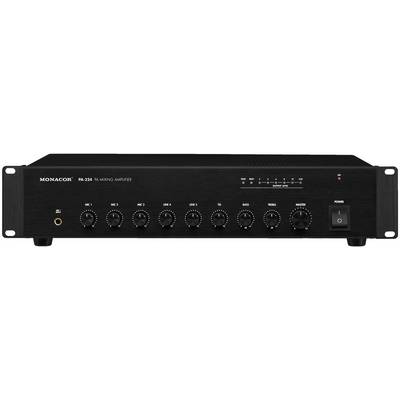

Monacor PA-324 PA amplifier 240 W 6-channel
EAN:
Part number:
Item no:
Monacor PA-324 ELA-mono mixing amplifier
Technical specifications
- 340WMAX
- Mic input: 5mV/600 Ohm
- Aux-input: 350 mV/10 kOhm
- Telephone Input: 1 V/10 kOhm
- Speaker output: 4-16 Ohm, 70/100V
- Frequency range:50-1 6000 Hz
- Sound Control Depth: +/-10 dB/100 Hz
- Sound controller, High: +/-10 dB/10 kHz
- Signal-to-noise ratio: 66 dB (Mic) 80 dB (Aux)
- Distortion:< 0.5%
- Power supply 230 V/50 Hz/740 VA
- 2 HE
- Inputs: 1 x 6.3 mm/XLR (Combo) 1 x 6.3 mm jack (mic 1) 2 x 6.3 mm jack (Mic 2-3) 2 x RCA L/R (Aux 1-2) Screw Terminals (Telephone)
- Outputs: 1 x RCA L/R (line-out)
- Product type
PA amplifier
- RMS power
240 W
- Dim
(L x W x H) 38 x 43 x 8.8 cm
- Weight
16.6 kg
- No. of channels
6-channel
- Output type (PA amplifier)
70 V
100 V
- Width
43 cm
- Height
8.8 cm
- Length
38 cm
- Interfaces
Mic input combo jack (XLR, 6.35 mm jack)
Mic 6.35 mm in
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332314 Monacor PA-324 PA amplifier 240 W 6-channel
User & Safety Instructions 1332314 Monacor PA-324 PA amplifier 240 W 6-channel
Description
Features
- ELA mono mixing amplifier
- 3 microphone inputs, of which 1 symmetric input
- Mic 1 with priority circuit and controllable auto-talkover
- 2 Aux inputs
- 1 Telephone Input for telephone central with audio output
- Loudspeaker outputs via screw terminals
- 1 line output
- Input and output level control
- 2-way tone control for the output
- 48-V-phantom power for channel 1, can be activated
- 482 mm (19") rack mounting with supplied mounting angles
- This text is machine translated.
Scope of delivery
- 19" mounting angles.
