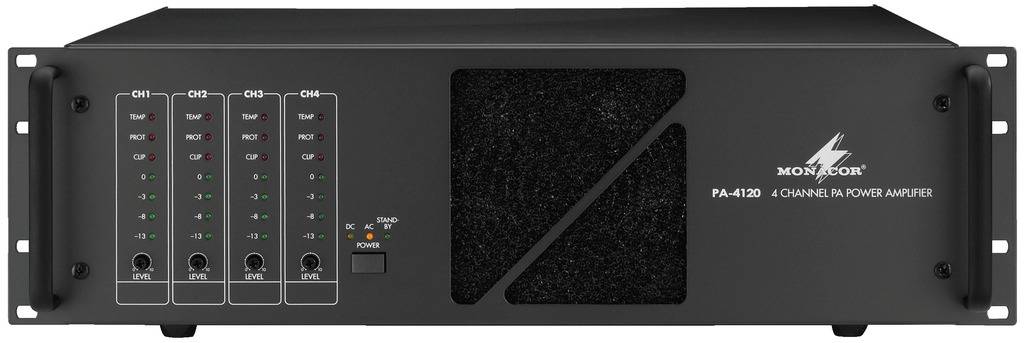

Monacor PA-4120 PA amplifier 120 W 4-channel
EAN:
Part number:
Item no:
Technical specifications
- Input sensitivity: 1.2 V, sym.
- Output impedance: 22 V/4 Ohm, 50 V/21 Ohm, 70 V/41 Ohm, 100 V/83 Ohm
- Frequency range 55-17000 Hz, -3 dB
- Signal/noise ratio:> 90 dB, A"-evaluated
- Distortion factor:< 1%
- High-pass filter:
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/1400 VA, 24 V DC/60 A
- Signal input: 4 x XLR
- Product type
PA amplifier
- RMS power
120 W
- Dim
(L x W x H) 37 x 48.3 x 13.3 cm
- Weight
25 kg
- No. of channels
4-channel
- Output type (PA amplifier)
22 V
70 V
100 V
- Width
48.3 cm
- Height
13.3 cm
- Length
37 cm
- Interfaces
XLR in
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332322 Monacor PA-4120 PA amplifier 120 W 4-channel
User & Safety Instructions 1332322 Monacor PA-4120 PA amplifier 120 W 4-channel
Description
Features
- Pa Power Amplifier
- Routing Switch for parallel operation on each of the 2 channels
- Temperature-controlled exhaust
- Connection for external on/off switch
- LED display for clip, protect, overheating and output level
- Mains or 24 V emergency power operation
- This text is machine translated.
