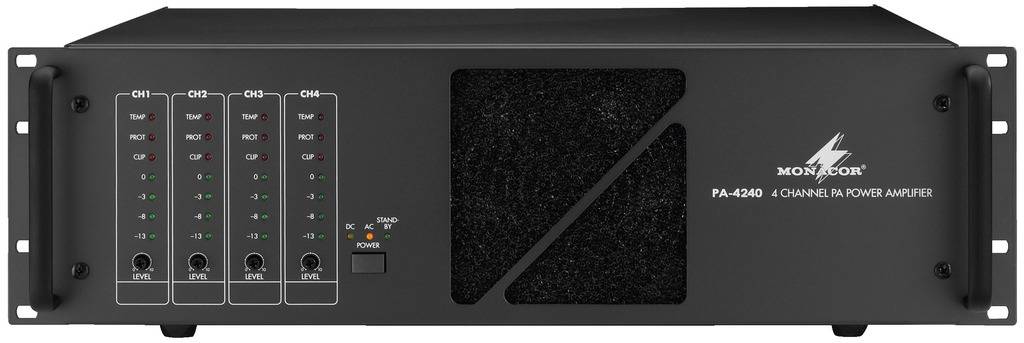

Monacor PA-4240 PA amplifier 240 W 4-channel
EAN:
Part number:
Item no:
Technical specifications
- Input sensitivity: 1.2 V, sym.
- Output impedance: 31 V/4 Ohm, 50 V/10.4 Ohm, 70 V/20 Ohm, 100 V/42 Ohm
- Frequency range 55-17000 Hz, -3 dB
- Signal/noise ratio:> 90 dB, A"-evaluated
- Distortion factor:< 1%
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/2720 VA, 24 V DC/113 A
- Signal input: 4 x XLR
- Speaker output: screw terminals
- Product type
PA amplifier
- RMS power
240 W
- Dim
(L x W x H) 37 x 48.3 x 13.3 cm
- Weight
28 kg
- No. of channels
4-channel
- Output type (PA amplifier)
31 V
70 V
50 V
100 V
- Width
48.3 cm
- Height
13.3 cm
- Length
37 cm
- Interfaces
XLR in
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332323 Monacor PA-4240 PA amplifier 240 W 4-channel
User & Safety Instructions 1332323 Monacor PA-4240 PA amplifier 240 W 4-channel
Description
Features
- Pa Power Amplifier
- Routing Switch for parallel operation on each of the 2 channels
- Temperature-controlled exhaust
- Connection for external on/off switch
- LED display for clip, protect, overheating and output level
- Mains or 24 V emergency power operation
