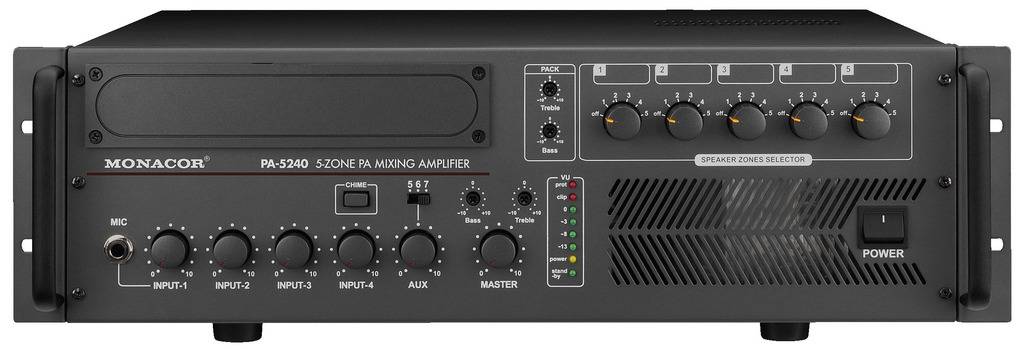

Monacor PA-5240 PA amplifier 240 W 5-channel 5-zone
EAN:
Part number:
Item no:
Monacor PA-5240ELA-AMPLIFIER
Technical specifications
- 340WMAX
- Mic 1:2.5 mV/2 kOhm
- Mic/Line 2-4: 2.5 mV/2 kOhm, 0.3 V/200 kOhm
- Line 5-7: 0.3 V/5 kOhm
- Preamplifier: 0.775V/10 kOhm
- Speakers: 100 V/70 V
- Preamplifier: 0.775V/100 Ohm
- Frequency range 55-16000 Hz
- Depth: +/-10 dB/100 Hz
- High: +/-10 dB/10 kHz
- Mic:> 70 dB
- Line:> 80 dB
- Distortion factor:< 1%
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/750 VA,
- 24 V DC / 20 A
- 3 HE.
- Mic/Line: 2 x 6.3 mm/XLR (Combo), 1 x 6.3 mm jack
- Line: screw terminal, 3 x RCA L/R
- Command Microphone: screw terminal
- PTT microphone: screw terminal
- Pre-amplifier: 1 x 6.3 mm jack
- Product type
PA amplifier
- RMS power
240 W
- No. of zones
5-zone
- Dim
(L x W x H) 35.2 x 48.2 x 13.3 cm
- Weight
16.5 kg
- No. of channels
5-channel
- Output type (PA amplifier)
70 V
100 V
- Width
48.2 cm
- Height
13.3 cm
- Length
35.2 cm
- Interfaces
Mic input combo jack (XLR, 6.35 mm jack)
6.3 mm jack in
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332326 Monacor PA-5240 PA amplifier 240 W 5-channel 5-zone
User & Safety Instructions 1332326 Monacor PA-5240 PA amplifier 240 W 5-channel 5-zone
Description
Features
- 5-Zone-ELA mono mixing amplifier
- 5 zones, individually controlled
- Gong, loud howl has many, Auto Mute, gong and siren also via external switch remotely triggered, 2-tone or 4-Ton-Gong adjustable
- Bass, Treble, as well as master controller, level display via LEDs, controlled fan
- Slots for different functions are optionally available.
- Phantom supply for electret microphones
- Connection for command microphone PA-5000 PTT
- Alarm announcement with slot PA-1120DM (optionally available)
- Power and 24V emergency power operation
- Mounting bracket can be removed
- This text is machine translated.
Scope of delivery
- 19" mounting angles.
