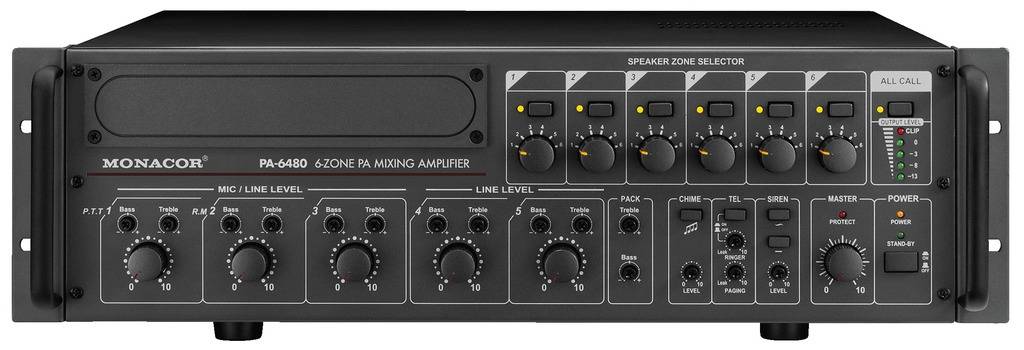

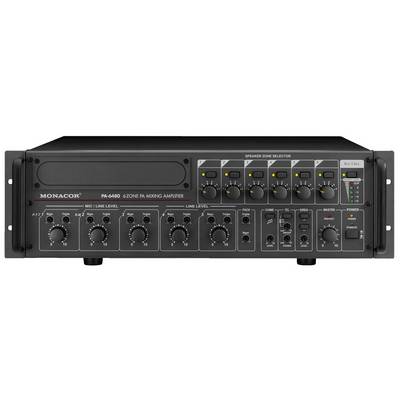

Monacor PA-6480 PA amplifier 480 W 6-zone
EAN:
Part number:
Item no:
Monacor PA -6480 ELA-AMPLIFIER
Technical specifications
- 680WMAX
- Mic/Line 1-3: 2.5 mV/5 kOhm, 0.3 V/5 kOhm
- Line4-5: 0.3 V/15 kOhm
- Preamplifier: 0.775V/10 kOhm
- Speakers: 100 V/70 V
- Preamplifier: 0.775V/100 Ohm
- Record: 0.775V/3 kOhm
- Frequency range 55-16000 Hz
- Depth: +/-10 dB/100 Hz
- High: +/-10 dB/10 kHz
- Mic:> 70 dB, A"-evaluated
- Line:> 80 dB, "A"-evaluated
- Distortion factor:< 1%
- Permissible operating temperature: 0-40°C
- Power supply 230 VWechsel/50 Hz/1500 VA,
- 24 V DC / 40 A
- Mic/Line: 3 x 6.3 mm/XLR (Combo)
- Line: 2 x RCA L/R
- Command Microphone: 2x RJ45 optional
- PTT microphone: 1x RJ45
- Ext. Amplifier: 1 x 6.3 mm jack
- 1 xVorverstarker: 1 x 6.3 mm jack
- Record: 1 x RCA L/R
- Product type
PA amplifier
- RMS power
480 W
- No. of zones
6-zone
- Dim
(L x W x H) 35.2 x 48.2 x 13.3 cm
- Weight
19.5 kg
- Output type (PA amplifier)
70 V
100 V
- Width
48.2 cm
- Height
13.3 cm
- Length
35.2 cm
- Interfaces
3.5 mm jack
Mic input combo jack (XLR, 6.35 mm jack)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332330 Monacor PA-6480 PA amplifier 480 W 6-zone
User & Safety Instructions 1332330 Monacor PA-6480 PA amplifier 480 W 6-zone
Description
PROSOUND 9/10-2007
MONACOR has a long tradition in accordance with a healthy and robust mechanics, which is also the case here.
The ELA amplifier makes a coherent and sophisticated impression.
With the additional modules an adaptable and approval system.
This text is machine translated.
MONACOR has a long tradition in accordance with a healthy and robust mechanics, which is also the case here.
The ELA amplifier makes a coherent and sophisticated impression.
With the additional modules an adaptable and approval system.
This text is machine translated.
Features
- 6-Zone-ELA mono mixing amplifier
- 6 zones, individually controlled
- Gong, continuous and loud howl has many, Auto Mute, 2-tone or 4-Ton-Gong adjustable
- Bass, Treble, as well as master controller, level display via LEDs, controlled fan
- Slots for different functions are optionally available.
- 17-V phantom supply for electret microphones
- Connection for command microphone PA-6000 RC
- 1 Front installation slot for optional automatic alarm announcement PA-1120DMT or optional tuner or CD player slot
- 3 rear installation options for optional modules with the following functions:
- PA-6FD: error monitoring
- PA-6 FM: Error Message
- PA-6FR: anti-feedback
- Power and 24V emergency power operation
- Mounting bracket can be removed
Scope of delivery
- 19" mounting angles.
