Buy Monacor PA-806DAP PA amplifier 60 W 1-channel 1-zone

'Monacor PA-806DAP' amplifier front view with a blue digital display, multiple volume and tone controls, and a USB connection.

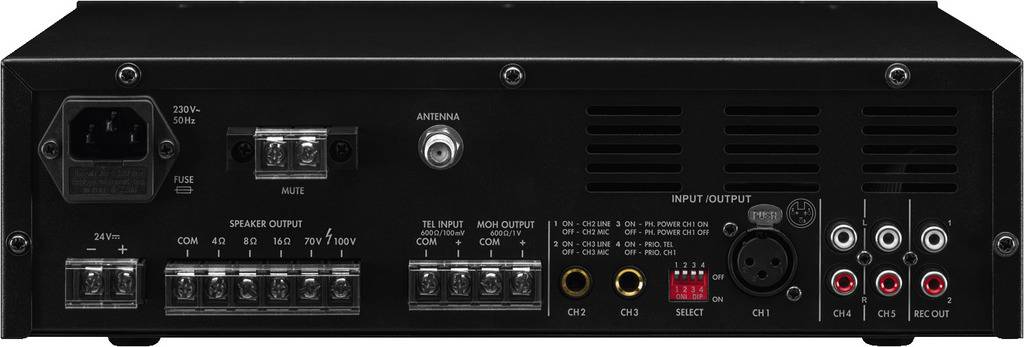

Back of an audio amplifier with connections for power, antenna, speakers, and various input/output ports.

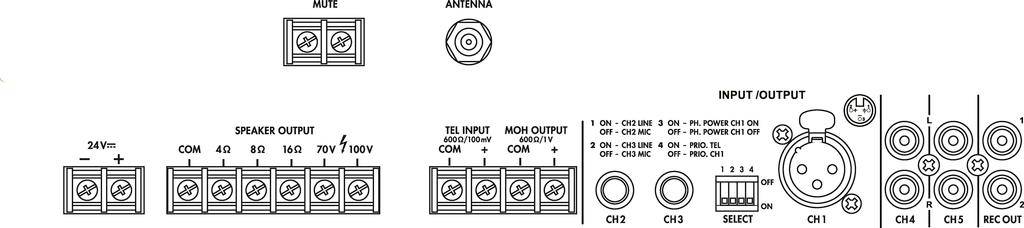

Diagram of a speaker and audio connection unit with connections for power supply, speaker outputs, antenna, and input/output ports.

Monacor PA-806DAP PA amplifier 60 W 1-channel 1-zone-3

1/4

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 284.87 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

PA-806DAP ELA MONO CLASS D MIXER AMPLIFIER 60 W, MP3, USB/SD, FM, DAB+, BT in black

1x PA-812DAP ELA Mono Class D Mixer Amplifier 60 W, MP3, USB/SD, FM, DAB+, BT in black
1 x 60 W.
Class-D concept with hohem efficiency to reduce energy costs
Bluetooth version 4.2
MP3 player with USB/SD interface, FM/DAB+ radio, LED display, IR remote control
Reception of noise-free "digital radio" (DAB+)
1 balanced XLR microphone input with 48V phantom power and priority selection for announcements
2 asymmetrical inputs, switchable mic/line
2 asymmetrical inputs
1 telephone input input
1 Music-on-hold output (MOH)
Loudspeaker outputs via screw contacts
Mute function via screw contact
2 line outputs
On‑ and output level controller
2-way‑Tone control for the output
Temperature-controlled exhaust
LEDs for operation, clipping, protect and signal level

Technical specifications

Dim: (L x W x H) 24.5 x 32 x 9.5 cm

Weight: 4.1 kg

Height: 9.5 cm

Length: 24.5 cm

Width: 32 cm

No. of channels: 1-channel

Interfaces: XLR in
Mic 6.35 mm in
RCA in
RCA out
Screw terminals

No. of zones: 1-zone

RMS power: 60 W

Product type: PA amplifier

Documents & Downloads

Datasheet

Datasheet 2498885 Monacor PA-806DAP PA amplifier 60 W 1-channel 1-zone

User & Safety Instructions

User & Safety Instructions 2498885 Monacor PA-806DAP PA amplifier 60 W 1-channel 1-zone

Conformity certificate

Conformity certificate 2498885 Monacor PA-806DAP PA amplifier 60 W 1-channel 1-zone

Description

PA-806DAP ELA Mono Class D Mixer Amplifier: The PA-806DAP is a Class D mono mixer amplifier with 60 W. The device has an integrated MP3 player, FM/DAB+ tuner and Bluetooth for individual audio playback. The high efficiency helps to keep energy costs as low as possible. The device is noiseless and is characterized by a high connectivity. In addition to an interface for USB/SD storage devices, the amplifier also has an LED display and an IR remote control. Other features include the priority selection for announcements at the XLR 48V phantom power, emergency input and the Music-on-Hold (MOH) output.

This text is machine translated.

Features

Rated output: 60 W
Channels: 1
Zones: 1
Inputs: 4.5 mV/600 Ω (channel 1), 4.5 mV/120 mV (channel 2-3), 60 mV (channel 4-5), 90 mV (Tel.)
Frequency range 60-15000 Hz
Sound control bass: Yes
Treble sound control: Yes
Noise ratio: 72 dB (Mic, Channel 1-3), 85 dB (Line, Channel 2-5)
Distortion factor < : 0.5 %
Phantom power 48 V
Mains voltage ~ 230 V.
Mains frequency 50 Hz
Power consumption operation: 160 VA
Operating voltage (alternatively, if necessary): 24 V DC
Current (alternative, if applicable): 4.2 A.
Permissible operating temperature: 0-40 °C.
Width 320 mm
Height: 95 mm
Depth: 245 mm
Weight 4.1 kg.
Connections: 1 x XLR (channel 1), 2 x 6.3 mm jack (channel 2-3), 2 x cinch L/R (channel 4-5), 2 x cinch (record out), 1 x F-socket (FM/DAB+), screw contacts (phone input), screw contacts (MOH), screw contacts (DC 24 V), screw contacts (mute), screw contacts (loudspeaker)
Packaging dimensions (W x H x L): 0.39 x 0.16 x 0.31 m
Gross weight: 4.86 kg
Net weight: 4.09 kg

Scope of delivery

Components: 1x PA-806DAP
Number of individual items: 1
