Monacor PA-812DAP PA amplifier 120 W 1-channel 1-zone
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 352.10 / piece)
€ 352.10
plus VAT.
Only 6 Piece(s) available
Highlights & Details
PA-812DAP ELA MONO CLASS D MIXER AMPLIFIER 120 W, MP3, USB/SD, FM, DAB+, BT in black
- 1x PA-812DAP ELA Mono Class D mixer amplifier 120 W, MP3, USB/SD, FM, DAB+, BT in black
- 1 x 120 W.
- Class-D concept with hohem efficiency to reduce energy costs
- Noiseless operation through fanless cooling concept
- Bluetooth version 4.2
- MP3 player with USB/SD interface, FM/DAB+ radio, LED display, IR remote control
- Reception of noise-free "digital radio" (DAB+)
- 1 balanced XLR microphone input with 48V phantom power and priority selection for announcements
- 2 asymmetrical inputs, switchable mic/line
- 2 asymmetrical inputs
- 1 telephone input input
- 1 Music-on-hold output (MOH)
- Loudspeaker outputs via screw contacts
- Mute function via screw contact
- 1 Amp input
- 1 Preamp output
- On‑ and output level controller
- 2-way‑Tone control for the output
- LEDs for operation, clipping, protect and signal level
Technical specifications
- Dim
(L x W x H) 24.5 x 32 x 9.5 cm
- Weight
4.5 kg
- Height
9.5 cm
- Length
24.5 cm
- Width
32 cm
- No. of channels
1-channel
- Interfaces
XLR in
Mic 6.35 mm in
RCA in
RCA out
Screw terminals
- No. of zones
1-zone
- RMS power
120 W
- UKCA
yes
- Product type
PA amplifier
Documents & Downloads
Datasheet
Datasheet 2498886 Monacor PA-812DAP PA amplifier 120 W 1-channel 1-zone
User & Safety Instructions
User & Safety Instructions 2498886 Monacor PA-812DAP PA amplifier 120 W 1-channel 1-zone
Conformity certificate
Conformity certificate 2498886 Monacor PA-812DAP PA amplifier 120 W 1-channel 1-zone
Description
PA-812DAP ELA Mono Class D Mixer Amplifier: The PA-812DAP is a Class D mono mixer amplifier with 120 W. The device has an integrated MP3 player, FM/DAB+ tuner and Bluetooth for individual audio playback. The high efficiency helps to keep energy costs as low as possible. The device is noiseless and is characterized by a high connectivity. In addition to an interface for USB/SD storage devices, the amplifier also has an LED display and an IR remote control. Other features include the priority selection for announcements at the XLR 48V phantom power, emergency input and the Music-on-Hold (MOH) output.
This text is machine translated.
This text is machine translated.
Features
- Rated output: 120 W
- Channels: 1
- Zones: 1
- Inputs: 4.5 mV/600 Ω (channel 1), 4.5 mV/120 mV (channel 2-3), 60 mV (channel 4-5), 90 mV (Tel.)
- Frequency range 60-15000 Hz
- Sound control bass: Yes
- Treble sound control: Yes
- Noise ratio: 72 dB (Mic, Channel 1-3), 85 dB (Line, Channel 2-5)
- Distortion factor < : 0.5 %
- Phantom power 48 V
- Mains voltage ~ 230 V.
- Mains frequency 50 Hz
- Power consumption operating: 250 VA
- Operating voltage (alternatively, if necessary): 24 V DC
- Current (alternative, if applicable): 8.4 A.
- Permissible operating temperature: 0-40 °C.
- Width 320 mm
- Height: 95 mm
- Depth: 245 mm
- Weighs 4.5 kg.

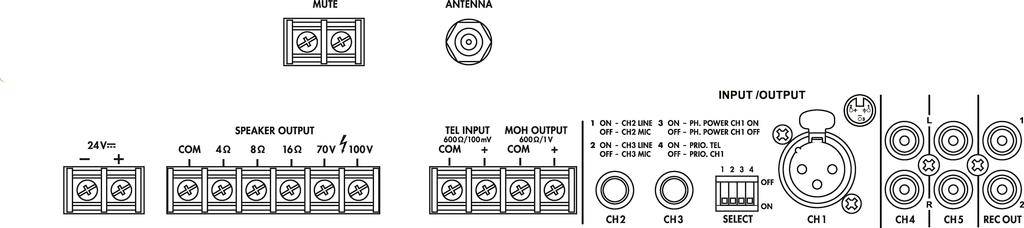

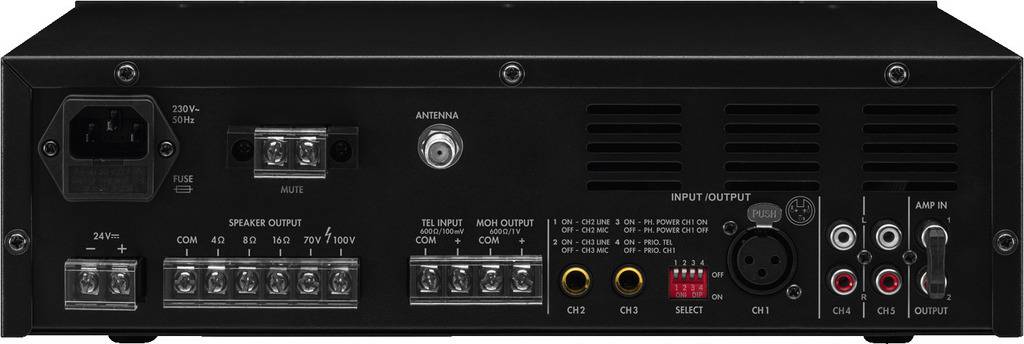

- Connections: 1 x XLR (channel 1), 2 x 6.3 mm jack (channel 2-3), 2 x RCA L/R (channel 4-5), 1 x RCA (amp in), 1 x RCA (preamp out), 1 x F socket (FM/DAB+), screw contacts (Tel input), screw contacts (MOH), screw contacts (DC 24 V), screw contacts (Mute), speaker
- Packaging dimensions (W x H x L): 0.395 x 0.16 x 0.305 m
- Gross weight: 5.2 kg
- Net weight: 4.51 kg
Scope of delivery
- Components: 1x PA-812DAP
- Number of individual items: 1
