Monacor PA-900DT PA amplifier 120 W 2-channel 2-zone
EAN:
Part number:
Item no:
Highlights & Details

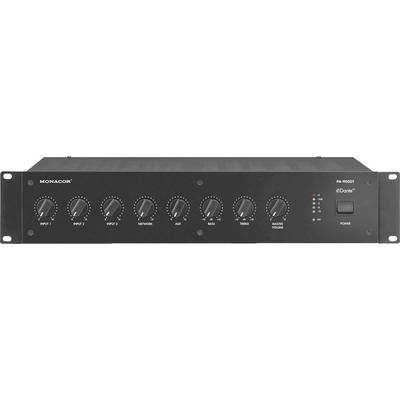

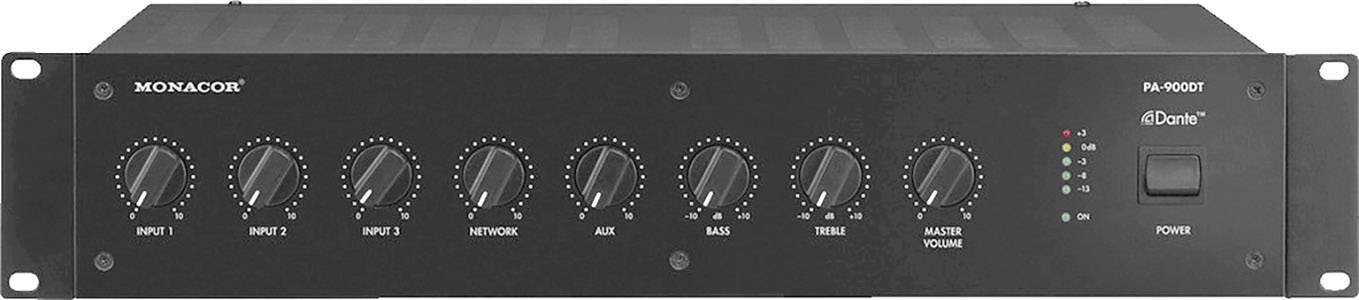

MONACOR PA-900DT ELA mono mixing amplifier with integrated Dante ® Module, 100 V-amplifier, Dante, Network
- 1 x 120 W
- 3 balanced mic/line inputs
- Dante ® input
- Mic 1 with priority circuit and auto-talkover
- Additional connection for table microphone via screw terminal
- 1x AUX-in
- Noiseless operation through fan-less cooling concept
- Loudspeaker outputs via screw terminals
- Line output
- Units e.g option for e. g. Effect device, equalizer, feedback controller
- Input and output level control
- 2-way tone control for the output
- Phantom power 20 V pro microphone input, can be switched individually
- Mounting bracket can be removed
Technical specifications
- Total audio power (Pmax) 160 W, frequency range50-1 5000 Hz, sound regulation deep ±10 dB/100 Hz, sound control high ±10 dB/10 kHz, Connections 1x RJ45 (Dante ®)
- Product type
PA amplifier
- RMS power
120 W
- No. of zones
2-zone
- Dim
(L x W x H) 27.5 x 48.2 x 8.8 cm
- Weight
9.9 kg
- No. of channels
2-channel
- Output type (PA amplifier)
100 V
- Width
48.2 cm
- Height
8.8 cm
- Length
27.5 cm

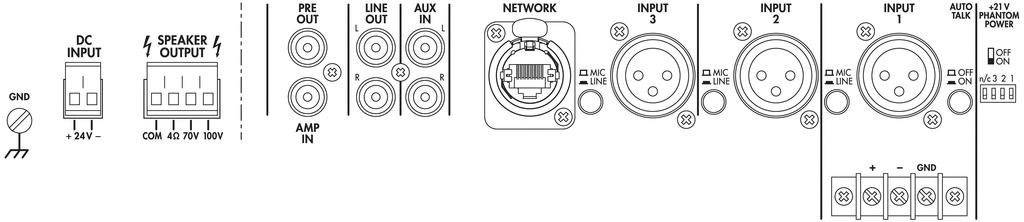

- Interfaces
XLR in
RCA out
RCA in
Screw terminals
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1594654 Monacor PA-900DT PA amplifier 120 W 2-channel 2-zone
Description
The well-known and proven amplifier system AKB-160 is now available with a 2-Channel Dante ® Module. So, it can be used it as Dante ® Instr Amer comfortably and receives via the RJ45 connection a digital stereo or two mono-signals. These signals are converted into an analogue audio signal, amplifies and output. Thus, in an existing analogue speaker system a digital Dante Network.
The amplifier is designed especially for use in PA sound systems. It can 120 W Sinus at 100-V and 70-V-speaker, or to a speaker group with a total impedance of 4 Ω. To the input channels can be mixed with each other comparable microphones (channels 1-3) or devices with line level (channels 1-3 and AUX). The fifth input of the amplifier is an Ethernet interface for connection to a Dante audio network, the audio signals via one or two of Dante channels can be received. The input channel 1 of the amplifier is equipped with a talkover function at a announcement the other channels in the volume by 40 dB is reduced.
This text is machine translated.
The amplifier is designed especially for use in PA sound systems. It can 120 W Sinus at 100-V and 70-V-speaker, or to a speaker group with a total impedance of 4 Ω. To the input channels can be mixed with each other comparable microphones (channels 1-3) or devices with line level (channels 1-3 and AUX). The fifth input of the amplifier is an Ethernet interface for connection to a Dante audio network, the audio signals via one or two of Dante channels can be received. The input channel 1 of the amplifier is equipped with a talkover function at a announcement the other channels in the volume by 40 dB is reduced.
