Buy Monacor PA-9100D PA amplifier 1000 W 5-channel

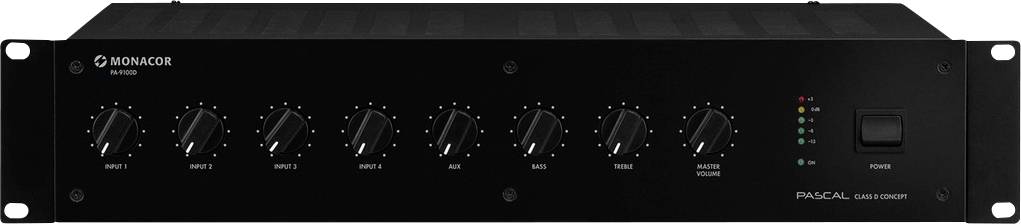

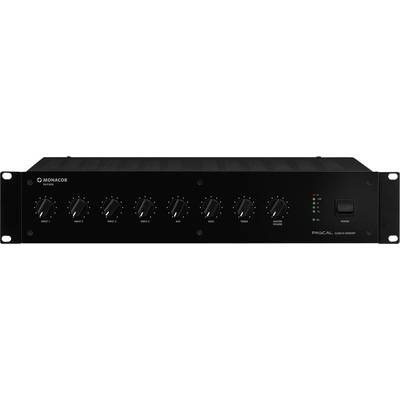

Here is an audio amplifier with seven rotary controls and a power switch.

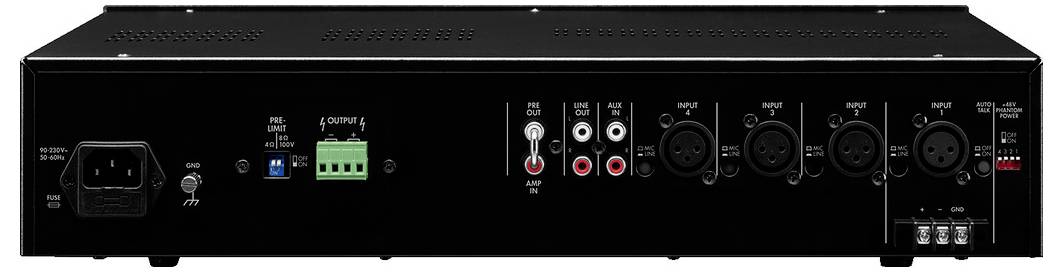

'Rear panel of an audio amplifier with multiple inputs and outputs, including XLR connections, RCA connections, and power socket.'

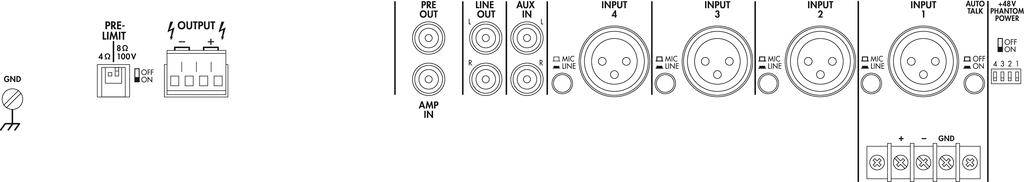

'Diagram of an Audio Amplifier with Connections: GND, Preamplifier, Speaker Outputs, AMP IN, PH OUT, AUX IN.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 5.6 kg
Frequency range 20-20000 Hz
Width 482 mm
Height: 88 mm
Depth: 275 mm
Ass. Operating temperature 0-40 °C
Weight: 5.6 kg
Gross weight: 6.6 kg
Inputs 3 mV (Mic),200 mV (Line),140 mV (Aux)
Sound control Bass: ± 10 dB/100 Hz
Distortion factor < 0.1 %
Power supply: " 90-230 V/50-60 Hz/1100 VA
Rated output: 1000 W
Power consumption operation 1030 VA
Total output power: 1000 W.
4 x XLR (mic/line), 1 x RCA L/R (Aux), screw contacts (speaker)
Channels: 5
Height units HE 2
Output impedance 4-8 Ω
Power at 4 Ω 900 W
Output at 100 V: 1000 W@9.2 Ω
Sound control for trebles: ± 10 dB/10 kHz
Signal-to-noise ratio > 80 dB
Phantom power 48 V
Mains voltage ~ 90-230 V
Network frequency: 50~-60 Hz
Power at 8 Ω 1000 W
Integrated limiter: Yes

Product type: PA amplifier

RMS power: 1000 W

Dim: (L x W x H) 27.5 x 48.2 x 8.8 mm

Weight: 5.6 kg

No. of channels: 5-channel

Width: 48.2 mm

Height: 8.8 mm

Length: 27.5 mm

Frequency range: 20-20000 Hz

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3340712 Monacor PA-9100D PA amplifier 1000 W 5-channel

User & Safety Instructions

User & Safety Instructions 3340712 Monacor PA-9100D PA amplifier 1000 W 5-channel

Description

PA-Mono-Class D mixing amplifier
1 x 1000 W Class-D concept with PASCAL amplifier module Energy-saving concept by high efficiency Weight-reduced design by compact switched-mode power supply Silent operation by fan-less cooling concept 4 symmetric Mic 1 with priority circuit and auto-talkover Additional connection for table microphone via screw terminal 1 Aux input speaker outputs Line output option for effects devices, equalizers, Feedback controller Input and output level control 2-way sound control for the output 48-V phantom power per microphone input, can be switched individually Limiter switch 4 Ω/8 Ω/100 V detachable mounting bracket

This text is machine translated.

Features

Output power
Total: 1000 W
Rated output: 1000 W
Power at 4 Ω 900 W
Power at 8 Ω 1000 W
Output at 100 V: 1000 W@9.2 Ω
Output impedance 4-8 Ω
Channels: 5
Inputs: 3 mV (Mic),;200 mV (Line),;140 mV (Aux)
Frequency range 20-20000 Hz
Integrated limiter: Yes
Sound control Bass: ± 10 dB/100 Hz
Sound control for trebles: ± 10 dB/10 kHz
Signal-to-noise ratio > 80 dB
Distortion factor < 0.1 %
Phantom power 48 V
Power supply: " 90-230 V/50-60 Hz/1100 VA
Mains voltage ~ 90-230 V
Network frequency: 50~-60 Hz
Power consumption operation 1030 VA
Ass. Operating temperature 0-40 °C
Width 482 mm
Height: 88 mm
Depth: 275 mm
Height units HE 2
Weight: 5.6 kg
Connections: 4 x XLR (mic/line),; 1 x RCA L/R (aux),; screw contacts (speaker)
Packaging dimensions (W x H x L) 0.5 x 0.13 x 0.36 m
Gross weight: 6.6 kg
Net weight: 5.6 kg
