Buy Monacor PA-912S PA amplifier 120 W 1-channel 1-zone

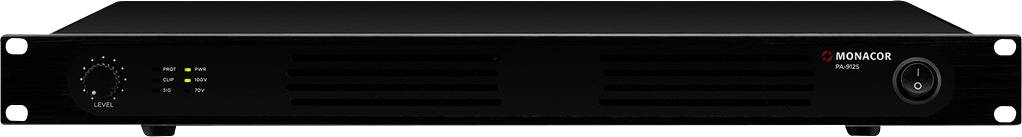

A black Monacor PA-702 amplifier with volume control, power button, and indicator lights. Suitable for audio amplification.

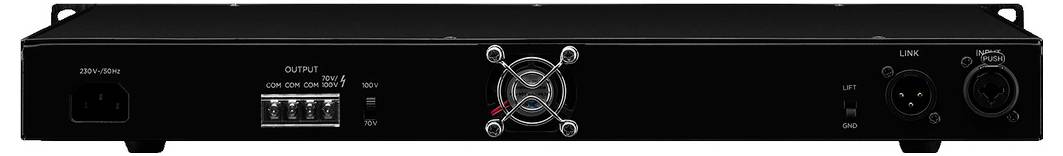

Back panel of a black audio amplifier with a fan, power connection, output terminals, and XLR connections, suitable for professional audio applications.

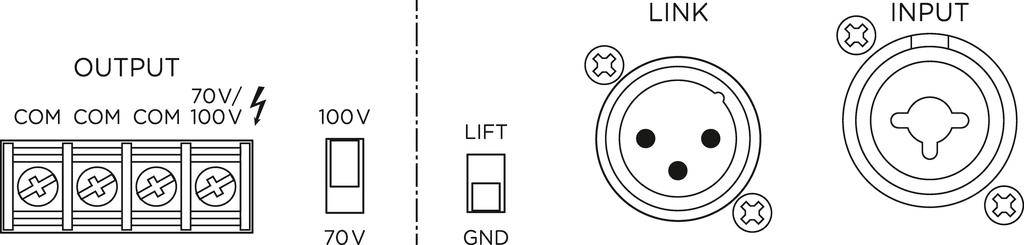

'Diagram shows the output and input sockets of an audio device. On the left: Various output sockets, on the right: Link and input slots.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 3.72 kg
Frequency range 80-16000 Hz
Width 483 mm
Height: 44 mm
Depth: 255 mm
Ass. Operating temperature 0-40 °C
Weighs 3.5 kg.
Gross weight: 4.69 kg
Inputs 670 mV/10 kΩ, balanced
Distortion factor < 1 %
Power supply: " 230 V/50 Hz/225 VA
Rated output: 120 W
Power consumption operation 225 VA
Total output power: 120 W.
1 x 6.3 mm/XLR combo (input) ,1 x XLR (link), screw contacts (speaker)
Channels: 1
Height units HE 1
OUTPUT IMPEDANCE 70 V/40 Ω, 100 V/80 Ω
Power at 100 V 120 W.
Power at 70 V 120 W.
Signal-to-noise ratio > 98 dB(A)
Mains voltage ~ 230 V
Mains frequency 50 Hz

Product type: PA amplifier

RMS power: 120 W

No. of zones: 1-zone

Dim: (L x W x H) 25.5 x 48.3 x 4.4 mm

Weight: 3.5 kg

No. of channels: 1-channel

Width: 48.3 mm

Height: 4.4 mm

Length: 25.5 mm

Frequency range: 80-16000 Hz

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3340713 Monacor PA-912S PA amplifier 120 W 1-channel 1-zone

User & Safety Instructions

User & Safety Instructions 3340713 Monacor PA-912S PA amplifier 120 W 1-channel 1-zone

Circuit diagramm

Circuit diagramm 3340713 Monacor PA-912S PA amplifier 120 W 1-channel 1-zone

Description

PA-mono power amplifier
1 x 120 W Infinitely temperature-controlled fan Over-heating, overload and short-circuit protection LED-display for clip, protect, overheating, output level and 100 V/70 V loop output (link) Loudspeaker outputs via screw contacts

This text is machine translated.

Features

Output power
Total: 120 W
Rated output: 120 W
Power at 100 V 120 W.
Power at 70 V 120 W.
Output impedance 70 V/40 Ω
100 V/80 Ω
Channels: 1
Inputs 670 mV/10 kΩ
symmetric
Frequency range 80-16000 Hz
Signal-to-noise ratio > 98 dB(A)
Distortion factor < 1 %
Power supply: " 230 V/50 Hz/225 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption operation 225 VA
Ass. Operating temperature 0-40 °C
Width 483 mm
Height: 44 mm
Depth: 255 mm
Height units HE 1
Weighs 3.5 kg.
Connections: 1 x 6.3 mm/XLR combo (input),;1 x XLR (link), ; screw contacts (speaker)
Packaging dimensions (W x H x L) 0.36 x 0.135 x 0.54 m
Gross weight: 4.69 kg
Net weight: 3.72 kg
