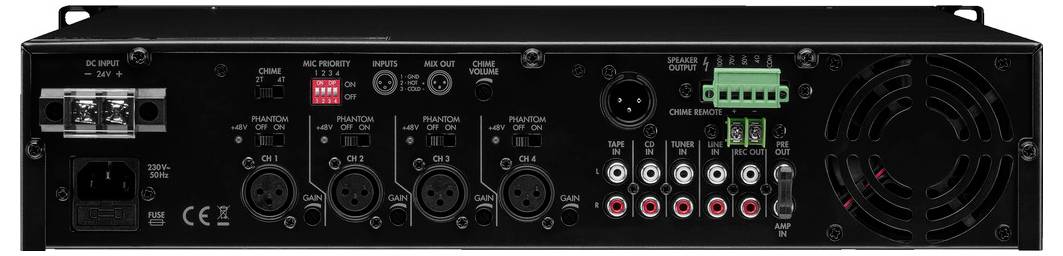

Back panel of an audio amplifier with multiple XLR and RCA inputs, a fan, and switches for various settings.

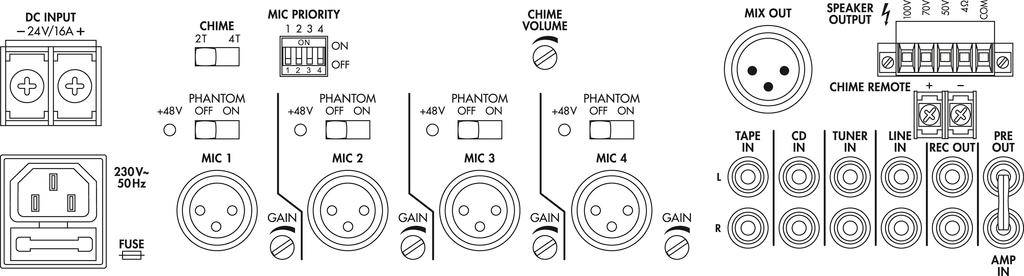

'Diagram of an Audio Signal Mixing Setup. Shows DC input, microphone settings, chime options, mixing and speaker outputs.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 13.21 kg
Frequency range 50-16000 Hz
Width 482 mm
Height: 95 mm
Depth: 390 mm
Ass. Operating temperature 0-40 °C
Weight: 13 kg
Gross weight: 16.12 kg
Inputs: 2,5-100 mV (Mic), 350 mV (Line)
Sound control Bass: ± 10 dB/100 Hz
Distortion factor < 0.1 %
Power supply: " 230 V/50 Hz/640 VA, DC 24 V/18 A.
Rated output: 240 W
Power consumption operation 640 VA
Total output power: 340 W.
4 x XLR (mic) ,4 x RCA L/R (line) ,1 x XLR (line out),1 x RCA L/R (line out), screw contacts (speaker)
Channels: 5
Height units HE 2
Power at 4 Ω 240 W
Power at 100 V 240 W.
Power at 70 V 240 W.
Sound control for trebles: ± 10 dB/10 kHz
Signal-to-noise ratio > 75 dB
Phantom power 48 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Operating voltage (alternative if necessary): DC 24 V.
Current (possibly alternative): DC 18 A.

Product type: PA amplifier

RMS power: 240 W

Dim: (L x W x H) 39 x 48.2 x 9.5 mm

Weight: 13 kg

No. of channels: 5-channel

Width: 48.2 mm

Height: 9.5 mm

Length: 39 mm

Interfaces: Mic XLR in
RCA in
RCA out
Screw terminals

Frequency range: 50-16000 Hz

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3340720 Monacor PA-924 PA amplifier 240 W 5-channel

User & Safety Instructions

User & Safety Instructions 3340720 Monacor PA-924 PA amplifier 240 W 5-channel

Description

PA-mono mixer-amplifier
1 x 240 W 4 symmetric microphone-/line inputs with switchable priority 4 Stereo line inputs loudspeaker outputs via screw contacts Symmetric line output Record output Loop-in possibility for e.g. effect devices, equalizer, feedback controller External triggering 2/4 tone gong Input and output level controller 2-fold sound control for the output Switchable 48-V phantom power for the microphone inputs Temperature-controlled fans Mains or 24-V emergency power operation detachable

This text is machine translated.

Features

Output power
Total: 340 W
Rated output: 240 W
Power at 4 Ω 240 W
Power at 100 V 240 W.
Power at 70 V 240 W.
Channels: 5
Inputs: 2,5-100 mV (Mic),; 350 mV (Line)
Frequency range 50-16000 Hz
Sound control Bass: ± 10 dB/100 Hz
Sound control for trebles: ± 10 dB/10 kHz
Signal-to-noise ratio > 75 dB
Distortion factor < 0.1 %
Phantom power 48 V
Power supply: " 230 V/50 Hz/640 VA,; DC 24 V/18 A.
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption operation 640 VA
Operating voltage (alternative if necessary): DC 24 V.
Current (possibly alternative): DC 18 A.
Ass. Operating temperature 0-40 °C
Width 482 mm
Height: 95 mm
Depth: 390 mm
Height units HE 2
Weight: 13 kg
Connections: 4 x XLR (Mic),;4 x RCA L/R (Line),;1 x XLR (Line Out),;1 x RCA L/R (Line Out),;Screw contacts (Speaker);
Packaging dimensions (W x H x L) 0.54 x 0.195 x 0.505 m
Gross weight: 16.12 kg
Net weight: 13.21 kg
