Buy Monacor PA-924S PA amplifier 240 W 1-channel 1-zone

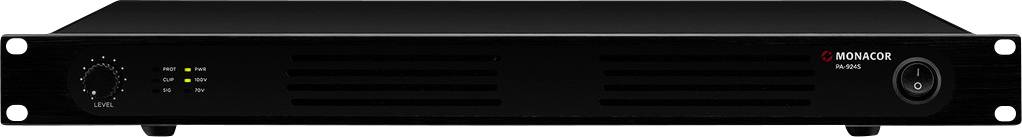

Black amplifier in rack design with rotary controls, LED indicators, and power switch.

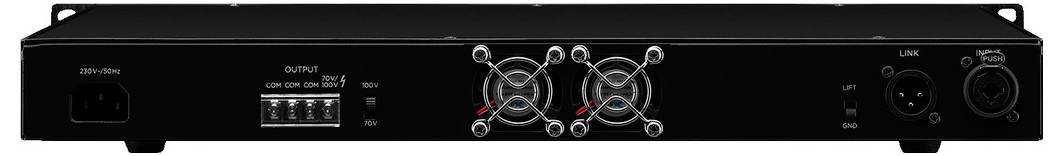

Black audio device with fans, ports, and switches on the front panel. Fans are centrally positioned, sockets located on the right.

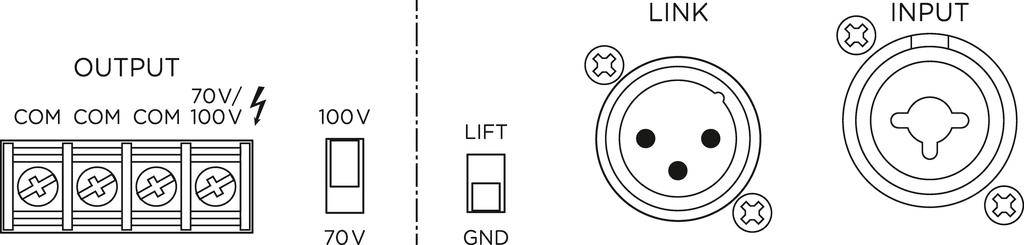

Schema of Audio Connections: 'Output' with multiple connection terminals, 'Lift' and 'GND' switches. 'Link' and 'Input' round socket connections.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 3.99 kg
Frequency range 80-16000 Hz
Width 483 mm
Height: 44 mm
Depth: 255 mm
Ass. Operating temperature 0-40 °C
Weighs 3.8 kg
Gross weight: 4.93 kg
Inputs 650 mV/10 kΩ, balanced
Distortion factor < 1 %
Power supply: " 230 V/50 Hz/495 VA
Rated output: 240 W
Power consumption operation 495 VA
Total output power: 240 W.
1 x 6.3 mm/XLR combo (input) ,1 x XLR (link), screw contacts (speaker)
Channels: 1
Height units HE 1
OUTPUT IMPEDANCE 70 V/20 Ω, 100 V/40 Ω
Power at 4 Ω 240 W
Power at 100 V 240 W.
Power at 70 V 240 W.
Signal-to-noise ratio > 98 dB(A)
Mains voltage ~ 230 V
Mains frequency 50 Hz

Product type: PA amplifier

RMS power: 240 W

No. of zones: 1-zone

Dim: (L x W x H) 25.5 x 48.3 x 4.4 cm

Weight: 3.8 kg

No. of channels: 1-channel

Output type (PA amplifier): 100 V

Width: 48.3 cm

Height: 4.4 cm

Length: 25.5 cm

Frequency range: 80-16000 Hz

Documents & Downloads

Datasheet

Datasheet 3340718 Monacor PA-924S PA amplifier 240 W 1-channel 1-zone

User & Safety Instructions

User & Safety Instructions 3340718 Monacor PA-924S PA amplifier 240 W 1-channel 1-zone

Circuit diagramm

Circuit diagramm 3340718 Monacor PA-924S PA amplifier 240 W 1-channel 1-zone

Description

PA-mono power amplifier
1 x 240 W Infinitely temperature-controlled fan Over-heating, overload and short-circuit protection LED-display for clip, protect, overheating, output level and 100 V/70 V loop output (link) Loudspeaker outputs via screw contacts

This text is machine translated.

Features

Output power
Total: 240 W
Rated output: 240 W
Power at 4 Ω 240 W
Power at 100 V 240 W.
Power at 70 V 240 W.
Output impedance 70 V/20 Ω
100 V/40 Ω
Channels: 1
Inputs 650 mV/10 kΩ
symmetric
Frequency range 80-16000 Hz
Signal-to-noise ratio > 98 dB(A)
Distortion factor < 1 %
Power supply: " 230 V/50 Hz/495 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption operation 495 VA
Ass. Operating temperature 0-40 °C
Width 483 mm
Height: 44 mm
Depth: 255 mm
Height units HE 1
Weighs 3.8 kg
Connections: 1 x 6.3 mm/XLR combo (input),;1 x XLR (link), ; screw contacts (speaker)
Packaging dimensions (W x H x L) 0.36 x 0.14 x 0.54 m
Gross weight: 4.93 kg
Net weight: 3.99 kg
