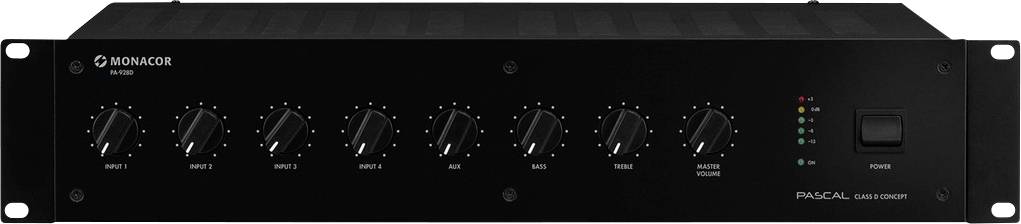

Monacor PA-928D PA amplifier 280 W 5-channel
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 5.19 kg
- Frequency range 20-20000 Hz
- Width 482 mm
- Height: 88 mm
- Depth: 275 mm
- Ass. Operating temperature 0-40 °C
- Weight: 5.2 kg
- Gross weight: 6.14 kg
- Inputs 3 mV (Mic),200 mV (Line),140 mV (Aux)
- Sound control Bass: ± 10 dB/100 Hz
- Distortion factor < 0.1 %
- Power supply: " 90-230 V/50-60 Hz/300 VA
- Rated output: 280 W
- Power consumption operation 300 VA
- Total output power: 280 W.

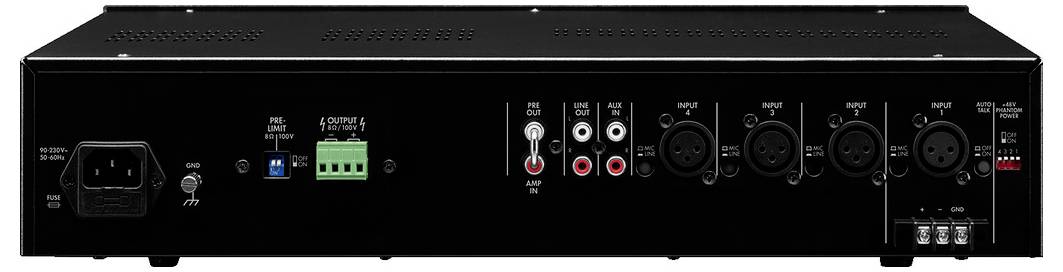

- 4 x XLR (mic/line), 1 x RCA L/R (Aux), screw contacts (speaker)
- Channels: 5
- Height units HE 2
- Output impedance 8 Ω
- Output at 100 V: 280 W@33 Ω
- Sound control for trebles: ± 10 dB/10 kHz
- Signal-to-noise ratio > 80 dB
- Phantom power 48 V
- Mains voltage ~ 90-230 V
- Network frequency: 50~-60 Hz
- Power at 8 Ω 280 W
- Integrated limiter: Yes
- Product type
PA amplifier
- RMS power
280 W
- Dim
(L x W x H) 27.5 x 48.2 x 8.8 mm
- Weight
5.2 kg
- No. of channels
5-channel
- Width
48.2 mm
- Height
8.8 mm
- Length
27.5 mm
- Interfaces
Mic XLR in
- Frequency range
20-20000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340719 Monacor PA-928D PA amplifier 280 W 5-channel
User & Safety Instructions
User & Safety Instructions 3340719 Monacor PA-928D PA amplifier 280 W 5-channel
Description
PA-Mono-Class D mixing amplifier
1 x 280 W Class-D concept with PASCAL amplifier module Energy-saving concept by high efficiency Weight-reduced design by compact switched-mode power supply Silent operation by fan-less cooling concept 4 symmetric Mic 1 with priority circuit and auto-talkover Additional connection for table microphone via screw terminal 1 Aux input speaker outputs Line output option for effects devices, equalizers, Feedback controller Input and output level control 2-way sound control for the output 48-V phantom power per microphone input, can be switched individually Limiter switch 8 Ω/100 V mounting angle detachable
This text is machine translated.
1 x 280 W Class-D concept with PASCAL amplifier module Energy-saving concept by high efficiency Weight-reduced design by compact switched-mode power supply Silent operation by fan-less cooling concept 4 symmetric Mic 1 with priority circuit and auto-talkover Additional connection for table microphone via screw terminal 1 Aux input speaker outputs Line output option for effects devices, equalizers, Feedback controller Input and output level control 2-way sound control for the output 48-V phantom power per microphone input, can be switched individually Limiter switch 8 Ω/100 V mounting angle detachable
This text is machine translated.
Features
- Output power
- Total: 280 W
- Rated output: 280 W
- Power at 8 Ω 280 W
- Output at 100 V: 280 W@33 Ω
- Output impedance 8 Ω
- Channels: 5
- Inputs: 3 mV (Mic),;200 mV (Line),;140 mV (Aux)
- Frequency range 20-20000 Hz
- Integrated limiter: Yes
- Sound control Bass: ± 10 dB/100 Hz
- Sound control for trebles: ± 10 dB/10 kHz
- Signal-to-noise ratio > 80 dB
- Distortion factor < 0.1 %
- Phantom power 48 V
- Power supply: " 90-230 V/50-60 Hz/300 VA
- Mains voltage ~ 90-230 V
- Network frequency: 50~-60 Hz
- Power consumption operation 300 VA
- Ass. Operating temperature 0-40 °C
- Width 482 mm
- Height: 88 mm
- Depth: 275 mm
- Height units HE 2
- Weight: 5.2 kg

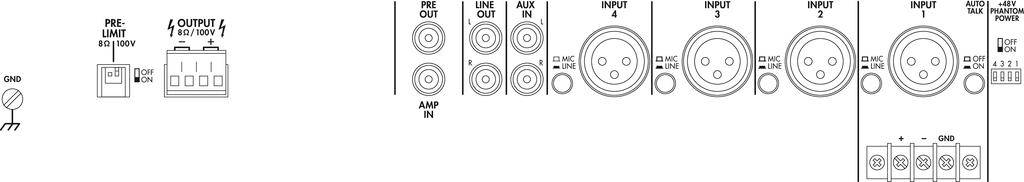

- Connections: 4 x XLR (mic/line),; 1 x RCA L/R (aux),; screw contacts (speaker)
- Packaging dimensions (W x H x L) 0.5 x 0.13 x 0.35 m
- Gross weight: 6.14 kg
- Net weight: 5.19 kg
