Buy Monacor PA-948 PA amplifier 5-channel

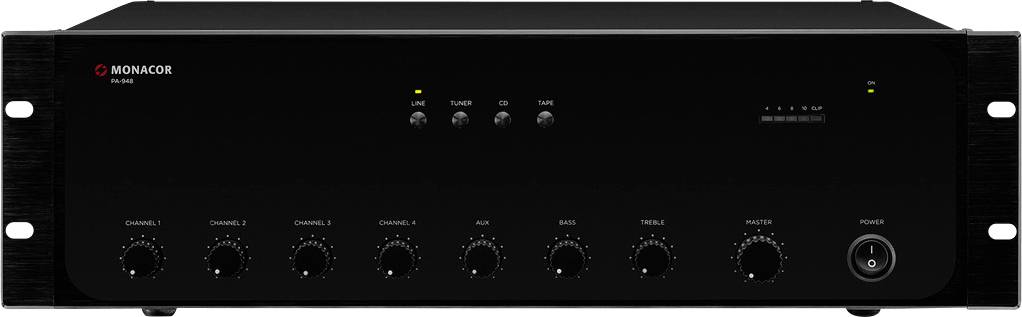

A black audio amplifier with multiple rotary knobs for settings and connections, marked as 'MONACOR PA-900'.

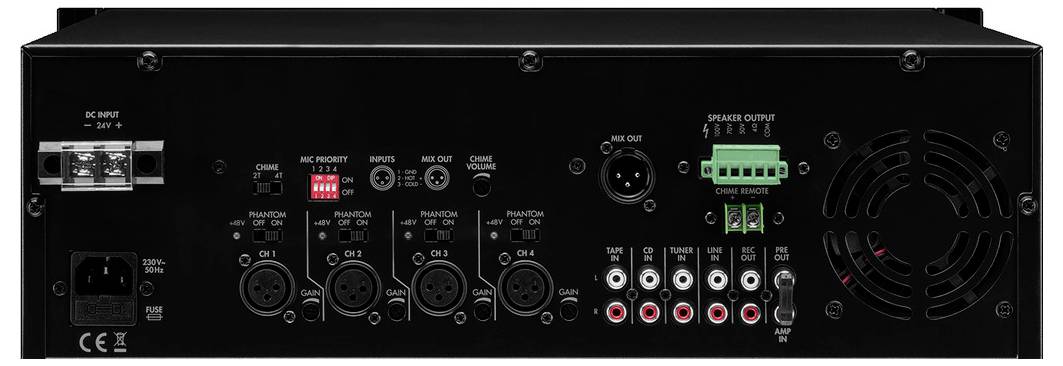

Rear view of an audio amplifier with various audio connections and control elements, including XLR and RCA inputs.

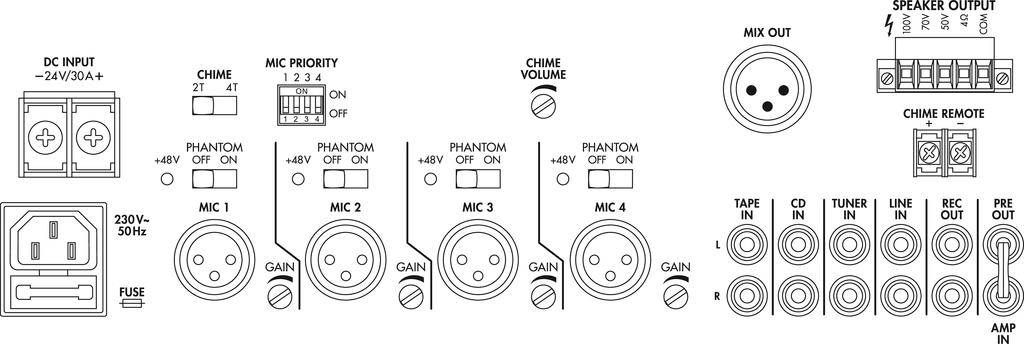

'Diagram of an audio device with connection sockets for DC input, microphones, mixing console, speaker output and various audio inputs. Includes switches for gain and phantom power.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 18.81 kg
Frequency range 50-16000 Hz
Width 482 mm
Height: 137 mm
Depth: 395 mm
Ass. Operating temperature 0-40 °C
Weight 19 kg.
Gross weight: 21.96 kg
Inputs: 2,5-100 mV (Mic), 350 mV (Line)
Sound control Bass: ±10 dB/100 Hz
Distortion factor < 0.1 %
Power supply: " 230 V/50 Hz/1090 VA, DC 24 V/27 A.
Rated output: 480 W
Power consumption operation 1090 VA
Total output power: 680 W.
4 x XLR (mic) ,4 x RCA L/R (line) ,1 x XLR (line out),1 x RCA L/R (line out), screw contacts (speaker)
Channels: 5
Height units HE 3
Power at 4 Ω 480 W
Power at 100 V 480 W.
Power at 70 V 480 W.
Sound control for trebles: ±10 dB/10 kHz
Signal-to-noise ratio > 75 dB
Phantom power 48 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Operating voltage (alternative if necessary): DC 24 V.
Current (possibly alternative): DC 27 A.

Product type: PA amplifier

Dim: (L x W x H) 39.5 x 48.2 x 13.7 cm

Weight: 19 kg

No. of channels: 5-channel

Width: 48.2 cm

Height: 13.7 cm

Length: 39.5 cm

Frequency range: 50-16000 Hz

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3340723 Monacor PA-948 PA amplifier 5-channel

User & Safety Instructions

User & Safety Instructions 3340723 Monacor PA-948 PA amplifier 5-channel

Description

PA-mono mixer-amplifier
1 x 480 W 4 symmetric microphone-/line inputs with switchable priority 4 Stereo line inputs loudspeaker outputs via screw contacts Symmetric line output Record output Loop-in possibility for e.g. effect devices, equalizer, feedback controller External triggering 2/4 tone gong Input and output level controller 2-fold sound control for the output Switchable 48-V phantom power for the microphone inputs Temperature-controlled fans Mains or 24-V emergency power operation detachable

This text is machine translated.

Features

Output power
Total: 680 W
Rated output: 480 W
Power at 4 Ω 480 W
Power at 100 V 480 W.
Power at 70 V 480 W.
Channels: 5
Inputs: 2,5-100 mV (Mic),; 350 mV (Line)
Frequency range 50-16000 Hz
Sound control Bass: ±10 dB/100 Hz
Sound control for trebles: ±10 dB/10 kHz
Signal-to-noise ratio > 75 dB
Distortion factor < 0.1 %
Phantom power 48 V
Power supply: " 230 V/50 Hz/1090 VA,; DC 24 V/27 A.
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption operation 1090 VA
Operating voltage (alternative if necessary): DC 24 V.
Current (possibly alternative): DC 27 A.
Ass. Operating temperature 0-40 °C
Width 482 mm
Height: 137 mm
Depth: 395 mm
Height units HE 3
Weight 19 kg.
Connections: 4 x XLR (Mic),;4 x RCA L/R (Line),;1 x XLR (Line Out),;1 x RCA L/R (Line Out),;Screw contacts (Speaker);
Packaging dimensions (W x H x L) 0.5 x 0.225 x 0.55 m
Gross weight: 21.96 kg
Net weight: 18.81 kg
