Buy Monacor PA-948S PA amplifier 480 W 1-channel 1-zone

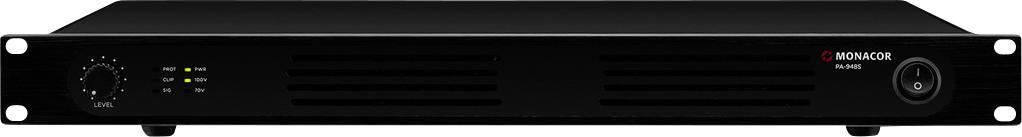

A black amplifier with two rotary knobs, four yellow lights, and a power switch.

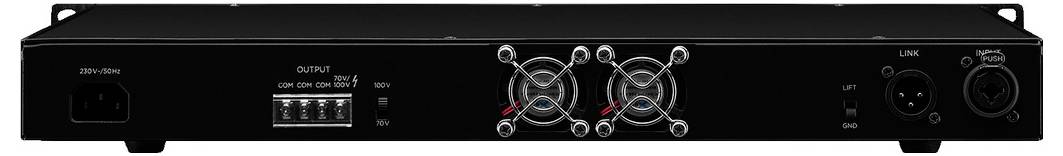

A black electronic device with fans and ports on the back. Suitable for audio/video equipment.

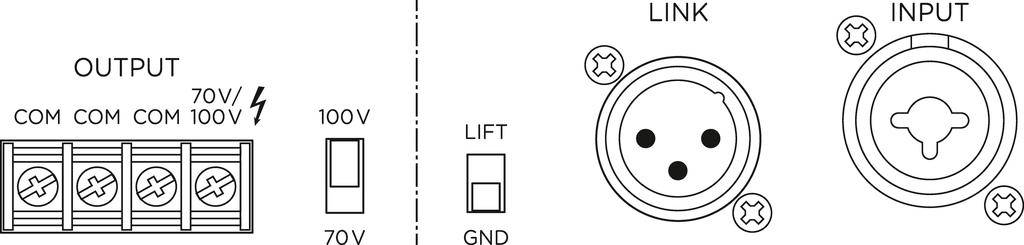

Schematic of an Audio Connection: shows OUTPUT with COM and voltage terminals, LIFT switch, LINK and INPUT ports with symbols.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 4.28 kg
Frequency range 80-16000 Hz
Width 483 mm
Height: 44 mm
Depth: 255 mm
Ass. Operating temperature 0-40 °C
Weight: 4 kg.
Gross weight: 5.23 kg
Inputs 710 mV/10 kΩ, balanced
Distortion factor < 1 %
Power supply: " 230 V/50 Hz/1100 VA
Rated output: 480 W
Power consumption operation 1100 VA
Total output power: 480 W.
1 x 6.3 mm/XLR combo (input) ,1 x XLR (link), screw contacts (speaker)
Channels: 1
Height units HE 1
OUTPUT IMPEDANCE 70 V/10 Ω, 100 V/20 Ω
Power at 100 V 480 W.
Power at 70 V 480 W.
Signal-to-noise ratio > 98 dB(A)
Mains voltage ~ 230 V
Mains frequency 50 Hz

Product type: PA amplifier

RMS power: 480 W

No. of zones: 1-zone

Dim: (L x W x H) 25.5 x 48.3 x 4.4 mm

Weight: 4 kg

No. of channels: 1-channel

Output type (PA amplifier): 100 V

Width: 48.3 mm

Height: 4.4 mm

Length: 25.5 mm

Frequency range: 80-16000 Hz

Documents & Downloads

Datasheet

Datasheet 3340722 Monacor PA-948S PA amplifier 480 W 1-channel 1-zone

User & Safety Instructions

User & Safety Instructions 3340722 Monacor PA-948S PA amplifier 480 W 1-channel 1-zone

Description

PA-mono power amplifier
1 x 480 W Infinitely temperature-controlled fan Over-heating, overload and short-circuit protection LED-display for clip, protect, overheating, output level and 100 V/70 V loop output (link) Loudspeaker outputs via screw contacts

This text is machine translated.

Features

Output power
Total: 480 W
Rated output: 480 W
Power at 100 V 480 W.
Power at 70 V 480 W.
Output impedance 70 V/10 Ω
100 V/20 Ω
Channels: 1
Inputs 710 mV/10 kΩ
symmetric
Frequency range 80-16000 Hz
Signal-to-noise ratio > 98 dB(A)
Distortion factor < 1 %
Power supply: " 230 V/50 Hz/1100 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption operation 1100 VA
Ass. Operating temperature 0-40 °C
Width 483 mm
Height: 44 mm
Depth: 255 mm
Height units HE 1
Weight: 4 kg.
Connections: 1 x 6.3 mm/XLR combo (input),;1 x XLR (link), ; screw contacts (speaker)
Packaging dimensions (W x H x L) 0.36 x 0.14 x 0.54 m
Gross weight: 5.23 kg
Net weight: 4.28 kg
