Monacor PAB-306/SW Passive PA speaker 16 cm 6.5 inch 160 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

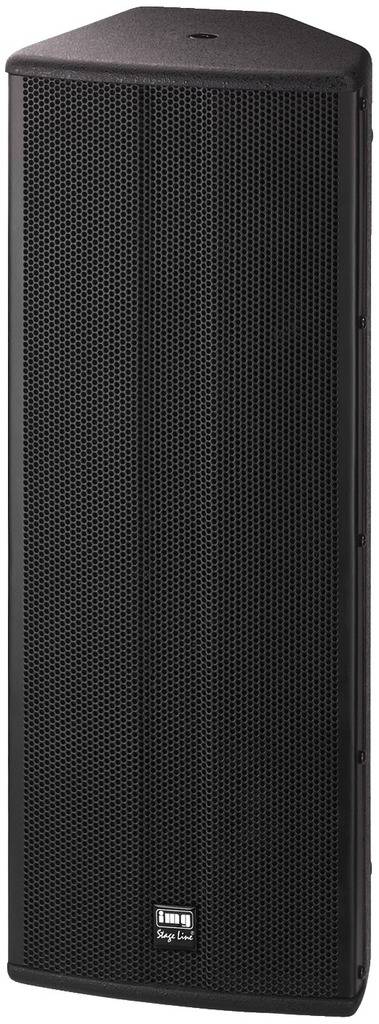

IMG Stage Line PAB-306/SW PA speaker box
- RMS capacity:160 W
- Max. load (W):320 W
- 6.5 inch
- 116 dB
Technical specifications
- System: 2-way D'Appolito, closed
- Woofer: 2x16 cm (6.5)
- Tweeter: 25 mm horn tweeter (1")
- Load capacities:
- Maximum load capacity 320 WMAX
- Nominal load 160 WRMS
- General:
- Impedance 8 Ohm
- Frequency range 65-20000 Hz
- Avg. Sound pressure (1 W/m): 93 dB
- Max. Nominal sound pressure 116 dB
- Permissible operating temperature: 0-40 °C.
- Dimensions 212x565x190 mm
- Inputs: 1xNEUTRIK-type SPK
- Outputs: 1xNEUTRIK-type SPK, par. Out
- Weight: 9.5 kg
- Product type
Passive PA speaker
- RMS capacity
160 W
- Max. load
320 W
- Speaker size (cm)
16 cm
- Speaker size (inch)
6.5 inch
- Features
Can be used as a stage monitor
- Interfaces
SPK type socket
- Impedance
8 Ω
- Max. sound pressure
116 dB
- Frequency range
65 - 20000 Hz
- Dim
(W x H x D) 21.2 x 56.5 x 19 cm
- Weight
9.5 kg
- Content
1 pc(s)
- Width
21.2 cm
- Height
56.5 cm
- Depth
19 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332369 Monacor PAB-306/SW Passive PA speaker 16 cm 6.5 inch 160 W 1 pc(s)
Description
Features
- The IMG Stage Line PA speakers of the 300er series are multifunctional and versatile. They are suitable for both fixed installation and mobile use. ideal for sound-intensive and level-resistant room sound as well as rear and sidesfill applications. The very compact and easy to transport systems are also ideal for mobile use in combination with corresponding subwoofers such as the PSUB-12AKA or PSUB-15AKA and as small floor monitors. Universal PA speaker box, 320 WMAX, 8 Ohm
- Closed 2-way system in D"Appolito arrangement
- 2x16-cm woofer (6.5") and 25-mm tweeter horn (1")
- High-tone protection circuit
- High-quality MDF wood casing in black (SW) or white (WS), with metal protective grillee
- Multi-functional setup and installation options
- 4 x M8 threaded inserts for hanging mounting
- including mounting bracket and integrated stand sleeve
- Type SPK terminal Key world 03/2013 The small active system (PSUB-12AKA & 2 x PAB-306/SW) can be used universally, suitable for entertainers, smaller DJ events or the piano bar. In addition to its tranpatent sound, the system impresses with its good workmanship and equipment."+Good price-performance ratio EVENT Rookie 08/2012"What looks so good should sound good in the ideal case. And this is exactly what the PAB-306/SW and PAB-308/SW do - and all from very quiet to quite loud. Level orgies are not the domain of these boxes, but it is surprising, despite everything, what was coming out of such small boxes. The 306 with the two 6.5-inch models sounds a touch more distinctive and round, but the 308er gives a little more bass with a frequency range that extends slightly downwards. Whether or not this is necessary for the respective intended application area should now be decided by everyone. The 306 also gets sympathy points for its slim and inconspicuous appearance - with such a flat silhouette this box as a small monitor simply makes a "slim foot". For small monitoring, inconspicuous room or background sound or as a fill for larger systems all in all a real recommendation. Both models are available not only in Rock´n´Roll-Black, but also in Gala-White.
- This text is machine translated.
Scope of delivery
- Mounting bracket.
