Buy Monacor PAB-308/WS Passive PA speaker 20 cm 8 inch 125 W 1 pc(s)

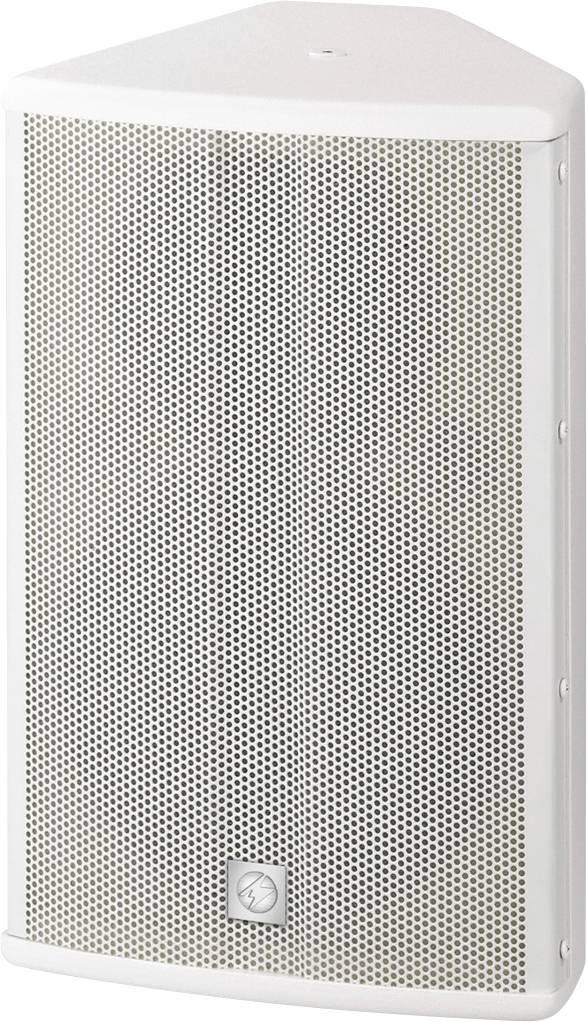

White wall-mounted speaker in a triangular shape with a protective grille on the front. Suitable for corner mounting in interior spaces.

A technical drawing shows four acoustic absorbers mounted on a corner wall and on a stand within a room, for sound reduction.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

IMG Stage Line PAB-308/WS PA speaker box

RMS capacity:125 W
Max. load (W):250 W
8 inch
115 dB

Technical specifications

System: 2-way bass reflex
Woofer 20 cm (8)
Tweeter: 25 mm horn tweeter (1")
Load capacities:
Maximum load capacity 250 WMAX
Nominal load 125 WRMS
General:
Impedance 8 Ohm
Frequency range 60-20000 Hz
Avg. Sound pressure (1 W/m): 93 dB
Max. Nominal sound pressure 115 dB
Permissible operating temperature: 0-40 °C.
Dimensions 258x410x247 mm
Inputs: 1xNEUTRIK-type SPK
Outputs: 1xNEUTRIK-type SPK, par.out
Weight 7.5 kg

Product type: Passive PA speaker

RMS capacity: 125 W

Max. load: 250 W

Speaker size (cm): 20 cm

Speaker size (inch): 8 inch

Features: Can be used as a stage monitor

Interfaces: SPK type socket

Impedance: 8 Ω

Max. sound pressure: 115 dB

Frequency range: 60 - 20000 Hz

Dim: (W x H x D) 25.8 x 41 x 24.7 cm

Weight: 7.5 kg

Content: 1 pc(s)

Width: 25.8 cm

Height: 41 cm

Depth: 24.7 cm

Wireless charging: No

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1332372 Monacor PAB-308/WS Passive PA speaker 20 cm 8 inch 125 W 1 pc(s)

Features

The IMG Stage Line PA speakers of the 300er series are multifunctional and versatile. They are suitable for both fixed installation and mobile use. ideal for sound-intensive and level-resistant room sound as well as rear and sidesfill applications. The very compact and easy to transport systems are also ideal for mobile use in combination with corresponding subwoofers such as the PSUB-12AKA or PSUB-15AKA and as small floor monitors. Universal PA speaker box, 250 WMAX, 8 Ohm
Compact 8/2-full range bass reflex system
20 cm (8") woofer and 25 mm (1") horn tweeter
High-tone protection circuit
High-quality MDF wood casing in black (SW) or white (WS), with metal protective grillee
Multi-functional setup and installation options
4 x M8 threaded inserts for hanging mounting
including mounting bracket and integrated stand sleeve
Type SPK terminal
EVENT Rookie 08/2012 which was so good, ideally it should sound good. And this is exactly what the PAB-306/SW and PAB-308/SW do - and all from very quiet to quite loud. Level orgies are not the domain of these boxes, but it is surprising, despite everything, what was coming out of such small boxes. The 306 with the two 6.5-inch models sounds a touch more distinctive and round, but the 308er gives a little more bass with a frequency range that extends slightly downwards. Whether or not this is necessary for the respective intended application area should now be decided by everyone. The 306 also gets sympathy points for its slim and inconspicuous appearance - with such a flat silhouette this box as a small monitor simply makes a "slim foot". For small monitoring, inconspicuous room or background sound or as a fill for larger systems all in all a real recommendation. Both models are available not only in Rock´n´Roll-Black, but also in Gala-White.
This text is machine translated.

Scope of delivery

Mounting bracket.
