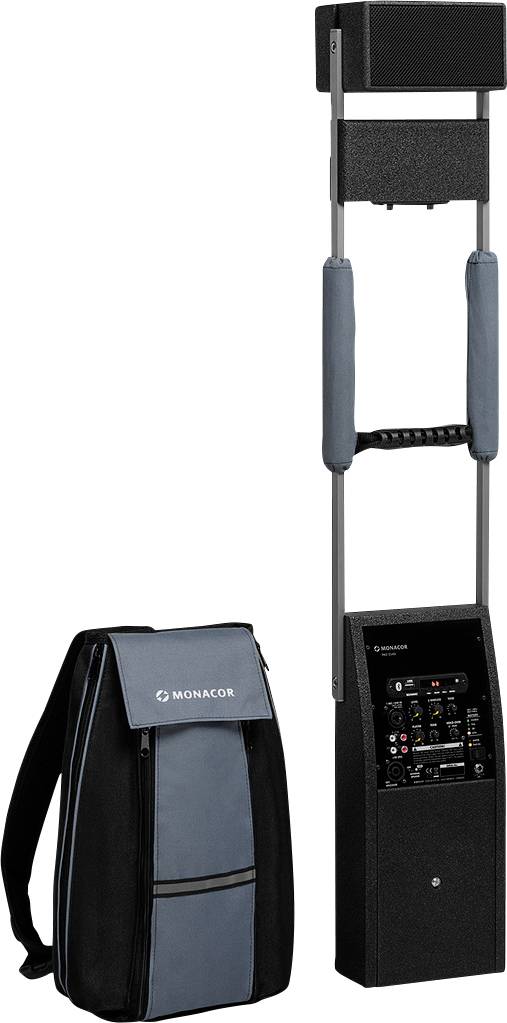

Monacor PAS-254D Portable PA system
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 8.6 kg
- Frequency range 80-20000 Hz
- Dimensions: Total length 120 cm
- Ass. Operating temperature 0-40 °C
- Weight: 7.7 kg.
- Inputs: 2 mV (Mic),14 mV (Line, jack), 80 mV (Line, RCA)
- Power supply: Rechargeable battery 12 V/7.2 Ah
- Nominal power (PRMS) 70 W
- Total output power: 80 W.
- Carrier frequency 863.1 - 864.9 MHz
- Range ≈ 100 m
- Max. Sound pressure 116 dB
- 1 x XLR (mic) ,1 x 6.3-mm jack (line),1 x RCA L/R (line in),1 x RCA L/R (line out),1 x USB, 1 x SPEAKER
- Link 300 mV
- Product type
Portable PA system
- Max. frequency
20000 Hz
- Min. frequency
80 Hz
- Interfaces
XLR in
6.3 mm jack in
RCA in
RCA out
- Weight
7.7 kg
- Length
1.2 m
- Max. audio capacity
80 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340939 Monacor PAS-254D Portable PA system
User & Safety Instructions
User & Safety Instructions 3340939 Monacor PAS-254D Portable PA system
Description
Portable amplifier system
For processions and other mobile uses

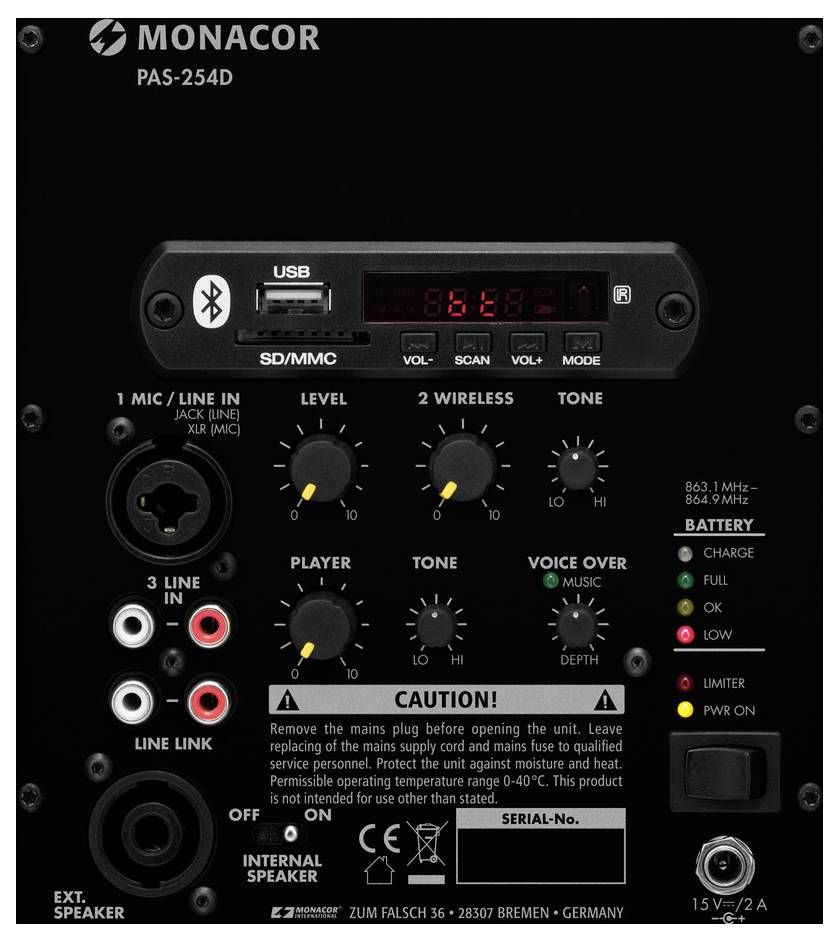

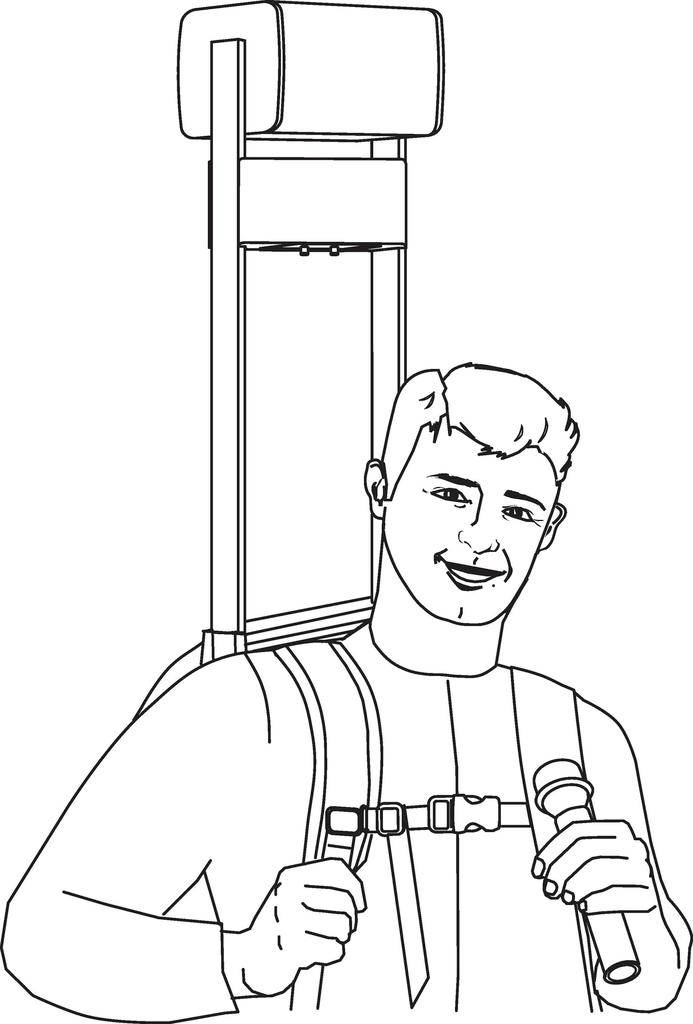

Very good wearing characteristics and freedom of movement thanks to the backpack principle 1 loudspeakers with 4 Chassis Class-D power amplifier Integrated 2-channel multi-frequency radio receiver (TXA-1822MR) Bluetooth receiver for the wireless connection of mobile players Controllable USB/SD-card player with connection for external storage media In-built lead-gel rechargeable battery 12 V/7.2 Ah (up to 7 hours operating time) Compartment for additional battery for extending the operating time Integrated battery charging system Charging socket for accompanying charger 1 input via combi-socket Mic(XLR)/Line(6.3 mm), gain controller, sound controller, Mic-input with 12-V phantom-feed 1 Stereo-Line input via cinch sockets, gain controller, sound control Mix-Out-Output (cinch) output for a loudspeaker (minimum impedance 4 Ω) Additionally or alternatively to your own loudspeakers Adjustable Voice Over function Limiter function Nylon backpack with pockets
Suitable microphone or pocket transmitters such as TXA-800HT and TXA-800HSE are available optionally.
No registration or charges required in the EU.
This text is machine translated.
For processions and other mobile uses
Very good wearing characteristics and freedom of movement thanks to the backpack principle 1 loudspeakers with 4 Chassis Class-D power amplifier Integrated 2-channel multi-frequency radio receiver (TXA-1822MR) Bluetooth receiver for the wireless connection of mobile players Controllable USB/SD-card player with connection for external storage media In-built lead-gel rechargeable battery 12 V/7.2 Ah (up to 7 hours operating time) Compartment for additional battery for extending the operating time Integrated battery charging system Charging socket for accompanying charger 1 input via combi-socket Mic(XLR)/Line(6.3 mm), gain controller, sound controller, Mic-input with 12-V phantom-feed 1 Stereo-Line input via cinch sockets, gain controller, sound control Mix-Out-Output (cinch) output for a loudspeaker (minimum impedance 4 Ω) Additionally or alternatively to your own loudspeakers Adjustable Voice Over function Limiter function Nylon backpack with pockets
Suitable microphone or pocket transmitters such as TXA-800HT and TXA-800HSE are available optionally.
No registration or charges required in the EU.
This text is machine translated.
Features
- POWER RATING (PRMS): 70 W.
- Output power
- Total: 80 W
- Frequency range 80-20000 Hz
- Carrier frequency 863.1 - 864.9 MHz
- Range ≈ 100 m
- Inputs: 2 mV (Mic),;14 mV (Line
- Jack),; 80 mV (Line
- RCA)
- Link 300 mV
- Max. Sound pressure 116 dB
- Power supply: Rechargeable battery 12 V/7.2 Ah
- Ass. Operating temperature 0-40 °C
- Dimensions: Total length 120 cm
- Weight: 7.7 kg.
- 1 x XLR (Mic),;1 x 6.3 mm jack (Line),;1 x RCA L/R (Line In),;1 x RCA L/R (Line Out),;1 x USB,;1 x SPEAKER
