Monacor RBT-56 Ribbon tweeter 10 W 4 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.035 kg
- Transmission technology: Cable

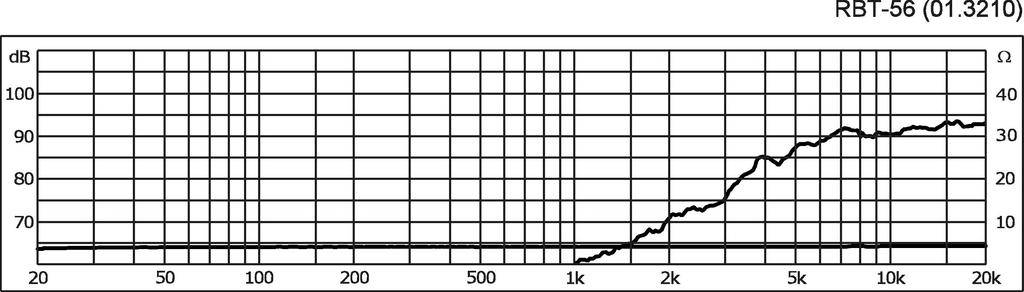

- Frequency range 5000-40000 Hz
- Nominal capacity (RMS) 10 W.
- Characteristic sound pressure 90 dB/W/m

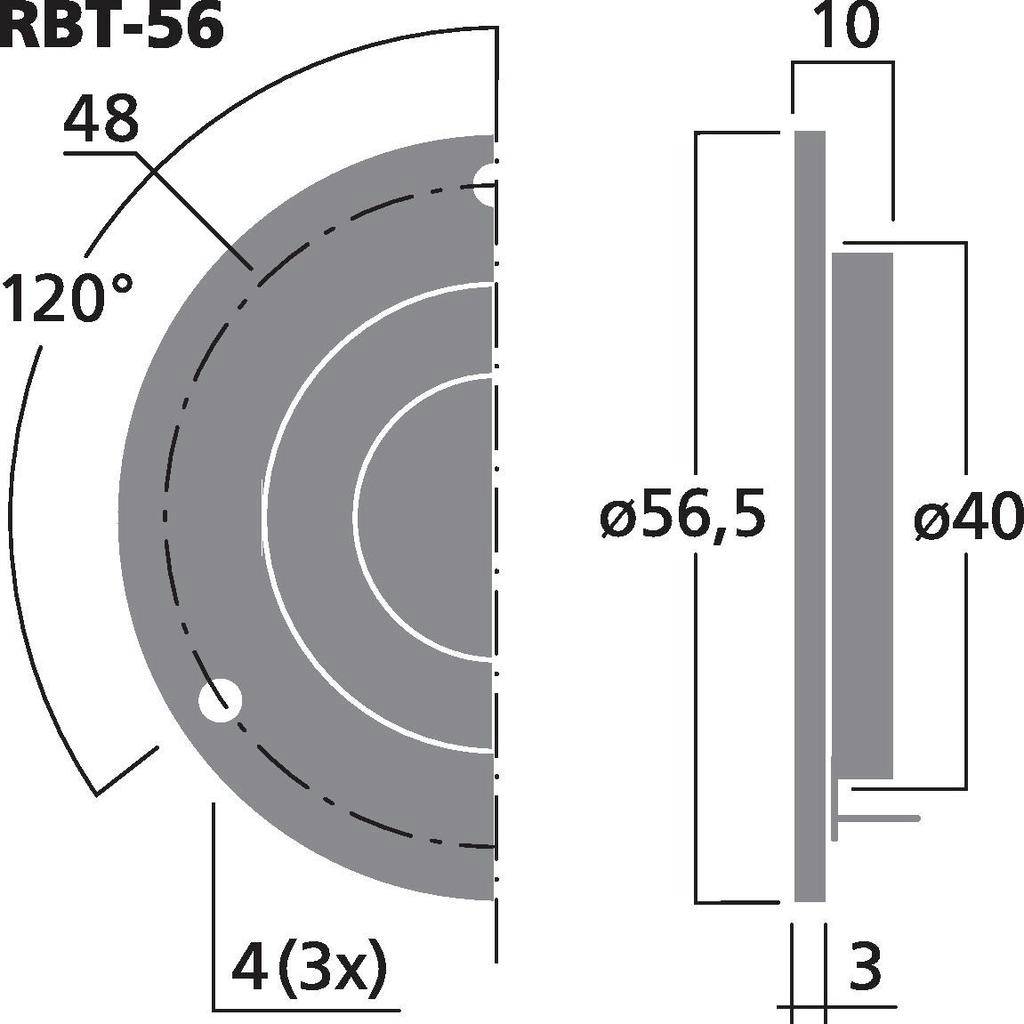

- Installation opening: 40 mm
- Installation depth: 10 mm
- Dimensions: 56.5 mm
- Outer diameter: 56.5 mm
- Width 56.5 mm
- Height: 56.5 mm
- Depth: 10 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.035 kg
- Gross weight: 0.045 kg
- Impedance (Z) 4 Ω
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):5000 Hz
- Music load capacity (MAX) 20 W
- Magnet diameter: Magnetostat
- Hole diameter 48 mm
- Direct current resistance (Re) 3.5 Ω
- Product type
Ribbon tweeter
- RMS capacity
10 W
- Max. load
20 W
- Min. frequency
5000 Hz
- Max. frequency
40 kHz
- Frequency range
5000 Hz - 40 kHz
- Sound pressure
90 dB
- Impedance
4 Ω
- Recess depth
10 mm
- Weight
35 g
- Factory colour
Black
- Length
10 mm
- Width
56.5 mm
- Height
56.5 mm
- (Ø)
56.5 mm
- Recess diameter
40 mm
Documents & Downloads
Datasheet
Datasheet 3340842 Monacor RBT-56 Ribbon tweeter 10 W 4 Ω
User & Safety Instructions
User & Safety Instructions 3340842 Monacor RBT-56 Ribbon tweeter 10 W 4 Ω
Description

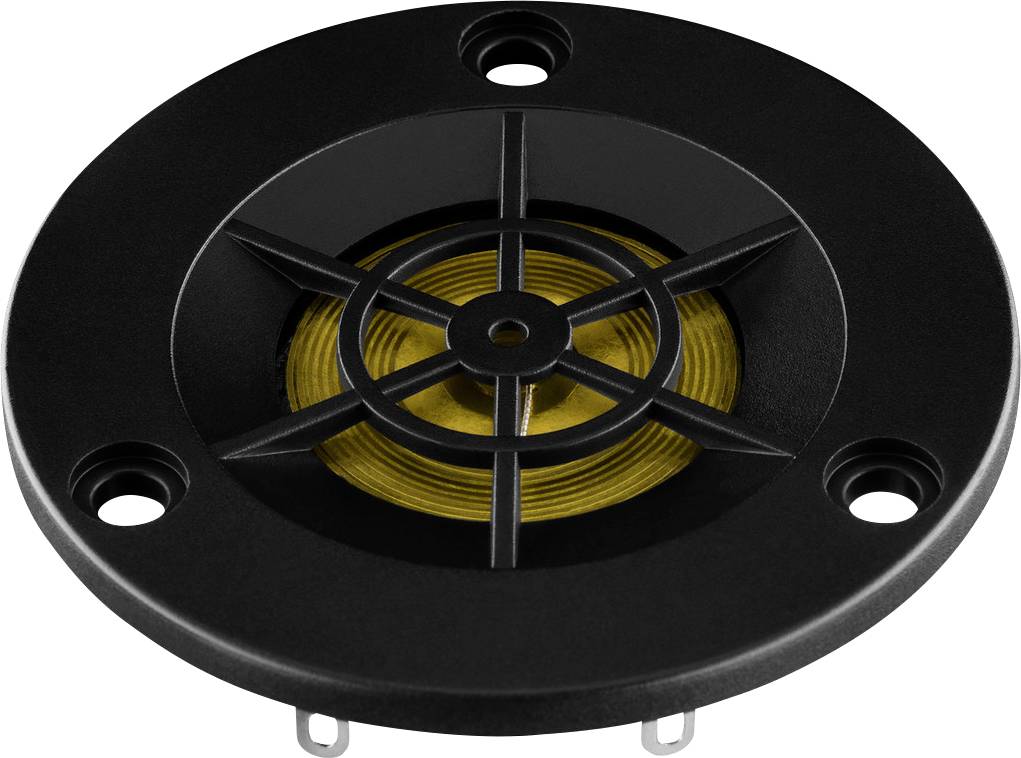

Hi-Fi tape tweeter, 10 W, 4 Ω
High-frequency magnet thermostat with small dimensions Neodymium magnet system Brilliant, precise high-tone playback Round foil membrane made of Kapton and aluminum Can be used from 5000 Hz Plastic front plate with sound diffuser
This text is machine translated.
High-frequency magnet thermostat with small dimensions Neodymium magnet system Brilliant, precise high-tone playback Round foil membrane made of Kapton and aluminum Can be used from 5000 Hz Plastic front plate with sound diffuser
This text is machine translated.
Features
- Impedance (Z) 4 Ω
- Transmission technology: Cable
- Frequency range 5000-40000 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):5000 Hz
- Nominal capacity (RMS) 10 W.
- Music load capacity (MAX) 20 W
- Characteristic sound pressure 90 dB/W/m
- Direct current resistance (Re): 3.5 Ω
- Mounting hole dia. 40 mm.
- Installation depth: 10 mm
- Hole diameter: Ø 48 mm
- Dimensions: 56.5 mm
- Outer diameter: Ø 56.5 mm
- Width: Ø 56.5 mm
- Height: Ø 56.5 mm
- Depth: 10 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.035 kg
- Packing: 1
- Packaging dimensions (W x H x L) 0.065 x 0.015 x 0.075 m
- Gross weight: 0.045 kg
- Net weight: 0.035 kg
