Monacor SA-100 Stereo amplifier 2 x 50 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 2.6 kg
- Frequency range 20-20000 Hz
- Width 212 mm
- Height: 56 mm
- Depth: 250 mm
- Ass. Operating temperature 0-40 °C
- Weight: 2.6 kg
- Gross weight: 3.11 kg
- Inputs: 140 mV/46 kΩ (PC, CD, Aux)140 mV/12 kΩ, 25 mV/32 kΩ (Player)
- Sound control Bass: ± 12 dB
- Power supply: " 230 V/50 Hz/150 VA
- Rated output: 50 W
- Power consumption operation 150 VA
- Total output power 2 x 50 W

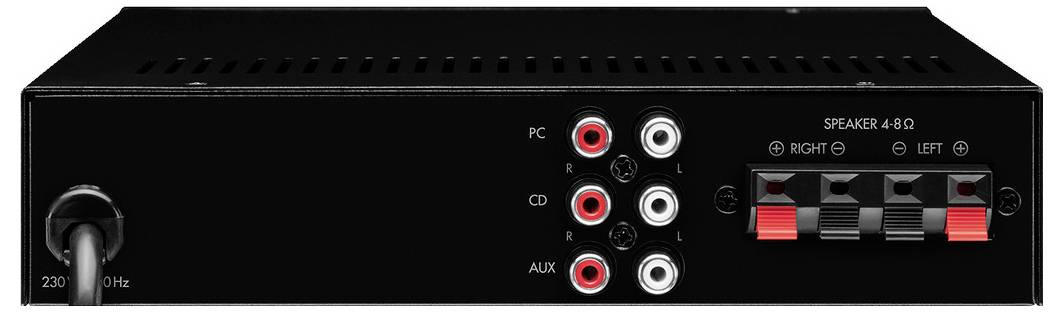

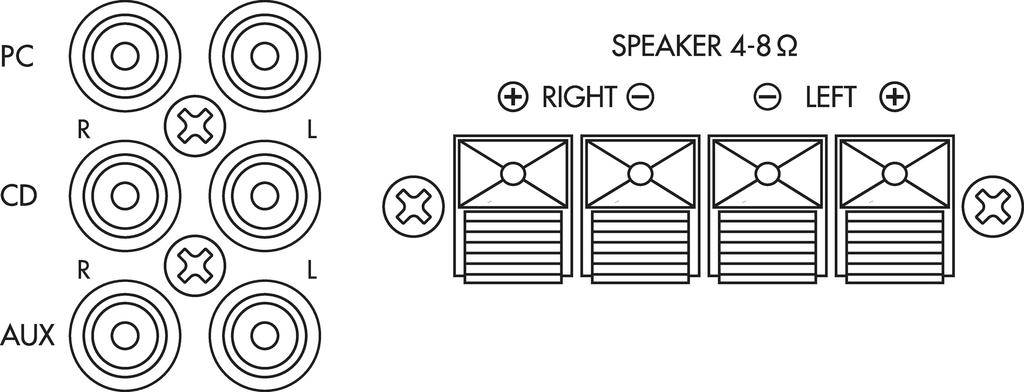

- Connections: 1 x RCA L/R (PC),1 x RCA L/R (CD),1 x RCA L/R (Aux),1 x 3.5 mm jack (Player),4 x LS clamp (speaker)
- Channels: 2
- Power at 4 Ω 2 x 25 W
- Sound control for trebles ± 12 dB
- Signal-to-noise ratio > 70 dB
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power at 8 Ω 2 x 20 W
- Product type
Stereo amplifier
- Output rating per channel
50 W
- Channels
2
- Frequency range
20-20000 Hz
- No. of line-ins
4 x
- Interfaces (output)
Clip terminal
- Interfaces (input)
RCA in
Jack connector
- Width
212 mm
- Height
56 mm
- Depth
250 mm
- Weight
2.6 kg
- Dim
(W x H x D) 212 x 56 x 250 mm
- Power supply (LOV)
via mains outlet
- Power per channel (4Ω)
25 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340716 Monacor SA-100 Stereo amplifier 2 x 50 W
User & Safety Instructions
User & Safety Instructions 3340716 Monacor SA-100 Stereo amplifier 2 x 50 W
Description
Compact Universal Stereo amplifier, 50 W

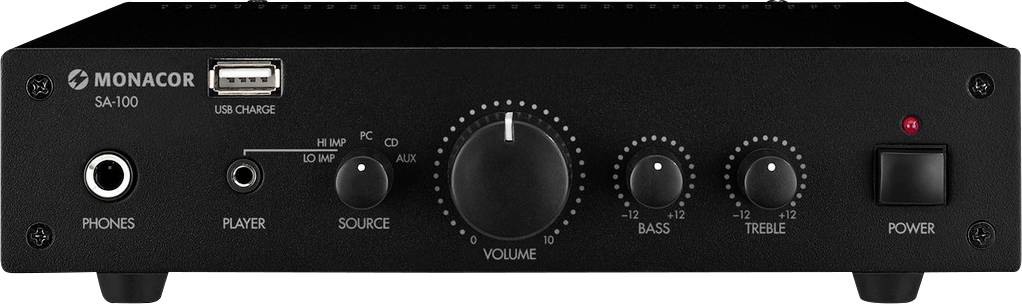

Silent operation through fan less cooling concept Additional 3.5-mm jack connection with switchable sensitivity on the front USB port on the front side for power supply and for charging external devices Audio source selector switch for volume, bass and treble 6.3-mm headphone output Robust metallic housing
This text is machine translated.
Silent operation through fan less cooling concept Additional 3.5-mm jack connection with switchable sensitivity on the front USB port on the front side for power supply and for charging external devices Audio source selector switch for volume, bass and treble 6.3-mm headphone output Robust metallic housing
This text is machine translated.
Features
- Output power
- Total 2 x 50 W
- Rated output: 50 W
- Power at 4 Ω 2 x 25 W
- Power at 8 Ω 2 x 20 W
- Channels: 2
- Inputs: 140 mV/46 kΩ (PC
- CDs
- Aux);140 mV/12 kΩ
- 25 mV/32 kΩ (player)
- Frequency range 20-20000 Hz
- Sound control Bass: ± 12 dB
- Sound control for trebles ± 12 dB
- Signal-to-noise ratio > 70 dB
- Power supply: " 230 V/50 Hz/150 VA
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power consumption operation 150 VA
- Ass. Operating temperature 0-40 °C
- Width 212 mm
- Height: 56 mm
- Depth: 250 mm
- Weight: 2.6 kg
- Connections: 1 x RCA L/R (PC),;1 x RCA L/R (CD),;1 x RCA L/R (Aux),;1 x 3.5 mm jack (player),;4 x LS terminal (speaker)
- Packaging dimensions (W x H x L) 0.315 x 0.105 x 0.315 m
- Gross weight: 3.11 kg
- Net weight: 2.6 kg
