Monacor SA-160BT Stereo amplifier 2 x 60 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.995 kg
- Frequency range 20-20000 Hz
- Width 150 mm
- Height: 49 mm
- Depth: 122 mm
- Ass. Operating temperature 0-40 °C
- Weight 610 g
- Gross weight: 1.26 kg
- Inputs 660 mV/10 kΩ
- Power supply: Via enclosed Mains adapter
- Rated output: 60 W
- Total output power 2 x 60 W
- Connections 1 x cinch L/R (line),4 x LS-clamp (loudspeaker)
- Channels: 2
- Signal-to-noise ratio > 99 dB(A)
- Power at 8 Ω 2 x 30 W
- Standby current 100 mA
- Product type
Stereo amplifier
- Output rating per channel
60 W
- Channels
2
- Frequency range
20-20000 Hz
- No. of line-ins
1 x
- Interfaces (output)
Clip terminal
- Interfaces (input)
RCA in
- Width
150 mm
- Height
49 mm
- Depth
122 mm
- Weight
610 g
- Dim
(W x H x D) 150 x 49 x 122 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340717 Monacor SA-160BT Stereo amplifier 2 x 60 W
User & Safety Instructions
User & Safety Instructions 3340717 Monacor SA-160BT Stereo amplifier 2 x 60 W
Description

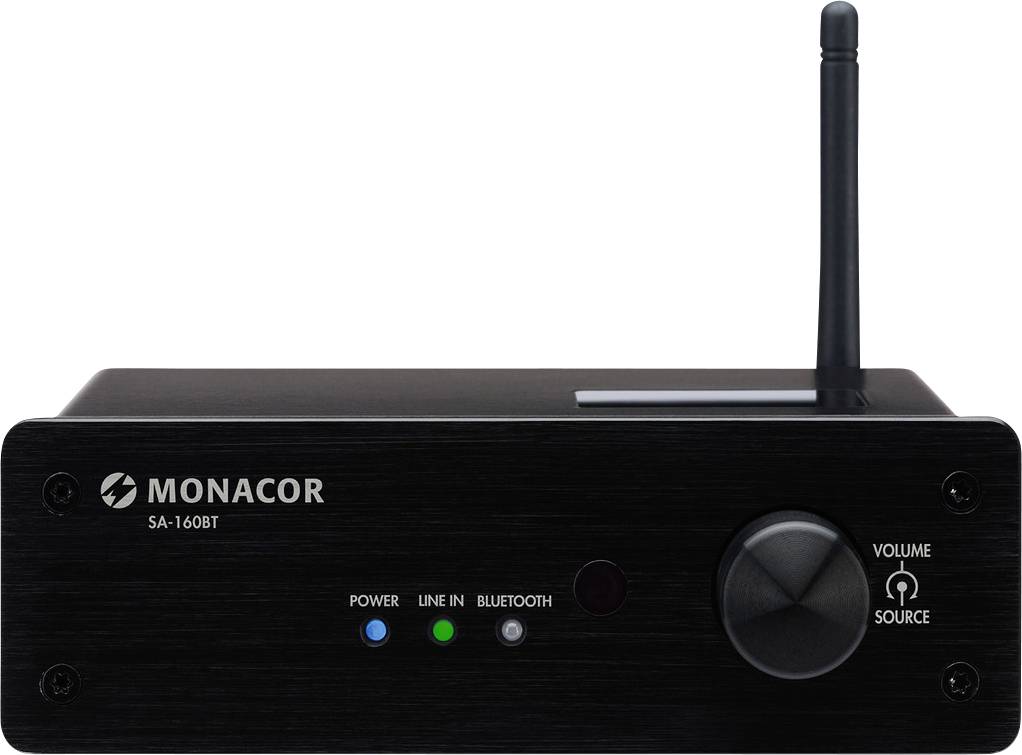

Mini stereo amplifier, 2 x 30 W
With Bluetooth interface, NFC and remote control

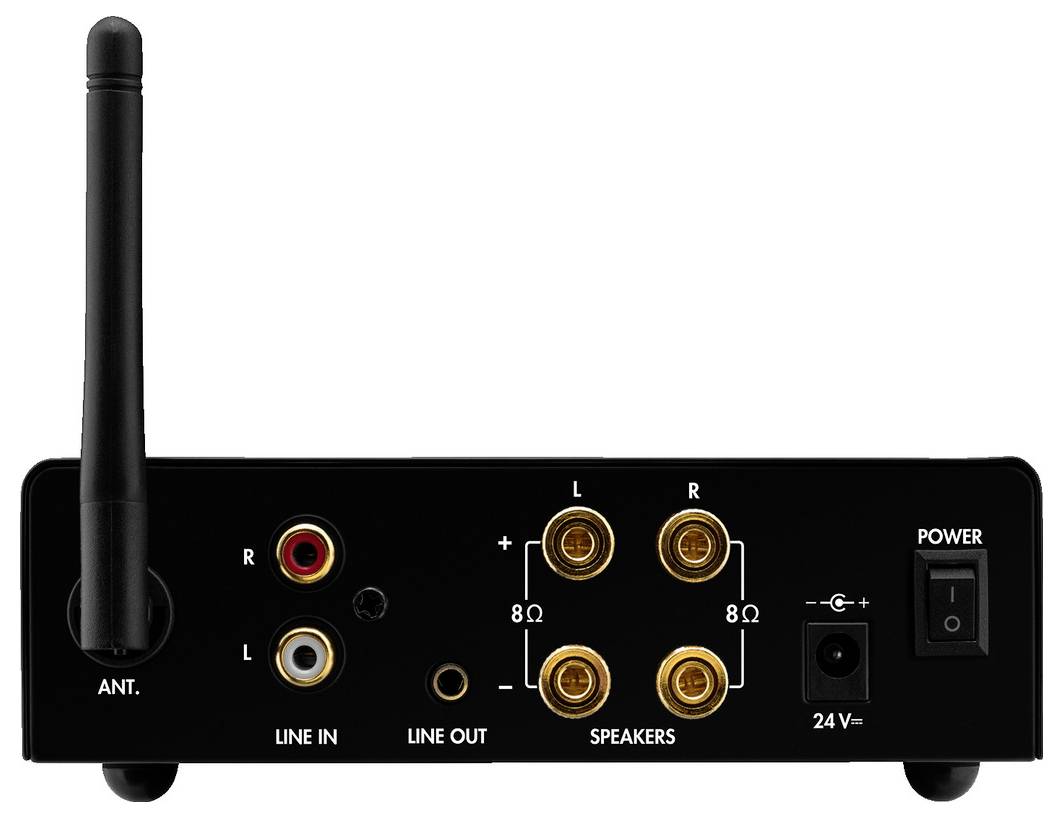

Integrated Hi-Fi audio amplifier For loudspeakers with 8 Ω Impedance Volume control with integrated source selection function, LED-display Close-field communication (NFC) Gold-plated loudspeaker terminals 1 Stereo input via phono-sockets L/R 1 Line output via 3.5-mm stereo-jack socket Fixed mounted antenna Metal housing Power supply via accompanying mains unit
This text is machine translated.
With Bluetooth interface, NFC and remote control
Integrated Hi-Fi audio amplifier For loudspeakers with 8 Ω Impedance Volume control with integrated source selection function, LED-display Close-field communication (NFC) Gold-plated loudspeaker terminals 1 Stereo input via phono-sockets L/R 1 Line output via 3.5-mm stereo-jack socket Fixed mounted antenna Metal housing Power supply via accompanying mains unit
This text is machine translated.
Features
- Output power
- Total 2 x 60 W
- Rated output: 60 W
- Power at 8 Ω 2 x 30 W
- Channels: 2
- Inputs 660 mV/10 kΩ
- Frequency range 20-20000 Hz
- Signal-to-noise ratio > 99 dB(A)
- Power supply: Via enclosed Mains adapter
- Standby current 100 mA
- Ass. Operating temperature 0-40 °C
- Width 150 mm
- Height: 49 mm
- Depth: 122 mm
- Weight 610 g
- Connections: 1 x cinch L/R (line),;4 x LS-clamp (loudspeaker)
- Packaging dimensions (W x H x L) 0.21 x 0.07 x 0.3 m
- Gross weight: 1.26 kg
- Net weight: 0.995 kg
