Monacor SA-200 Stereo amplifier 2 x 100 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 4.44 kg
- Frequency range 20-20000 Hz
- Width 431 mm
- Height: 55 mm
- Depth: 255 mm
- Ass. Operating temperature 0-40 °C
- Weight: 4.4 kg
- Gross weight: 4.89 kg
- Inputs 420 mV/6 kΩ
- Power supply: " 230 V/50 Hz/210 VA
- Rated output: 100 W
- Power consumption operation 210 VA
- Total output power 2 x 100 W

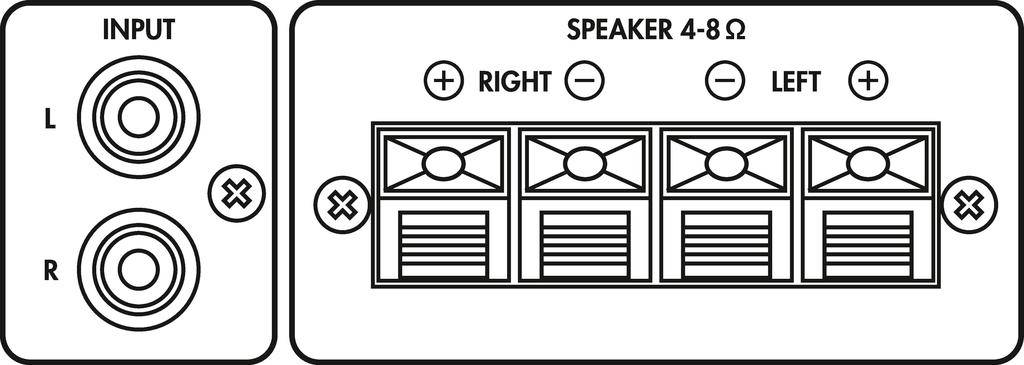

- Connections 1 x cinch L/R (line),4 x LS-clamp (loudspeaker)
- Channels: 2
- Height units HE 1
- Power at 4 Ω 2 x 50 W
- Signal-to-noise ratio > 83 dB
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power at 8 Ω 2 x 30 W
- Product type
Stereo amplifier
- Output rating per channel
100 W
- Channels
2
- Frequency range
20-20000 Hz
- No. of line-ins
1 x
- Interfaces (output)
Clip terminal
- Interfaces (input)
RCA in
- Width
431 mm
- Height
55 mm
- Depth
255 mm
- Weight
4.4 kg
- Dim
(W x H x D) 431 x 55 x 255 mm
- Rack unit
1 U
- Power supply (LOV)
via mains outlet
- Power per channel (4Ω)
50 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340714 Monacor SA-200 Stereo amplifier 2 x 100 W
User & Safety Instructions
User & Safety Instructions 3340714 Monacor SA-200 Stereo amplifier 2 x 100 W

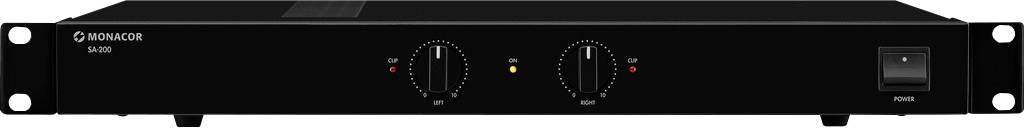

Description
Universal stereo amplifier, 100 W
Silent operation by fan less cooling concept Stereo line input Speaker connection via terminal strip LEDs for overload (clip) Controller for volume 482 mm rack installation (19"), 1 HE, with provided mounting brackets
This text is machine translated.
Silent operation by fan less cooling concept Stereo line input Speaker connection via terminal strip LEDs for overload (clip) Controller for volume 482 mm rack installation (19"), 1 HE, with provided mounting brackets
This text is machine translated.
Features
- Output power
- Total 2 x 100 W
- Rated output: 100 W
- Power at 4 Ω 2 x 50 W
- Power at 8 Ω 2 x 30 W
- Channels: 2
- Inputs 420 mV/6 kΩ
- Frequency range 20-20000 Hz
- Signal-to-noise ratio > 83 dB
- Power supply: " 230 V/50 Hz/210 VA
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power consumption operation 210 VA
- Ass. Operating temperature 0-40 °C
- Width 431 mm
- Height: 55 mm
- Depth: 255 mm
- Height units HE 1
- Weight: 4.4 kg
- Connections: 1 x cinch L/R (line),;4 x LS-clamp (loudspeaker)
- Packaging dimensions (W x H x L) 0.335 x 0.11 x 0.46 m
- Gross weight: 4.89 kg
- Net weight: 4.44 kg
