Monacor SA-50 Stereo amplifier 2 x 25 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.85 kg
- Frequency range 20-20000 Hz
- Width 212 mm
- Height: 56 mm
- Depth: 200 mm
- Ass. Operating temperature 0-40 °C
- Weighs 1.8 kg
- Gross weight: 2.18 kg
- Inputs: 115 mV/12 kΩ (PC ),115 mV/12 kΩ (CD),115 mV/12 kΩ (Aux),115 mV/12 kΩ ( Player, high),20 mV/32 kΩ (Player, low)
- Sound control Bass: ± 12 dB
- Power supply: " 230 V/50 Hz/50 VA
- Rated output: 25 W
- Power consumption operation 50 VA
- Total output power 2 x 25 W

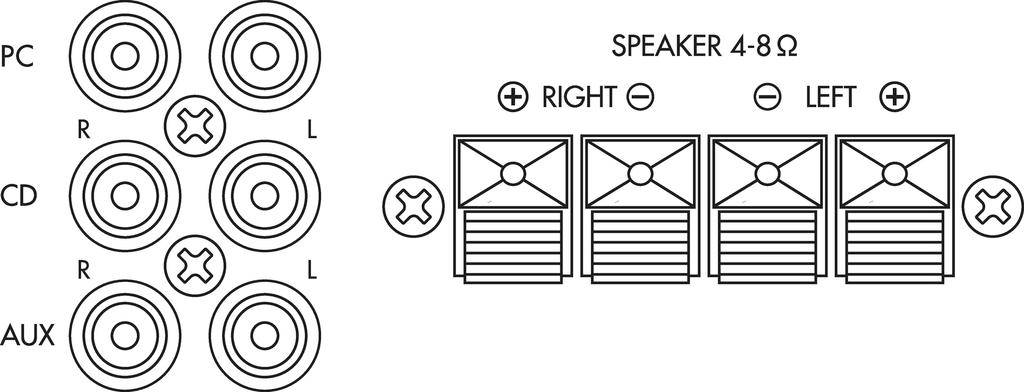

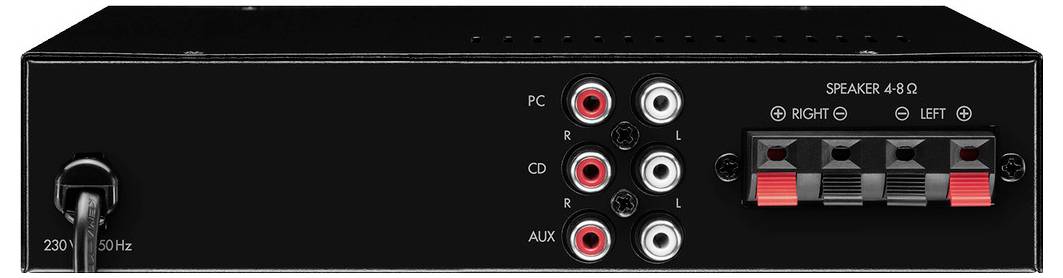

- Connections: 1 x RCA L/R (PC),1 x RCA L/R (CD),1 x RCA L/R (Aux),1 x 3.5 mm jack (Player),4 x LS clamp (speaker)
- Channels: 2
- Power at 4 Ω 2 x 12.5 W
- Sound control for trebles ± 12 dB
- Signal-to-noise ratio > 65 dB
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power at 8 Ω 2 x 10 W
- Product type
Stereo amplifier
- Output rating per channel
25 W
- Channels
2
- Frequency range
20-20000 Hz
- No. of line-ins
4 x
- Interfaces (output)
Clip terminal
- Interfaces (input)
RCA in
Jack connector
- Width
212 mm
- Height
56 mm
- Depth
200 mm
- Weight
1.8 kg
- Dim
(W x H x D) 212 x 56 x 200 mm
- Power supply (LOV)
via mains outlet
- Power per channel (4Ω)
12.5 W
Documents & Downloads
Datasheet
Datasheet 3340715 Monacor SA-50 Stereo amplifier 2 x 25 W
User & Safety Instructions
User & Safety Instructions 3340715 Monacor SA-50 Stereo amplifier 2 x 25 W
Description
Compact Universal Stereo amplifier, 25 W

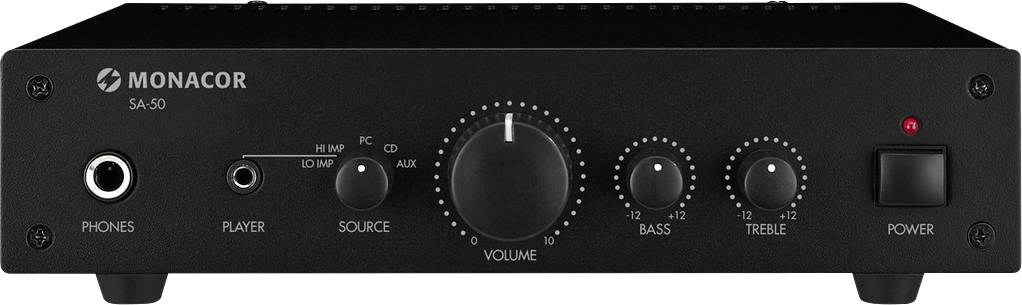

Silent operation by fan less cooling concept Additional 3.5-mm jack connection with switchable sensitivity on the front Audio source switch Controller for volume, bass and treble 6.3-mm headphone output Robust metallic housing
This text is machine translated.
Silent operation by fan less cooling concept Additional 3.5-mm jack connection with switchable sensitivity on the front Audio source switch Controller for volume, bass and treble 6.3-mm headphone output Robust metallic housing
This text is machine translated.
Features
- Output power
- Total 2 x 25 W
- Rated output: 25 W
- Power at 4 Ω 2 x 12.5 W
- Power at 8 Ω 2 x 10 W
- Channels: 2
- Inputs: 115 mV/12 kΩ (PC),;115 mV/12 kΩ (CD),;115 mV/12 kΩ (Aux),;115 mV/12 kΩ (Player
- High),;20 mV/32 kΩ (player
- low)
- Frequency range 20-20000 Hz
- Sound control Bass: ± 12 dB
- Sound control for trebles ± 12 dB
- Signal-to-noise ratio > 65 dB
- Power supply: " 230 V/50 Hz/50 VA
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power consumption operation 50 VA
- Ass. Operating temperature 0-40 °C
- Width 212 mm
- Height: 56 mm
- Depth: 200 mm
- Weighs 1.8 kg
- Connections: 1 x RCA L/R (PC),;1 x RCA L/R (CD),;1 x RCA L/R (Aux),;1 x 3.5 mm jack (player),;4 x LS terminal (speaker)
- Packaging dimensions (W x H x L) 0.21 x 0.057 x 0.21 m
- Gross weight: 2.18 kg
- Net weight: 1.85 kg
