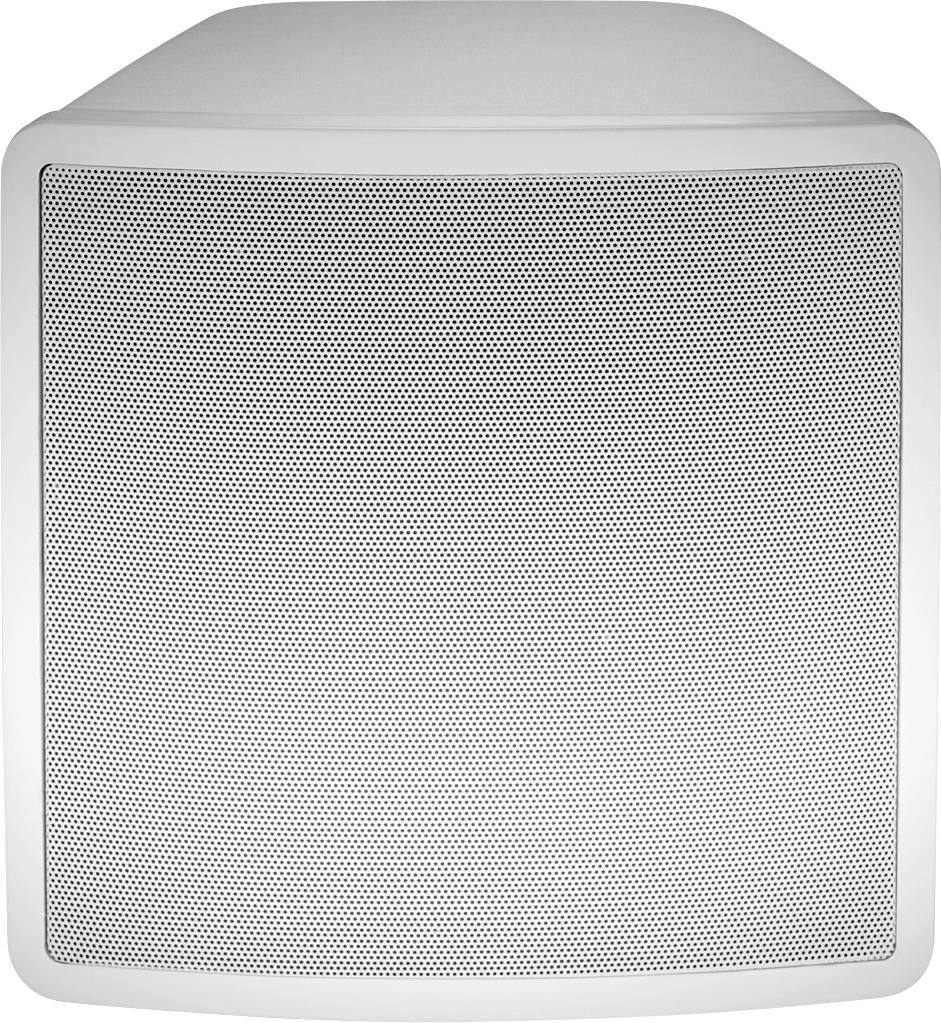

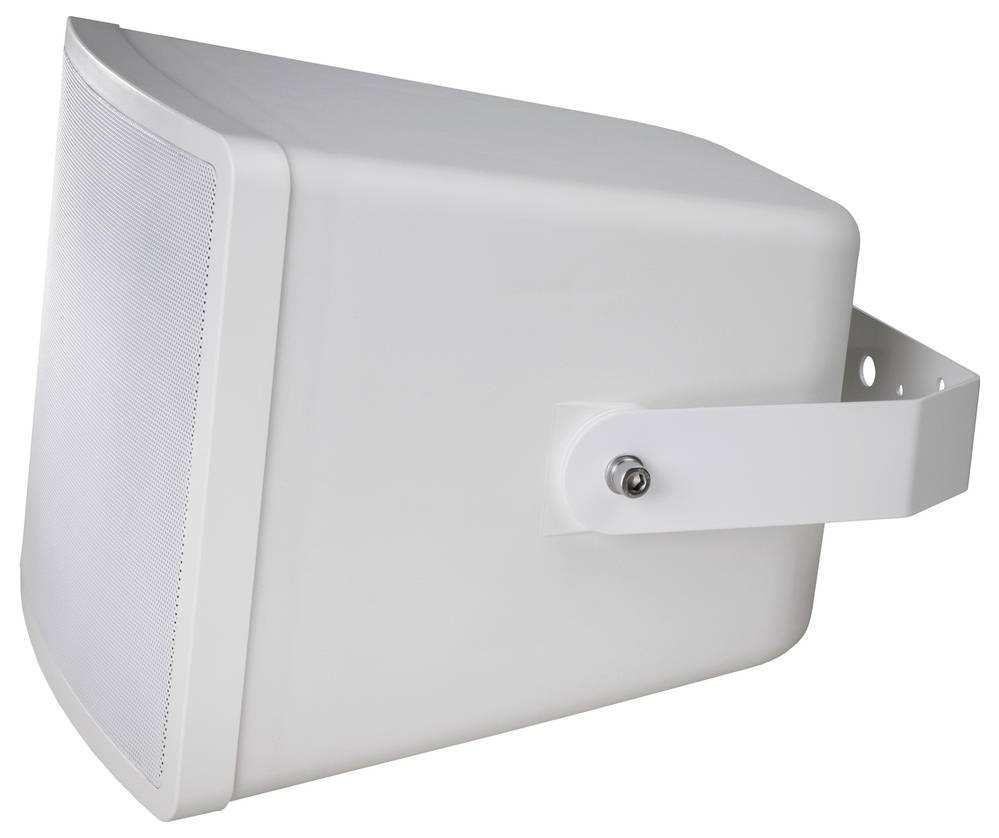

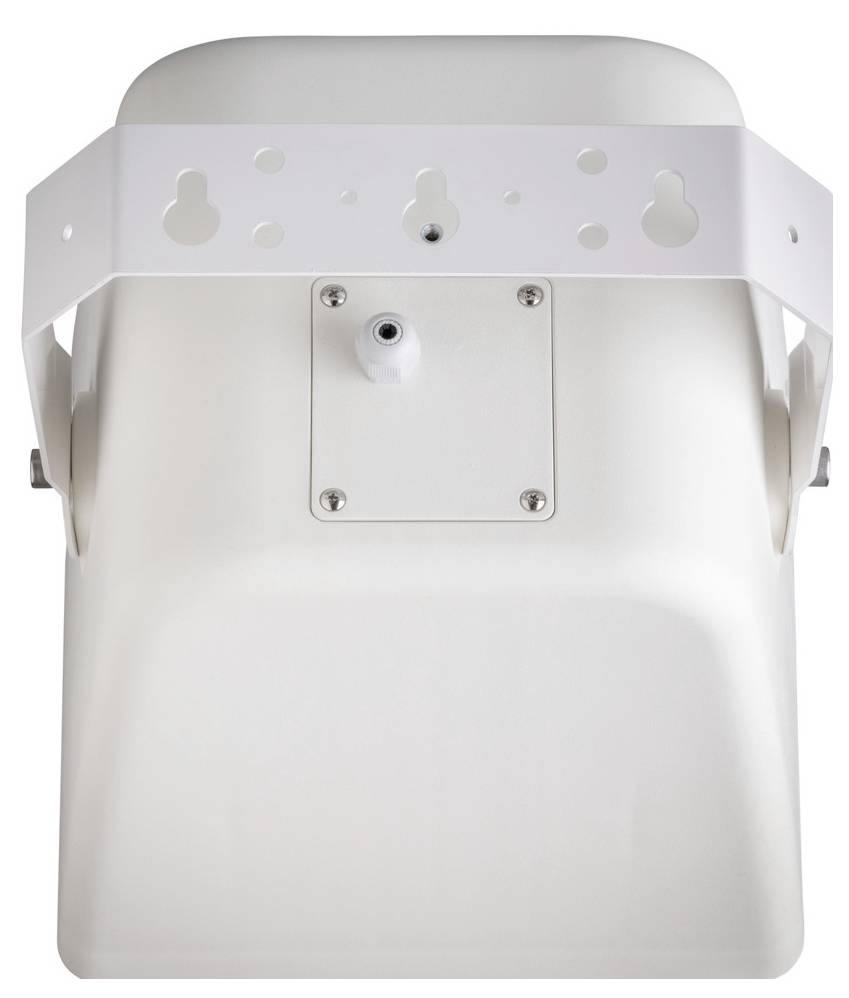

Monacor SL-150WS/EN PA speaker cabinet 150 W White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 11.85 kg
- 100 V or low impedance transmission technology
- Frequency range 90-19000 Hz
- Characteristic sound pressure 98 dB/W/m
- Dimensions 315 x 305 x 350 mm
- Width 315 mm
- Height: 305 mm
- Depth: 350 mm
- Colour: White
- Ass. Operating temperature -25 °C to +70 °C
- Weight: 11.85 kg
- Gross weight: 13.9 kg
- Max. Nominal sound pressure 120 dB
- Inputs: Screw terminal
- Angle of radiation H80°/V80°
- Impedance: 8 Ω
- Angle of radiation horizontal 80°
- Angle of radiation vertical 80°
- Active/passive: Passive
- 2-way coaxial
- ABS casing material
- Nominal load 150/75/38 W
- Total load capacity 150 W.
- 8" (20 cm) Woofer
- Number of built-in LS chassis: 2
- Speaker size 20 cm (8")
- Mounting unit: Mounting bracket
- IP66 protection rating
- Tweeter: Tweeter driver
- Product type
PA speaker cabinet
- Operating voltage
100 V
- RMS capacity
150 W
- Max. load
150 W
- Impedance
8 Ω
- Max. sound pressure
120 dB
IP66
- Material
Acrylonitrile butadiene styrene
- Length
35 mm
- Width
31.5 mm
- Content
1 pc(s)
- Weight
11.85 kg
- Factory colour
White
- Height
30.5 mm
- Sound pressure
98 dB
- Frequency range
90-19000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340500 Monacor SL-150WS/EN PA speaker cabinet 150 W White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340500 Monacor SL-150WS/EN PA speaker cabinet 150 W White 1 pc(s)
Description
Weatherproof PA speaker box, 150 W,
With EN-54-24 certification
100-V transmission technology or 8 Ω operation 2-way bass reflex system 20 cm coaxial loudspeaker (8") with tweeter driver and frequency separating filter Very good sound characteristics IP66-tested ABS-casing with metallic protection grille countersunk connection terminal plate and PG-cable bushing Safety cable in the scope of supply Wall bracket made of stainless steel
This text is machine translated.
With EN-54-24 certification
100-V transmission technology or 8 Ω operation 2-way bass reflex system 20 cm coaxial loudspeaker (8") with tweeter driver and frequency separating filter Very good sound characteristics IP66-tested ABS-casing with metallic protection grille countersunk connection terminal plate and PG-cable bushing Safety cable in the scope of supply Wall bracket made of stainless steel
This text is machine translated.
Features
- Active/passive: Passive
- 100 V or low impedance transmission technology
- Load capacity
- Total: 150 W
- Nominal load 150/75/38 W
- Impedance: 8 Ω
- Frequency range 90-19000 Hz
- 2-way coaxial
- 8" (20 cm) Woofer
- Tweeter: Tweeter driver
- Number of built-in LS chassis: 2
- Speaker size 20 cm (8")
- Characteristic sound pressure 98 dB/W/m
- Max. Nominal sound pressure 120 dB
- Angle of radiation H80°/V80°
- Angle of radiation horizontal 80°
- Angle of radiation vertical 80°
- ABS casing material
- Colour: White
- Mounting unit: Mounting bracket
- IP66 protection rating
- Ass. Operating temperature -25 °C to +70 °C
- Dimensions 315 x 305 x 350 mm
- Width 315 mm
- Height: 305 mm
- Depth: 350 mm
- Weight: 11.85 kg
- Inputs: Screw terminal
- Packaging dimensions (W x H x L) 0.39 x 0.41 x 0.39 m
- Gross weight: 13.9 kg
- Net weight: 11.85 kg
