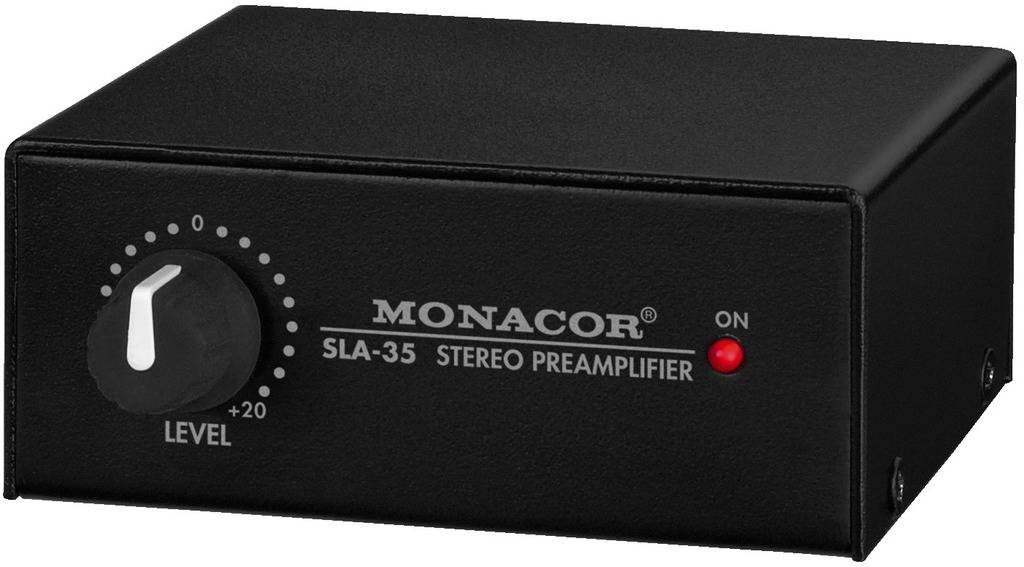

Monacor SLA-35 Preamplifier Preamplifier
EAN:
Part number:
Item no:
Technical specifications
- Frequency range: 3-50000 Hz, -1 dB
- Input voltage: max. ±7 V
- Output voltage: Max. 4.5 V
- Input impedance: 35 kOhm/8.1 kOhm (Switch -5.6 dB)
- Output impedance: 1.6 kOhm
- Amplification Factor: 0.1-10(+/-20 dB) is continuously adjustable, in addition -5.6 dB, switchable
- Harmonic distortion:
- 68 dB
- Signal-to-noise ratio:> 83 dB
- Power supply: via suppl. Power supply
- Dimensions: 88 x 37 x 103 mm
- Weight: 450 g
- Product type
Preamplifier
n.rel.
- Dim
(L x W x H) 103 x 88 x 37 mm
- Width
88 mm
- Height
37 mm
- Length
103 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332547 Monacor SLA-35 Preamplifier Preamplifier
Description
Features
- Stereo level and impedance transformers when connecting smart phones, mobile phones, tablet PCs and MP3-players on an amplifier or mixer can be volume distortion or-loss. Through the correct setting of the impedance and amplification of the SLA-35 provides a better sound
- Adjustable attenuation up to 1/10 (-20 dB) or Amplification up to 10 times (+20 dB)
- Impedance switch Hi/Lo
- Phono and 3.5-mm stereo jack inputs and outputs
- Metal housing
- Delivery including power supply tools 4 music 04/2013 a fine device to complement the tool case. Equipped with the required connections as well as the volume control with well-dimensioned amplification is the MONACOR SLA-35a helper for level adjustment. The processing is solid and service-friendly. Thanks to its excellent signal-to-noise ratio and the wide frequency range makes the SLA-35 next to the actually intended task as simple level plate and impedance transformers for high-end 'Edel-Hi-Fi'." purist Key world 04/2013" with the SLA-35 are also smartphones as an audio source on the mixer welcome, because the level / Impedance converter provides optimal signals. The result is a totally clean signals, the clipping on the one hand and noise on the other side. First-class processed!" "A great tool for the Generation Event Rookie 03/2013 Smartphone - the method employed is brilliantly simple and ingenious - via the rotary knob on the front panel, the input signal can be attenuated or amplified by a maximum of 20 dB and either a oversteer the following mixing desk and thus prevents clipping or understeer, connected with controller audibly snaps into place noise.
- This text is machine translated.
