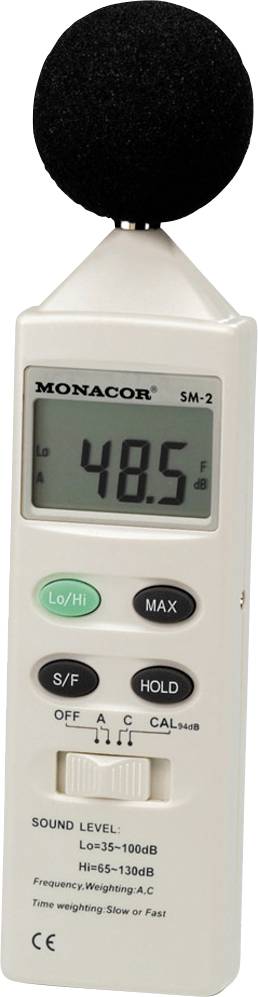

Monacor Sound level meter SM-2 35 - 100 dB 31.5 Hz - 8000 Hz Jack socket 3.5 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.525 kg
- Frequency range 31,5-8000 Hz
- Dimensions 63 x 253 x 30 mm
- Ass. Operating temperature 0-40 °C
- Weight: 250 g
- Power supply: 9 V Block (not included)
- Resolution 0.1 dB
- Display: 3½-digit, LCD 17mm
- Measuring range, Low 35-100 dB
- Measuring range, high 65-130 dB
- Accuracy ±1.5 dB (94 dB/1 kHz)
- Output V": Low: 38 mV/dB, 100 Ωhigh: 8.3 mV/dB, 100 Ω
- Output V DC 10 mV/dB, 100 Ω
- Product type
Sound level meter
- Reading type
SPL
- SPL resolution
0.1 dB
- dB (A) SPL reading range (max.)
100 dB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 253 x 30 x 63 mm
- Display
LCD
- Max. frequency
8000 Hz
- Min. frequency
31.5 Hz
- Frequency range
31.5 Hz - 8000 Hz
- dB (A) accuracy
0.1 dB
- dB (C) accuracy
0.1 dB
- Weight
250 g
- dB SPL (A) reading range
35 - 100 dB
- dB (A) SPL reading range (min.)
35 dB
- dB (C) SPL reading range (max.)
65 - 130 dB
- dB (C) SPL reading range (max.)
130 dB
- dB SPL (C) reading range (min.)
65 dB
- Width
30 mm
- Height
63 mm
- Length
253 mm
- Interfaces
Jack socket 3.5 mm
Documents & Downloads
Datasheet
Datasheet 3340512 Monacor Sound level meter SM-2 35 - 100 dB 31.5 Hz - 8000 Hz Jack socket 3.5 mm
User & Safety Instructions
User & Safety Instructions 3340512 Monacor Sound level meter SM-2 35 - 100 dB 31.5 Hz - 8000 Hz Jack socket 3.5 mm
Description
Sound level meter
(Class 2), one-handed operation
Elektret microphone capsule Max-Hold- and Data-Hold-Function A- and C-evaluation, slow and almost additional output for DC/" V via 3.5-mm jack socket Delivery with practical nylon carry bag
This text is machine translated.
(Class 2), one-handed operation
Elektret microphone capsule Max-Hold- and Data-Hold-Function A- and C-evaluation, slow and almost additional output for DC/" V via 3.5-mm jack socket Delivery with practical nylon carry bag
This text is machine translated.
Features
- Display: 3½-digit
- LCD 17 mm
- Frequency range 31,5-8000 Hz
- Reading range
- Low 35-100 dB
- Reading range
- High 65-130 dB
- Resolution 0.1 dB
- Accuracy ±1.5 dB (94 dB/1 kHz)
- Output V": Low 38 mV/dB
- 100 Ω;high:8.3 mV/dB
- 100 Ω
- Output V DC 10 mV/dB
- 100 Ω
- Ass. Operating temperature 0-40 °C
- Power supply: 9 V Block (not included)
- Dimensions 63 x 253 x 30 mm
- Weight: 250 g
