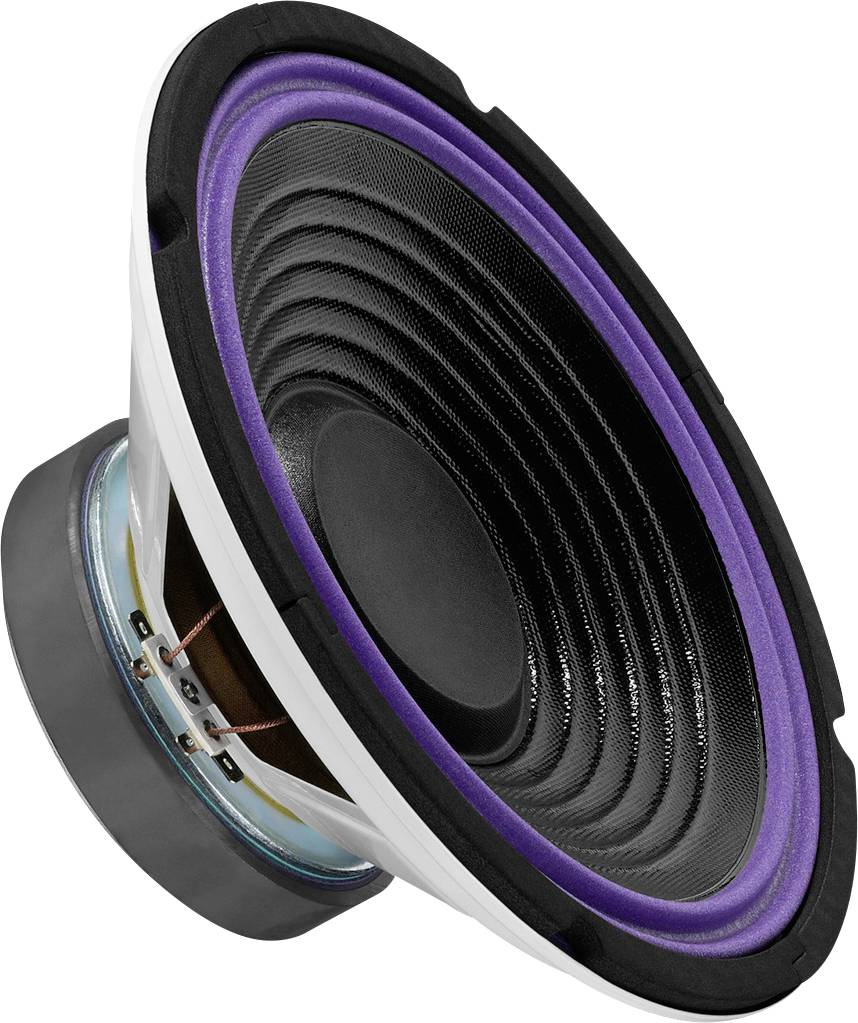

Monacor SP-252C 10 inch Subwoofer 100 W 4 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 2.4 kg
- Transmission technology: Cable

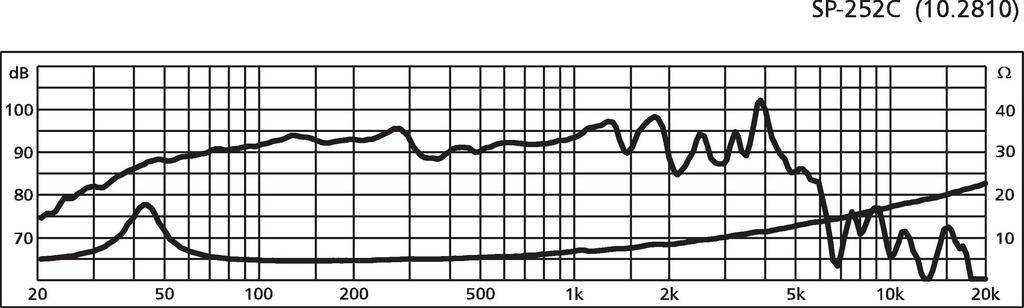

- Frequency range f3-3500 Hz
- Nominal capacity (RMS) 100 W.
- Characteristic sound pressure 93 dB/W/m

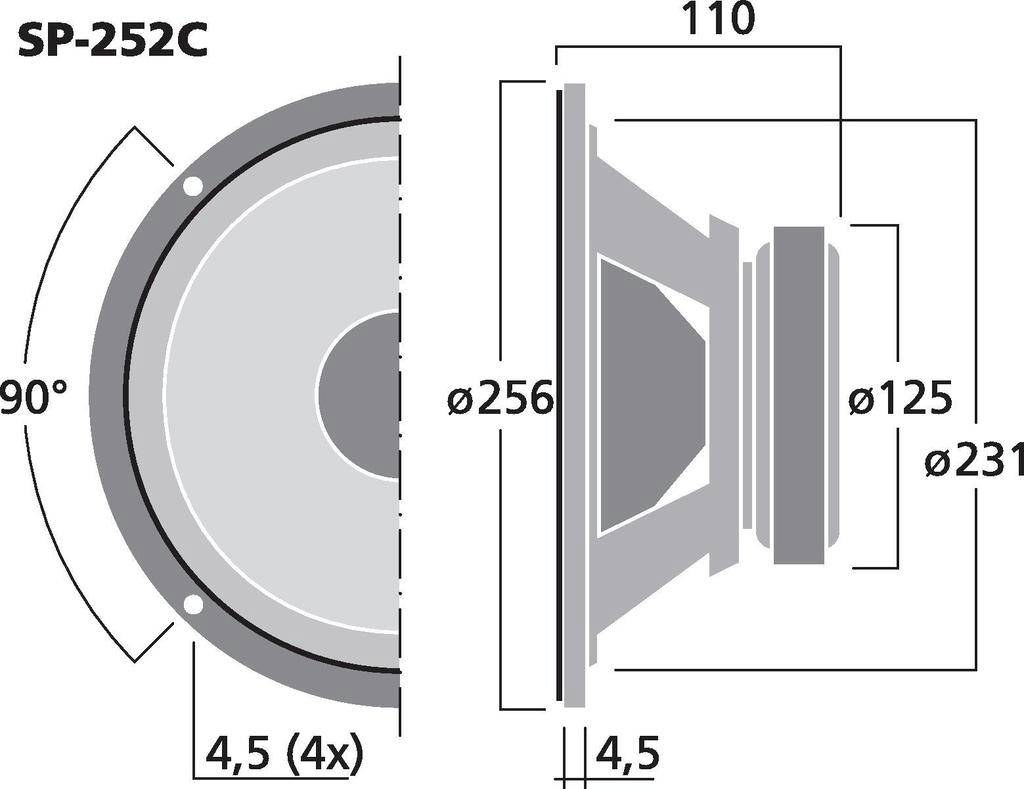

- Installation opening: 231 mm
- Installation depth: 110 mm
- Dimensions 256 x 110 mm
- Outer diameter: 256 mm
- Width 256 mm
- Height: 256 mm
- Depth: 110 mm
- Colour: Black/purple
- Ass. Operating temperature 0-40 °C
- Weight: 2.4 kg.
- Speaker type 10"
- Gross weight: 2.61 kg
- Impedance (Z) 4 Ω
- Resonant frequency (fs): 35 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2000 Hz
- Music load capacity (MAX) 200 W
- Voice coil diameter 39 mm
- Magnet diameter 125 mm
- Suspension compliance (Cms) 0.55 mm / N
- Moving mass (MMS): 38 g
- Mechanical quality (QMS): 3.15
- Electrical quality (QES): 0.47
- Overall quality (Qts): 0.41
- Equivalent volume (Vas): 96 l
- Direct current resistance (Re) 3.7 Ω
- Power factor (WxL) 8.08 Tm
- Voice coil former (Le):0.4 mH
- Voice coil former: Aluminium
- Linear deflection (XMAX): ± 5 mm
- Effective Membrane area (SD): 353 cm2
- Magnet weight: 850 g
- Product type
Subwoofer
- Speaker size (inch)
10 inch
- RMS capacity
100 W
- Max. load
200 W
- Max. frequency
3500 Hz
- Impedance
4 Ω
- Sound pressure
93 dB
- Recess diameter
23.1 cm
- Recess depth
11 cm
- Weight
2.4 kg
- Factory colour
Black
Purple
- Frequency range
3500 Hz (max)
- Depth
11 cm
- Height
25.6 cm
- Width
25.6 cm
Documents & Downloads
Datasheet
Datasheet 3340844 Monacor SP-252C 10 inch Subwoofer 100 W 4 Ω
User & Safety Instructions
User & Safety Instructions 3340844 Monacor SP-252C 10 inch Subwoofer 100 W 4 Ω
Description
Car Hi-Fi woofer, 100 W, 4 Ω
25 cm woofer (10") Coated membrane Also for the bass supplement in the free-air use Exposed lower pole plate for large long stroke
This text is machine translated.
25 cm woofer (10") Coated membrane Also for the bass supplement in the free-air use Exposed lower pole plate for large long stroke
This text is machine translated.
Features
- Impedance (Z) 4 Ω
- Transmission technology: Cable
- Frequency range f3-3500 Hz
- Resonance frequency (fs): 35 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2000 Hz
- Nominal capacity (RMS) 100 W.
- Music load capacity (MAX) 200 W
- Characteristic sound pressure 93 dB/W/m
- Suspension (Cms): 0.55 mm/N
- Moving earth (Mms): 38 g
- Mechanical quality (Qms): 3.15
- Electrical quality (QES): 0.47
- Overall quality (Qts): 0.41
- Equivalent volume (Vas): 96 l
- Direct current resistance (Re): 3.7 Ω
- Power factor (WxL) 8.08 Tm
- Voice coil former (Le): 0.4 mH
- Voice coil diameter: Ø 39 mm
- Voice coil former: Aluminium
- Linear deflection (XMAX): ± 5 mm
- Effective Membrane area (Sd): 353 cm²
- Magnet weight: 850 g
- Magnet diameter: Ø 125 mm
- Mounting hole dia. 231 mm.
- Installation depth: 110 mm
- Dimensions: Ø 256 mm x 110 mm
- Outer diameter: Ø 256 mm
- Width: Ø 256 mm
- Height: Ø 256 mm
- Depth: 110 mm
- Colour: Black/purple
- Ass. Operating temperature 0-40 °C
- Weight: 2.4 kg.
- Packing: 1
- Speaker type 10"
- Packaging dimensions (W x H x L) 0.265 x 0.125 x 0.265 m
- Gross weight: 2.61 kg
- Net weight: 2.4 kg
