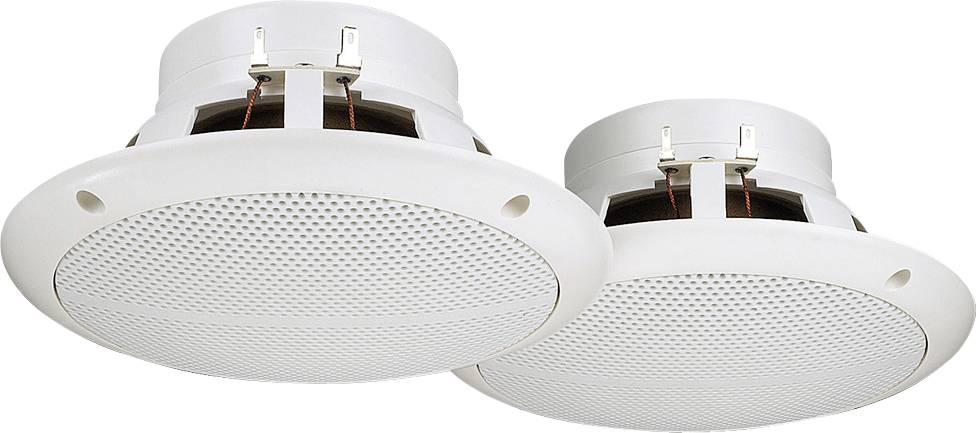

Monacor SPE-265/WS Flush mount speaker 60 W 8 Ω White 1 Pair
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.735 kg
- Transmission technology: Cable
- Frequency range 80-20000 Hz
- Nominal capacity (RMS) 30 W.
- Characteristic sound pressure 87 dB/W/m

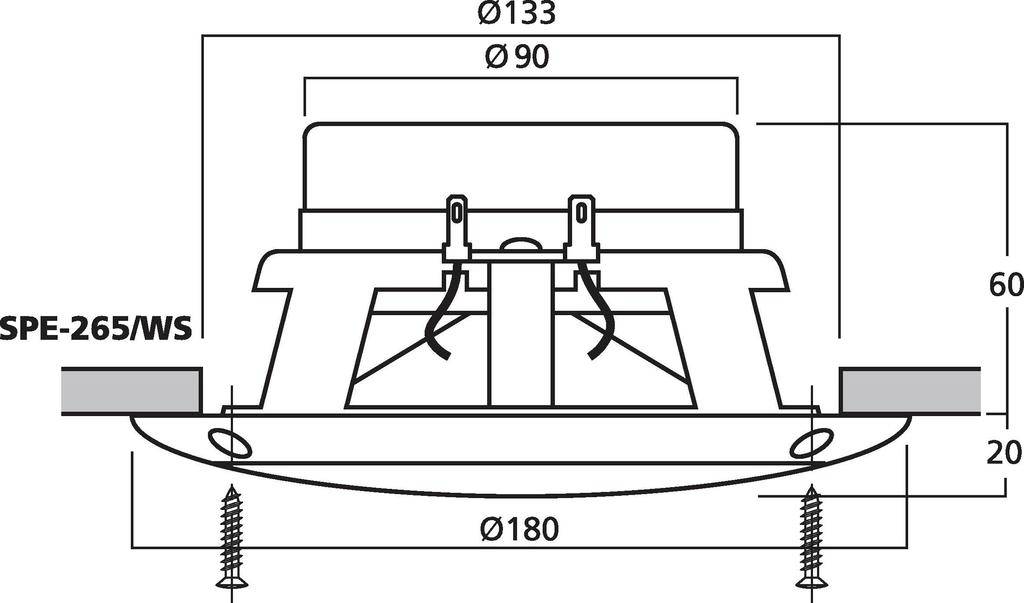

- Installation opening: 133 mm
- Installation depth: 60 mm
- Dimensions 180 x 80 mm
- Outer diameter: 180 mm
- Width 180 mm
- Height: 180 mm
- Depth: 80 mm
- Colour: White
- Ass. Operating temperature 0-40 °C
- Weighs 0.8 kg
- Speaker type 165
- Gross weight: 1.989 kg
- Impedance (Z) 8 Ω
- Music load capacity (MAX) 60 W
- Product type
Flush mount speaker
- RMS capacity
30 W
- Max. load
60 W
- Power levels
60 W
- Impedance
8 Ω
- Features
Recessed speaker
- Frequency range
80-20000 Hz
- Type
Round
- Factory colour
White
- Material
Plastic
- Recess diameter
13.3 mm
- Width
18 mm
- Height
18 mm
- Length
8 mm
- Depth
8 mm
- (Ø)
18 mm
- Weight
800
- External width
180 mm
- External length
180 mm
- Outside Ø
180 mm
- Dim
(Ø x H) 18 mm x 18 mm
- Recess depth
60 mm
- Recess diameter
13.3 mm
- Sound pressure
87 dB
Documents & Downloads
Datasheet
Datasheet 3341030 Monacor SPE-265/WS Flush mount speaker 60 W 8 Ω White 1 Pair
User & Safety Instructions
User & Safety Instructions 3341030 Monacor SPE-265/WS Flush mount speaker 60 W 8 Ω White 1 Pair
Description
Built-in speaker pair, 30 W
Coaxial system Tweeter with ferrofluid Resistant to humidity One-part white plastic construction and plastic membrane Versatile usage for car Hi-Fi, ELA, terrace, boat
This text is machine translated.
Coaxial system Tweeter with ferrofluid Resistant to humidity One-part white plastic construction and plastic membrane Versatile usage for car Hi-Fi, ELA, terrace, boat
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 80-20000 Hz
- Nominal capacity (RMS) 30 W.
- Music load capacity (MAX) 60 W
- Characteristic sound pressure 87 dB/W/m
- Mounting hole dia. 133 mm.
- Installation depth: 60 mm
- Dimensions: Ø 180 mm x 80 mm
- Outer diameter: Ø 180 mm
- Width: Ø 180 mm
- Height: Ø 180 mm
- Depth: 80 mm
- Colour: White
- Ass. Operating temperature 0-40 °C
- Weighs 0.8 kg
- Packing: 2
- Speaker type 165
- Packaging dimensions (W x H x L) 0.18 x 0.09 x 0.38 m
- Gross weight: 1.989 kg
- Net weight: 1.735 kg
