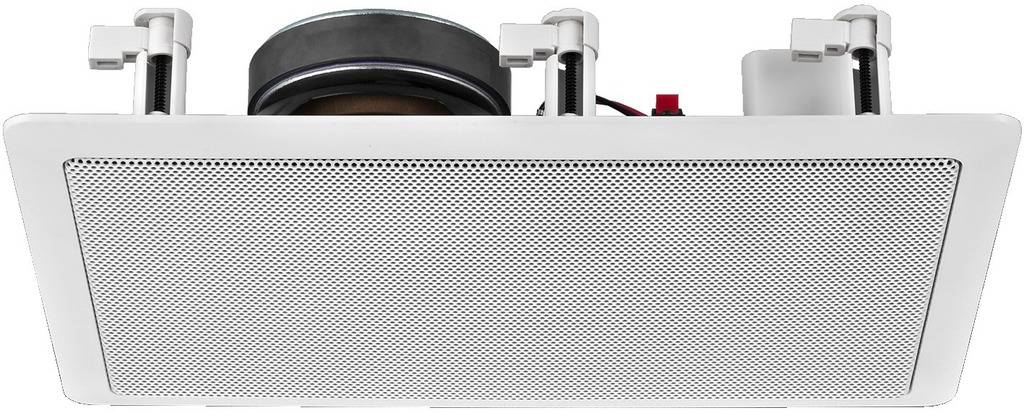

Monacor SPE-32 Flush mount speaker 100 W 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Frequency range 40-20000 Hz
- Resonant frequency (fs): 37 Hz
- Power capability, 100V: -
- Load-carrying capacity, 8 Ohm: 100WMAX, 50WRMS
- Avg. Sound pressure (1W/m): 89 dB
- Max. Nominal sound pressure: 106 dB
- Speaker Type: 200 pcs.
- Installation opening: 330 x 225 mm
- Cutout depth: 87 mm
- Permissible operating temperature: 0-40°C
- Dimensions: 358 x 256 x 97 mm
- Weight: 2.2 kg
- Other: -
- Product type
Flush mount speaker
- RMS capacity
50 W
- Max. load
100 W
- Power levels
100 W
- Max. sound pressure
106 dB
- Features
2-way
- Type
Square
- Material
ABS plastic
- Recess width
225 mm
- Recess length
330 mm
- Width
256 mm
- Height
97 mm
- Length
358 mm
- Depth
97 mm
- Weight
2.2 kg
- External width
256 mm
- External length
358 mm
- Dim
(L x W x H) 358 x 256 x 97 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332652 Monacor SPE-32 Flush mount speaker 100 W 1 pc(s)
Description
Features
- Hi-fi wall and ceiling speaker, 8 Ohm
- 2-way design with dome tweeter (at SPE-17/WS, PES-22/WS and SPE-32/WS swivel)
- Plastic casing with metal grille
- Plastic material made of ABS and self-extinguishing according to UL94 V0
- Especially sounds great
- For wall/ceiling strong 8-35 mm
- This text is machine translated.
