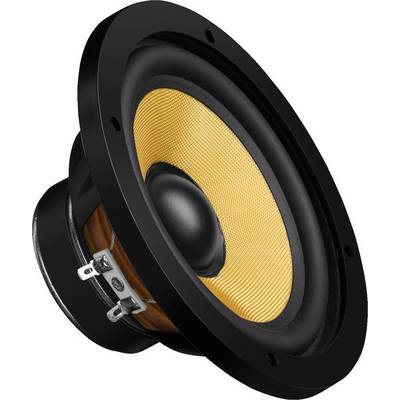

Monacor SPH-174KE 6.5 inch 16.8 cm Mid-range speaker/subwoofer 50 W 8 Ω
EAN:
Part number:
Item no:
Highlights & Details
Monacor SPH-174 KE 6.5 Chassis
- Hi-Fi subwoofer in classic design
- High-quality diaphragm made of Kevlar® fabric
- Sturdy steel basket with 4-hole screw connection
- This text is machine translated.
Technical specifications
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
6.5 inch
- Speaker size (cm)
16.8 cm
- RMS capacity
50 W
- Max. load
100 W
- Min. frequency
100 Hz
- Max. frequency
8000 Hz
- Impedance
8 Ω
- Sound pressure
88 dB

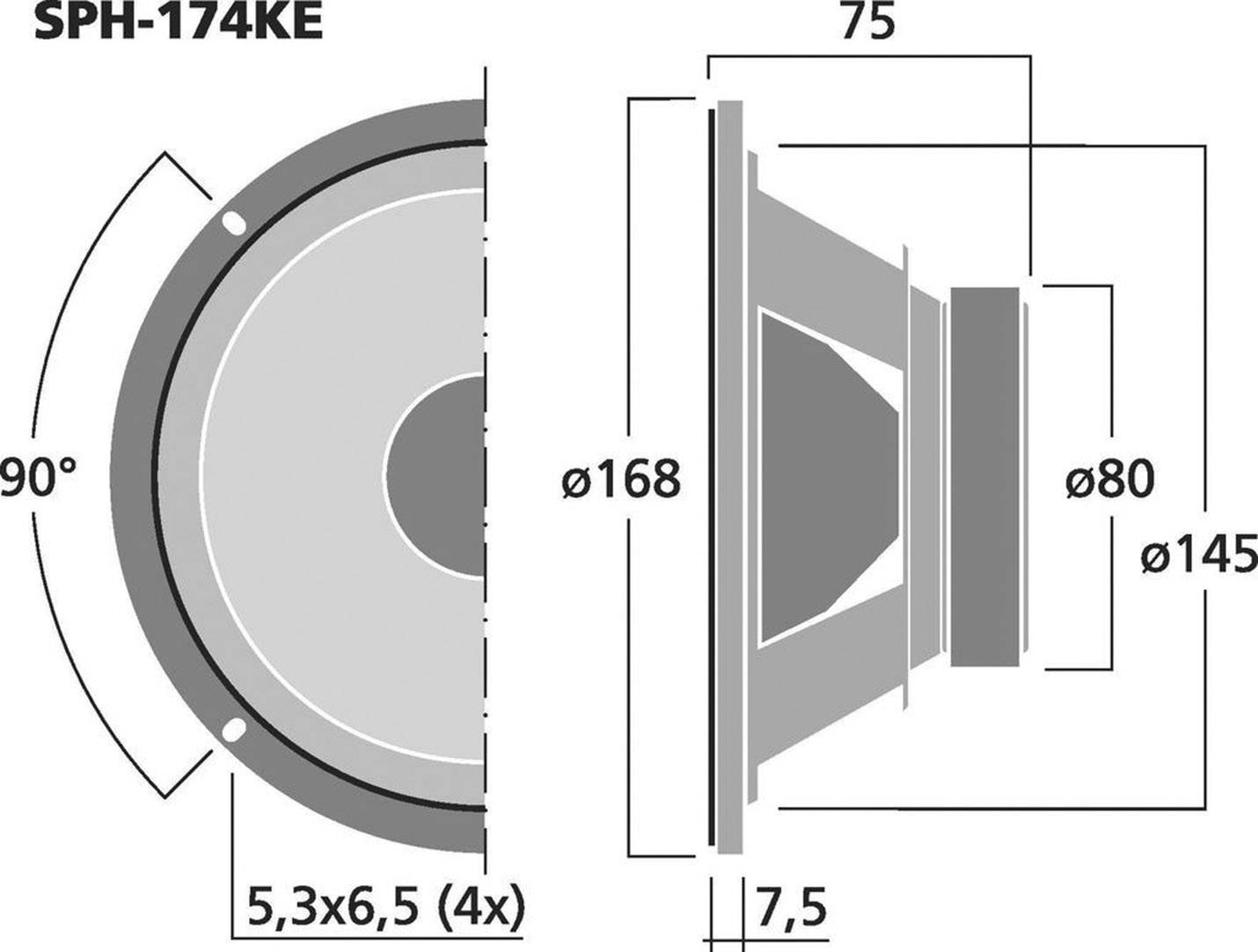

- Recess diameter
14.5 cm
- Recess depth
68 mm
- Weight
780 g

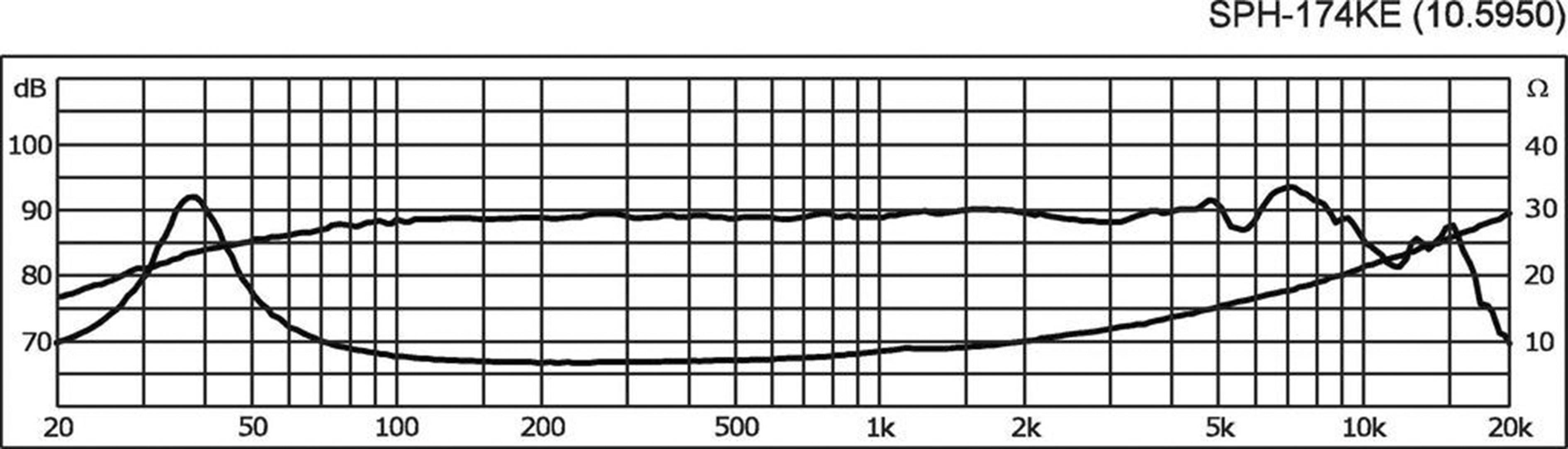

- Frequency range
100 Hz - 8000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1780969 Monacor SPH-174KE 6.5 inch 16.8 cm Mid-range speaker/subwoofer 50 W 8 Ω
Description
Features
- Hi-Fi mid-range speaker
- 50 W
- 8 Ω
- Hi-Fi subwoofer in classic design
- High-quality diaphragm made of Kevlar® fabric
- Sturdy steel basket with 4-hole screw connection
- Very linear frequency response
- Can be used universally in closed, bass reflex and TML housings
- Includes plastic basket ring (Ø 175 mm x 11 mm).
Hints
Kevlar® is a registered trademark of E.I. du Pont de Nemours and Company
