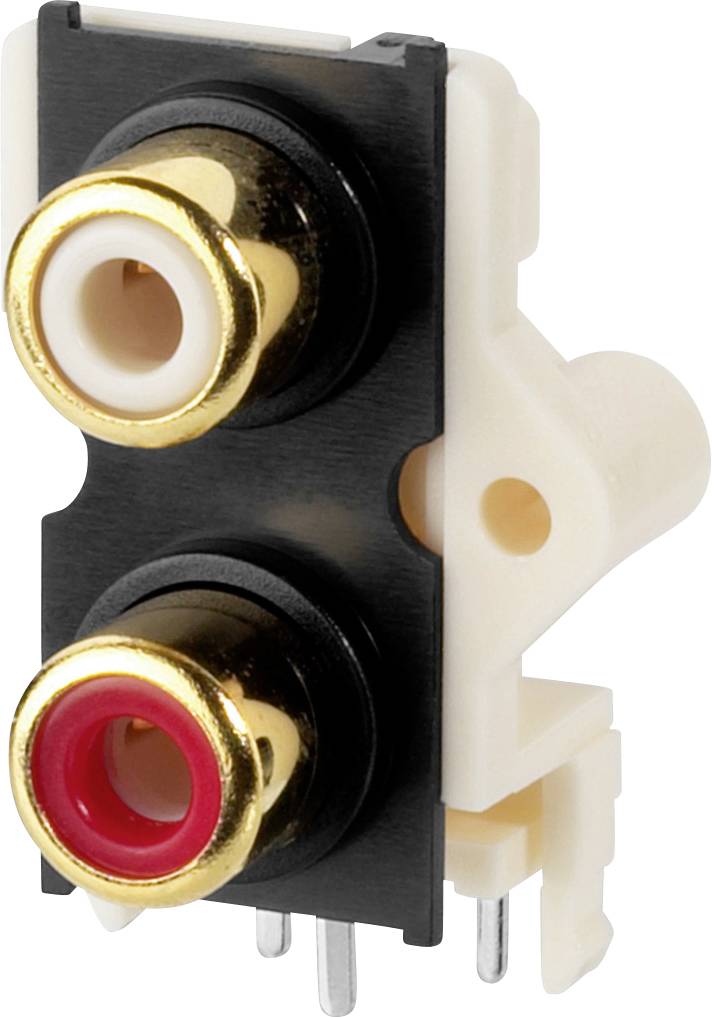

'Two gold-plated RCA sockets, one with a white ring and one with a red ring, mounted on a plastic mounting plate.'

'Two gold-plated RCA sockets, one with a white ring and one with a red ring, mounted on a plastic mounting plate.'

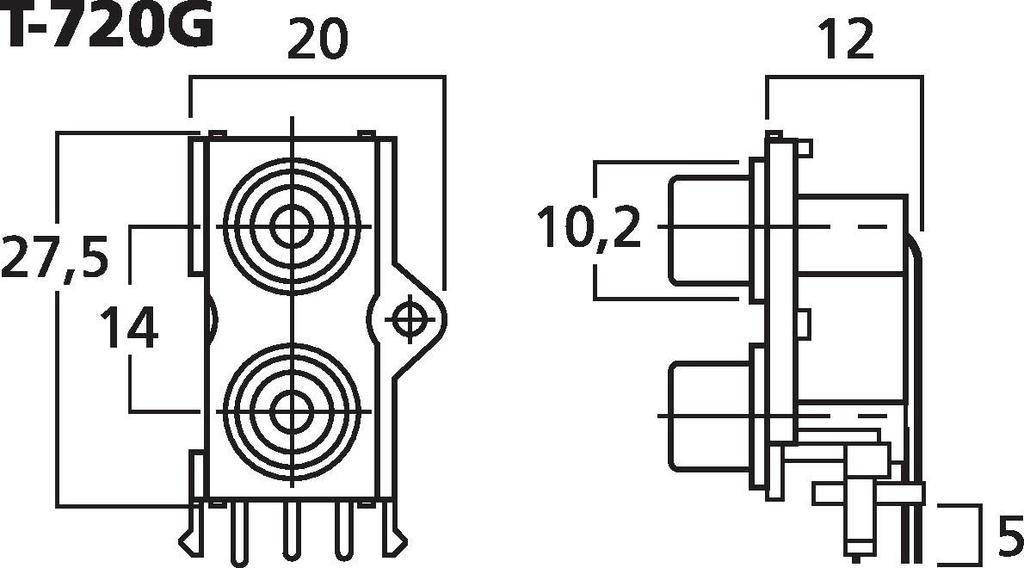

A technical diagram shows the dimensions of an electrical connector. Left: height 27.5 mm, width 20 mm. Right: depth 12 mm. Connection pins at the bottom.

1/2

Monacor

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

38 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 0.004 kg
Ass. Operating temperature 0-40 °C
Weight: 4 g
Material: Metallic
Connection 2 x phono-socket
Type: Panel-mounted socket
Equipped with gold-plated contact surfaces
Type phono
Number: 1
Colour/color coding: Black, red/white connections

Product type: RCA socket

Content: 1 pc(s)

Material: Metal

Weight: 4 g

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3340563 Monacor T-720G RCA socket

User & Safety Instructions

User & Safety Instructions 3340563 Monacor T-720G RCA socket

Description

Phono panel-mounted socket
Gold-plated contact surfaces

This text is machine translated.

Features

Type: Panel-mounted socket
Type phono
Number: 1
Equipped with gold-plated contact surfaces
Colour/color coding black
Connections red/white
Connection 2 x phono-socket
Material: Metallic
Ass. Operating temperature 0-40 °C
Weight: 4 g
