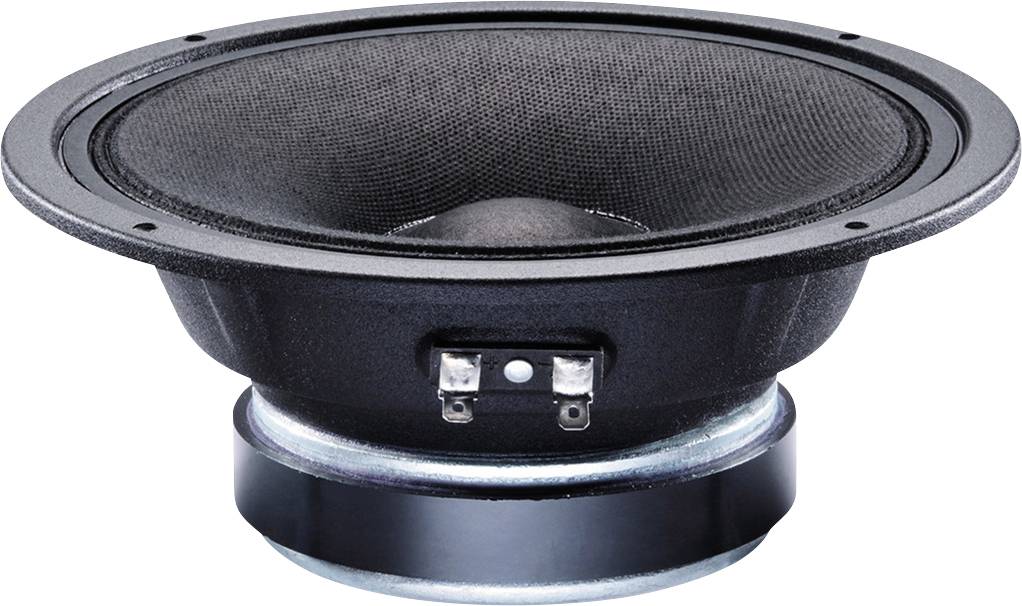

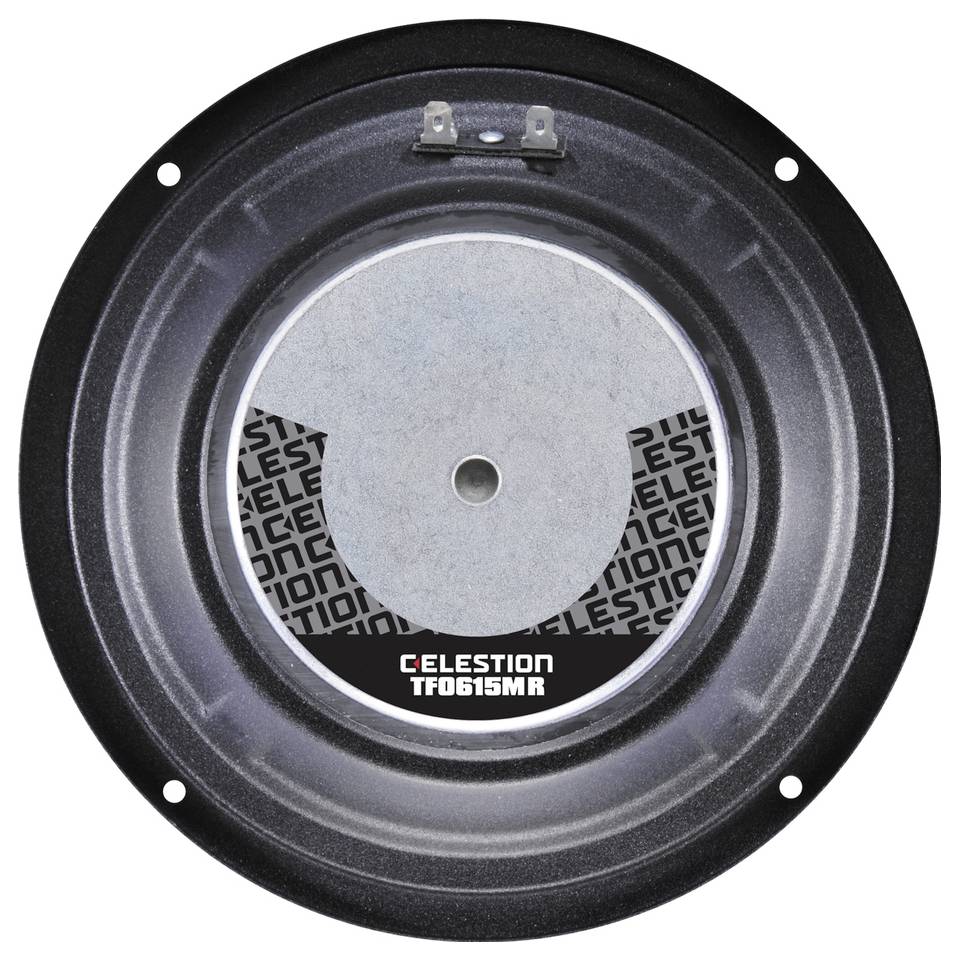

Monacor TF0615MR/8 6 inch 15.2 cm Mid-range speaker 50 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.4 kg
- Transmission technology: Cable

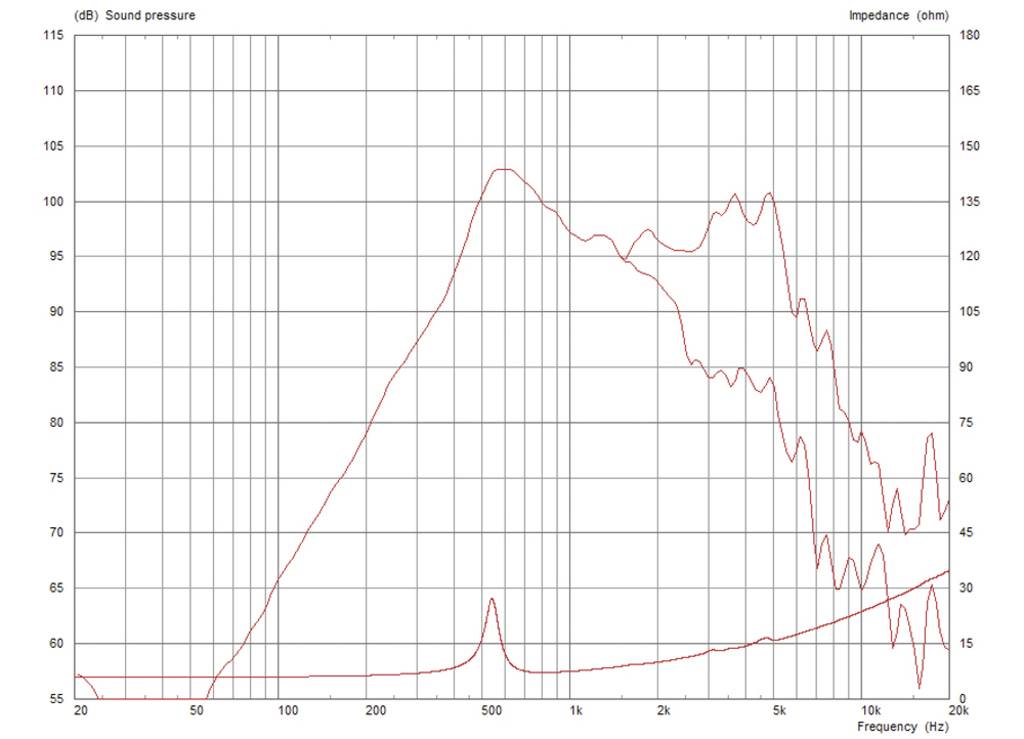

- Frequency range 500-5000 Hz
- Nominal capacity (RMS) 50 W.
- Characteristic sound pressure 97 dB/W/m
- Installation opening: 147 mm
- Installation depth: 74 mm
- Dimensions 178 x 74 mm
- Outer diameter: 178 mm
- Width 178 mm
- Height: 178 mm
- Depth: 74 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.4 kg
- Speaker type 6"
- Gross weight: 1.6 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 553 Hz
- Music load capacity (MAX) 100 W
- Voice coil diameter 38 mm
- Hole diameter 168.5 mm
- Direct current resistance (Re) 5.53 Ω
- Voice coil former (Le):0.29 mH
- Voice coil former: Polyimide
- Magnet weight: 0.48 kg
- Voice coil material: Copper wire
- Product type
Mid-range speaker
- Speaker size (inch)
6 inch
- Speaker size (cm)
15.2 cm
- RMS capacity
50 W
- Max. load
100 W
- Impedance
8 Ω
- Sound pressure
97 dB
- Recess diameter
14.7 mm
- Recess depth
74 mm
- Weight
1.4 kg
- Height
17.8 mm
- Length
7.4 mm
- Width
17.8 mm
- Recess diameter
14.7 mm
- Frequency range
500-5000 Hz
Documents & Downloads
Datasheet
Datasheet 3341028 Monacor TF0615MR/8 6 inch 15.2 cm Mid-range speaker 50 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3341028 Monacor TF0615MR/8 6 inch 15.2 cm Mid-range speaker 50 W 8 Ω
Description
PA MID-RANGE SPEAKER, 50 W, 8 Ω
The speakers of the TF-series impress both through an excellent price-performance ratio as well as through very good sound properties and are thus suitable Ideal for use in efficient PA speaker systems with powerful sound.
Compact 15.2-cm-PA mid-woofer (6") with very large radiation range High-quality Kevlar-fiber reinforced membrane Very linear frequency response and large bandwidth
This text is machine translated.
The speakers of the TF-series impress both through an excellent price-performance ratio as well as through very good sound properties and are thus suitable Ideal for use in efficient PA speaker systems with powerful sound.
Compact 15.2-cm-PA mid-woofer (6") with very large radiation range High-quality Kevlar-fiber reinforced membrane Very linear frequency response and large bandwidth
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 500-5000 Hz
- Resonance frequency (fs): 553 Hz
- Nominal capacity (RMS) 50 W.
- Music load capacity (MAX) 100 W
- Characteristic sound pressure 97 dB/W/m
- Direct current resistance (Re): 5.53 Ω
- Voice coil former (Le): 0.29 mH
- Voice coil diameter: Ø 38 mm
- Voice coil material: Copper wire
- Voice coil former: Polyimide
- Magnet weight: 0.48 kg
- Mounting hole dia. 147 mm.
- Installation depth: 74 mm
- Hole diameter: Ø 168.5 mm
- Dimensions: Ø 178 mm x 74 mm
- Outer diameter: Ø 178 mm
- Width: Ø 178 mm
- Height: Ø 178 mm
- Depth: 74 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.4 kg
- Packing: 1
- Speaker type 6"
- Packaging dimensions (W x H x L) 0.19 x 0.1 x 0.195 m
- Gross weight: 1.6 kg
- Net weight: 1.4 kg
