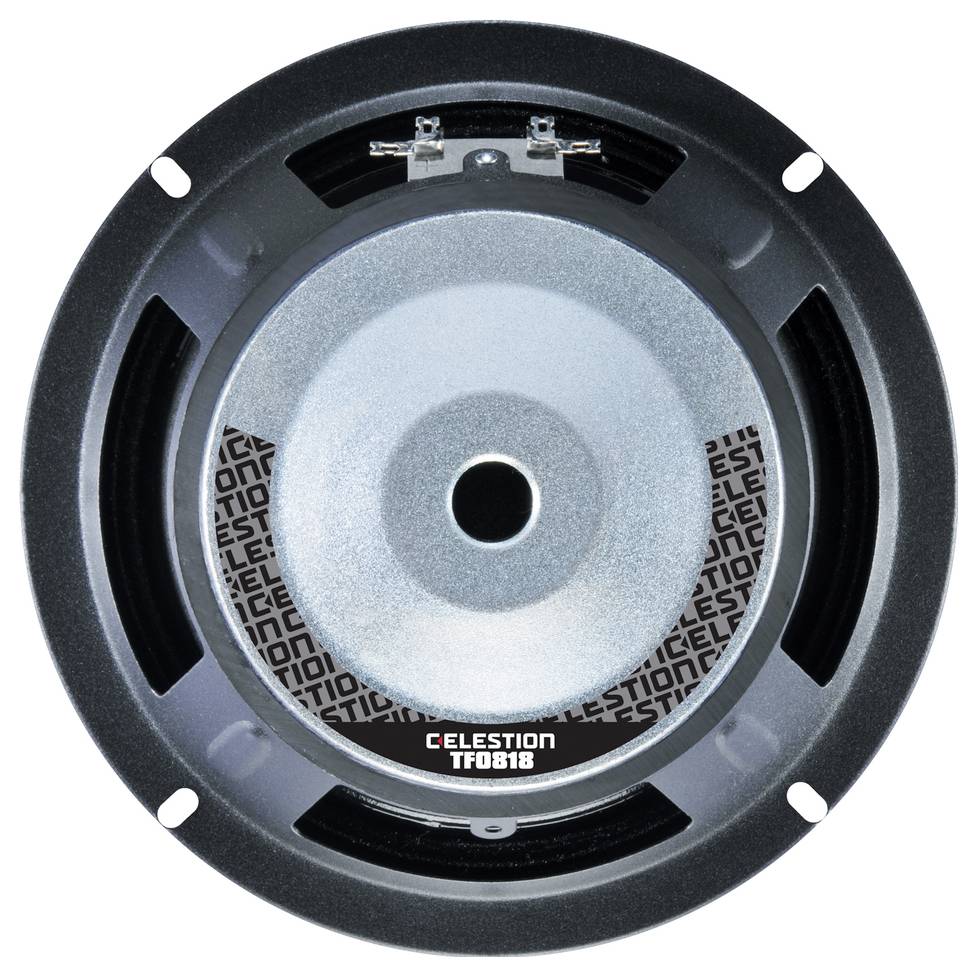

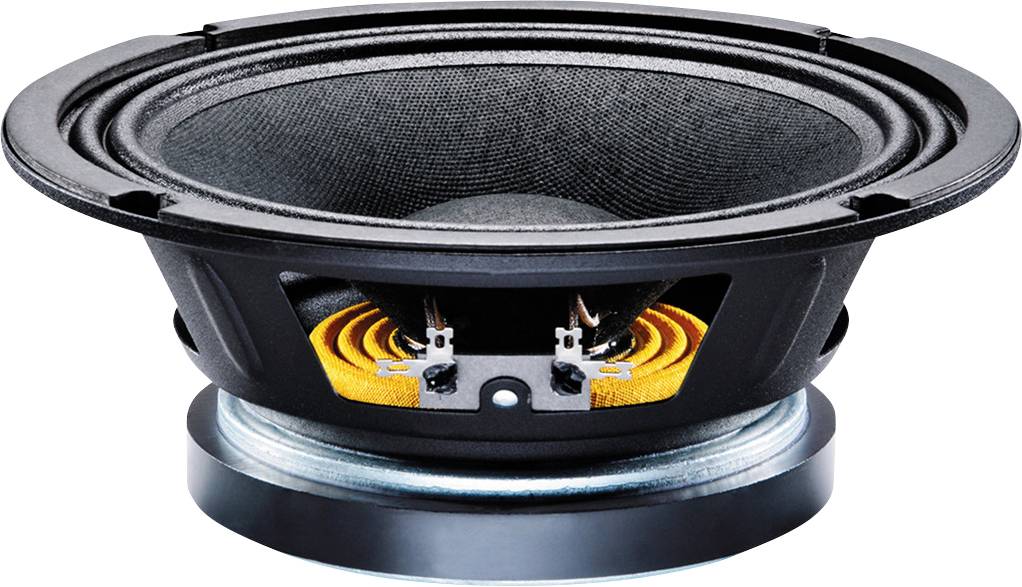

Monacor TF0818/8 8 inch 20.8 cm Mid-range speaker/subwoofer 100 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 2.3 kg
- Transmission technology: Cable

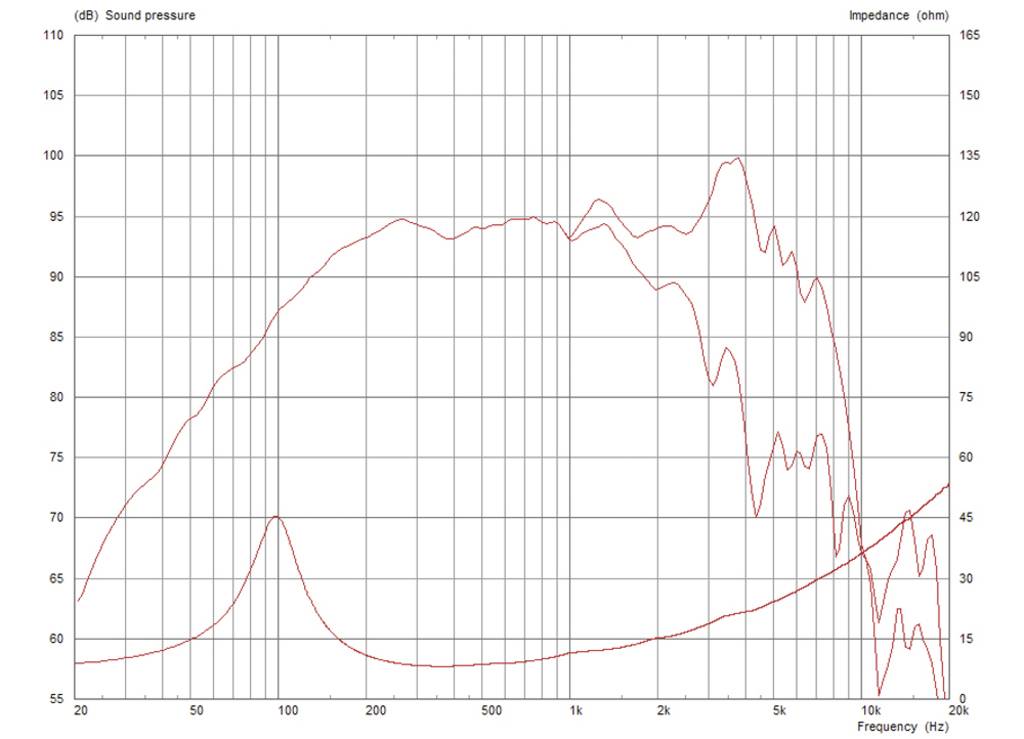

- Frequency range 70-6000 Hz
- Nominal capacity (RMS) 100 W.
- Characteristic sound pressure 94 dB/W/m
- Installation opening: 183 mm
- Installation depth: 99 mm
- Dimensions 208 x 99 mm
- Outer diameter: 208 mm
- Width 208 mm
- Height: 208 mm
- Depth: 99 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weighs 2.3 kg.
- Speaker type 8"
- Gross weight: 2.8 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 94 Hz
- Music load capacity (MAX) 200 W
- Voice coil diameter 44 mm
- Hole diameter 195-199 mm
- Suspension compliance (Cms) 0.13 mm / N
- Moving mass (MMS): 19.57 g
- Mechanical quality (QMS): 3.311
- Electrical quality (QES): 0.493
- Overall quality (Qts): 0.429
- Equivalent volume (Vas): 9.4 l
- Direct current resistance (Re) 6.72 Ω
- Power factor (WxL) 12.95 Tm
- Voice coil former (Le):0.75 mH
- Voice coil former: Polyimide
- Linear deflection (XMAX): ± 5 mm
- Effective Membrane area (SD): 226.98 cm2
- Magnet weight: 0.88 kg
- Voice coil length 13 mm
- Voice coil material: Copper wire
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
8 inch
- Speaker size (cm)
20.8 cm
- RMS capacity
100 W
- Max. load
200 W
- Min. frequency
70 Hz
- Max. frequency
6000 Hz
- Impedance
8 Ω
- Sound pressure
94 dB
- Recess diameter
18.3 mm
- Recess depth
99 mm
- Weight
2.3 kg
- Factory colour
Black
- Frequency range
70 Hz - 6000 Hz
- Depth
9.9 mm
- (Ø)
20.8 mm
- Height
20.8 mm
- Width
20.8 mm
Documents & Downloads
Datasheet
Datasheet 3341029 Monacor TF0818/8 8 inch 20.8 cm Mid-range speaker/subwoofer 100 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3341029 Monacor TF0818/8 8 inch 20.8 cm Mid-range speaker/subwoofer 100 W 8 Ω
Description
PA MID-RANGE SPEAKER, 100 W, 8 Ω
Celestion, one of the "most sounding" names in the world of speakers. The TF series chassis is characterized by excellent price/performance ratio with simultaneous very good sound characteristics and is thus predestined for use in powerful PA speaker systems with strong sound.
Excellent sounding PA-Mid-woofer with reserves in the low range High-quality with Kevlar fibers reinforced cellulose membrane Heat-resistant 44.5-mm moving coil on Kapton-voice coil support Excellent frequency response linearity and broadband stability Sturdy steel sheet basket Ideal for compact PA-top parts with subwoofer support
This text is machine translated.
Celestion, one of the "most sounding" names in the world of speakers. The TF series chassis is characterized by excellent price/performance ratio with simultaneous very good sound characteristics and is thus predestined for use in powerful PA speaker systems with strong sound.
Excellent sounding PA-Mid-woofer with reserves in the low range High-quality with Kevlar fibers reinforced cellulose membrane Heat-resistant 44.5-mm moving coil on Kapton-voice coil support Excellent frequency response linearity and broadband stability Sturdy steel sheet basket Ideal for compact PA-top parts with subwoofer support
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 70-6000 Hz
- Resonance frequency (fs): 94 Hz
- Nominal capacity (RMS) 100 W.
- Music load capacity (MAX) 200 W
- Characteristic sound pressure 94 dB/W/m
- Suspension (Cms): 0.13 mm/N
- Moving earth (Mms): 19.57 g
- Mechanical quality (Qms): 3.311
- Electrical quality (QES): 0.493
- Overall quality (Qts): 0.429
- Equivalent volume (Vas): 9.4 l
- Direct current resistance (Re): 6.72 Ω
- Power factor (WxL) 12.95 Tm
- Voice coil former (Le): 0.75 mH
- Voice coil diameter: Ø 44 mm
- Voice coil length 13 mm
- Voice coil material: Copper wire
- Voice coil former: Polyimide
- Linear deflection (XMAX): ± 5 mm
- Effective Membrane area (Sd): 226.98 cm²
- Magnet weight: 0.88 kg
- Mounting hole dia. 183 mm.
- Installation depth: 99 mm
- Hole diameter: Ø 195-199 mm
- Dimensions: Ø 208 mm x 99 mm
- Outer diameter: Ø 208 mm
- Width: Ø 208 mm
- Height: Ø 208 mm
- Depth: 99 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weighs 2.3 kg.
- Packing: 1
- Speaker type 8"
- Packaging dimensions (W x H x L) 0.229 x 0.102 x 0.229 m
- Gross weight: 2.8 kg
- Net weight: 2.3 kg
