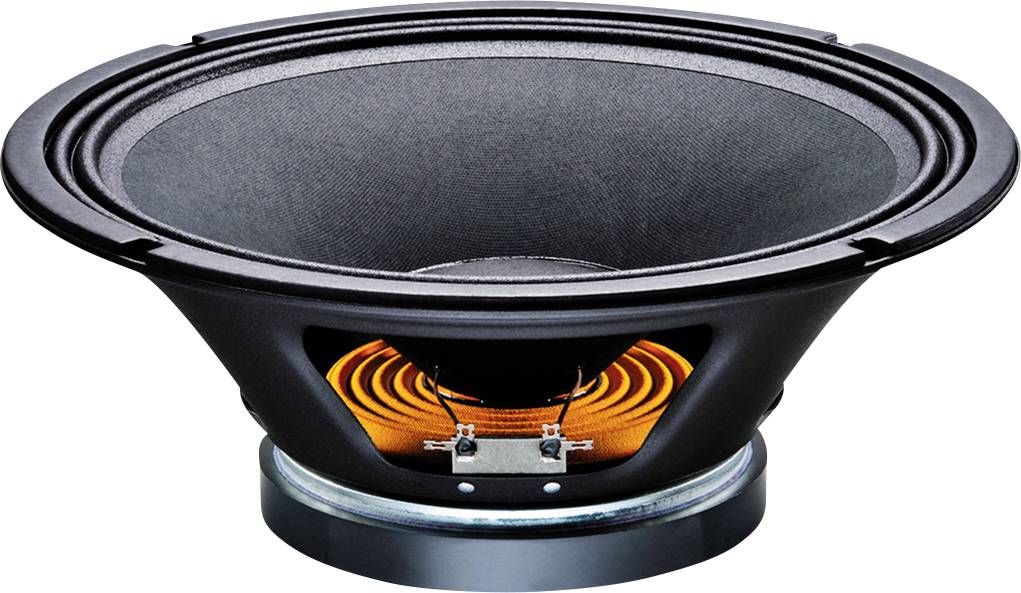

Monacor TF1220/8 12 inch Mid-range speaker/subwoofer 150 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.8 kg
- Transmission technology: Cable

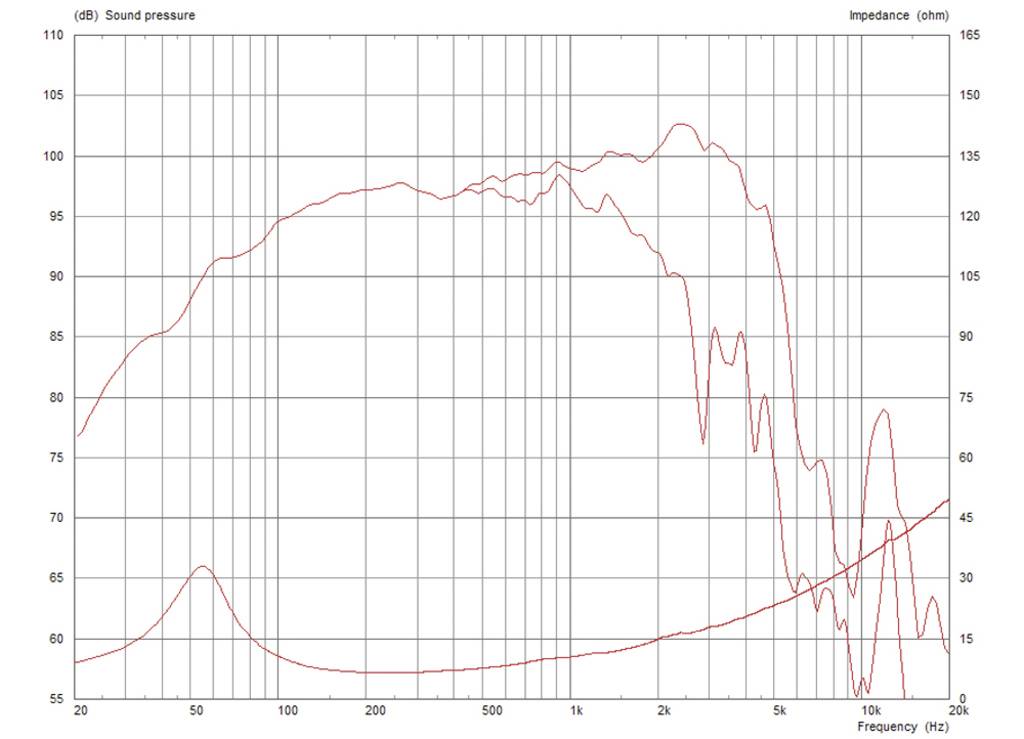

- Frequency range 60-4000 Hz
- Nominal capacity (RMS) 150 W.
- Characteristic sound pressure 97 dB/W/m
- Installation opening: 283 mm
- Installation depth: 131 mm
- Dimensions 305 x 131 mm
- Outer diameter: 305 mm
- Width 305 mm
- Height: 305 mm
- Depth: 131 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weighs 3.8 kg
- Speaker type 12"
- Gross weight: 4.44 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 55.80 Hz
- Music load capacity (MAX) 300 W
- Voice coil diameter 50 mm
- Hole diameter 297 mm
- Suspension compliance (Cms) 0.18 mm / N
- Moving mass (MMS): 44.51 g
- Mechanical quality (QMS): 3.327
- Electrical quality (QES): 0.441
- Overall quality (Qts): 0.389
- Equivalent volume (Vas): 72.8 l
- Direct current resistance (Re) 5.46 Ω
- Power factor (WxL) 13.91 Tm
- Voice coil former (Le):0.71 mH
- Voice coil former: Polyimide
- Linear deflection (XMAX): ± 4 mm
- Effective Membrane area (SD): 530.93 cm2
- Magnet weight: 1.2 kg
- Voice coil length 12 mm
- Voice coil material: Copper wire
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
12 inch
- RMS capacity
150 W
- Max. load
300 W
- Min. frequency
60 Hz
- Max. frequency
4000 Hz
- Impedance
8 Ω
- Sound pressure
97 dB
- Recess diameter
28.3 cm
- Recess depth
13.1 cm
- Weight
3.8 kg
- Factory colour
Black
- Frequency range
60 Hz - 4000 Hz
- Depth
13.1 cm
- (Ø)
30.5 cm
- Height
30.5 cm
- Width
30.5 cm
Documents & Downloads
Datasheet
Datasheet 3340909 Monacor TF1220/8 12 inch Mid-range speaker/subwoofer 150 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340909 Monacor TF1220/8 12 inch Mid-range speaker/subwoofer 150 W 8 Ω
Description
PA MID-RANGE SPEAKER, 150 W, 8 Ω
The TF series chassis is characterized by excellent price/performance ratio with simultaneous very good sound characteristics and is thus predestined for use in powerful PA speaker systems with strong sound.
Excellent sound 30.5 cm PA mid-woofer (12") with reserves in the low-frequency range up to approx. 60 Hz High-quality cellulose membrane reinforced with Kevlar fibers Excellent frequency response linearity and broadband Very good speech and song playback quality Sturdy steel basket Ideal for compact PA-top parts with subwoofer support
This text is machine translated.
The TF series chassis is characterized by excellent price/performance ratio with simultaneous very good sound characteristics and is thus predestined for use in powerful PA speaker systems with strong sound.
Excellent sound 30.5 cm PA mid-woofer (12") with reserves in the low-frequency range up to approx. 60 Hz High-quality cellulose membrane reinforced with Kevlar fibers Excellent frequency response linearity and broadband Very good speech and song playback quality Sturdy steel basket Ideal for compact PA-top parts with subwoofer support
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 60-4000 Hz
- Resonance frequency (fs): 55.80 Hz
- Nominal capacity (RMS) 150 W.
- Music load capacity (MAX) 300 W
- Characteristic sound pressure 97 dB/W/m
- Suspension (Cms): 0.18 mm/N
- Moving earth (Mms): 44.51 g
- Mechanical quality (Qms): 3.327
- Electrical quality (QES): 0.441
- Overall quality (Qts): 0.389
- Equivalent volume (Vas): 72.8 l
- Direct current resistance (Re): 5.46 Ω
- Power factor (WxL) 13.91 Tm
- Voice coil former (Le): 0.71 mH
- Voice coil diameter: Ø 50 mm
- Voice coil length 12 mm
- Voice coil material: Copper wire
- Voice coil former: Polyimide
- Linear deflection (XMAX): ± 4 mm
- Effective Membrane area (Sd): 530.93 cm²
- Magnet weight: 1.2 kg
- Mounting hole dia. 283 mm.
- Installation depth: 131 mm
- Hole diameter: Ø 297 mm
- Dimensions: Ø 305 mm x 131 mm
- Outer diameter: Ø 305 mm
- Width: Ø 305 mm
- Height: Ø 305 mm
- Depth: 131 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weighs 3.8 kg
- Packing: 1
- Speaker type 12"
- Packaging dimensions (W x H x L) 0.35 x 0.16 x 0.33 m
- Gross weight: 4.44 kg
- Net weight: 3.8 kg
