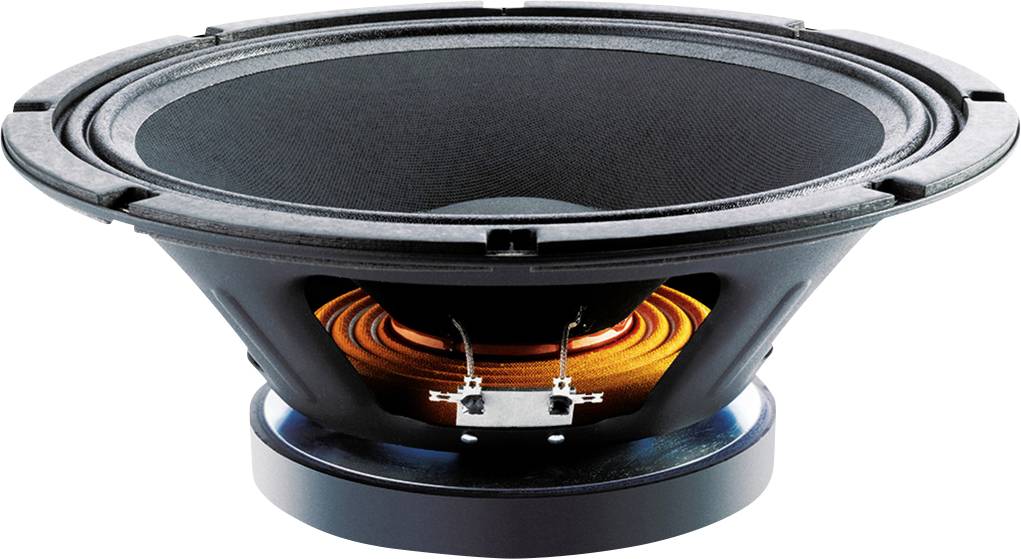

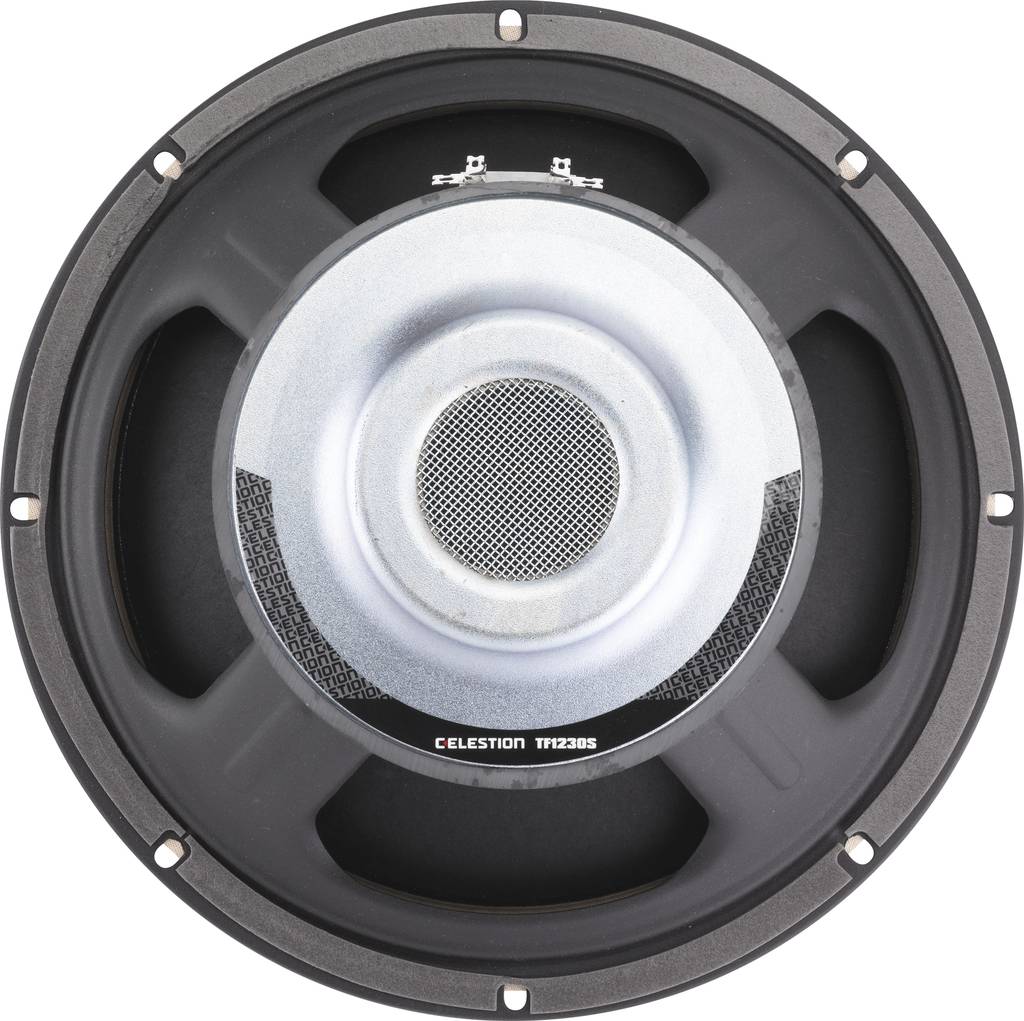

Monacor TF1230S/8 12 inch 30.5 cm Mid-range speaker/subwoofer 300 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 4.3 kg
- Transmission technology: Cable
- Frequency range 50-4000 Hz
- Nominal capacity (RMS) 300 W.
- Characteristic sound pressure 96 dB/W/m
- Installation opening: 283 mm
- Installation depth: 137 mm
- Dimensions 317.5 x 137 mm
- Outer diameter: 317.5 mm
- Width 317.5 mm
- Height: 317.5 mm
- Depth: 137 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weighs 4.3 kg.
- Speaker type 12"
- Gross weight: 5 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 60.3 Hz
- Music load capacity (MAX) 600 W
- Voice coil diameter 75 mm
- Hole diameter 299 mm
- Suspension compliance (Cms) 0.14 mm / N
- Moving mass (MMS): 51.08 g
- Mechanical quality (QMS): 3.28
- Electrical quality (QES): 0.422
- Overall quality (Qts): 0.374
- Equivalent volume (Vas): 54.4 l
- Direct current resistance (Re) 5.98 Ω
- Power factor (WxL) 16.56 Tm
- Voice coil former (Le):0.98 mH
- Voice coil former: Polyimide
- Linear deflection (XMAX): ± 4.5 mm
- Effective Membrane area (SD): 530.93 cm2
- Magnet weight: 1.7 kg
- Voice coil length 17 mm
- Voice coil material: Copper-coated aluminum flat wire
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
12 inch
- Speaker size (cm)
30.5 cm
- RMS capacity
300 W
- Max. load
600 W
- Min. frequency
50 Hz
- Max. frequency
4000 Hz
- Impedance
8 Ω
- Sound pressure
96 dB
- Recess diameter
28.3 mm
- Recess depth
13.7 mm
- Weight
4.3 kg
- Factory colour
Black
- Frequency range
50 Hz - 4000 Hz
- Depth
13.7 mm
- (Ø)
31.75 mm
- Height
31.75 mm
- Width
31.75 mm
Documents & Downloads
Datasheet
Datasheet 3340905 Monacor TF1230S/8 12 inch 30.5 cm Mid-range speaker/subwoofer 300 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340905 Monacor TF1230S/8 12 inch 30.5 cm Mid-range speaker/subwoofer 300 W 8 Ω
Description
PA MID-RANGE SPEAKER, 300 W, 8 Ω
The TF series chassis is characterized by excellent price/performance ratio with simultaneous very good sound characteristics and is thus predestined for use in powerful PA speaker systems with strong sound.
Excellent sounding 30.5 cm PA mid-woofer (12") with reserves in the low-frequency range up to approx. 50 Hz. Suitable for various PA loudspeakers through the increased basket diameter
This text is machine translated.
The TF series chassis is characterized by excellent price/performance ratio with simultaneous very good sound characteristics and is thus predestined for use in powerful PA speaker systems with strong sound.
Excellent sounding 30.5 cm PA mid-woofer (12") with reserves in the low-frequency range up to approx. 50 Hz. Suitable for various PA loudspeakers through the increased basket diameter
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 50-4000 Hz
- Resonance frequency (fs): 60.3 Hz
- Nominal capacity (RMS) 300 W.
- Music load capacity (MAX) 600 W
- Characteristic sound pressure 96 dB/W/m
- Suspension (Cms): 0.14 mm/N
- Moving earth (Mms): 51.08 g
- Mechanical quality (Qms): 3.28
- Electrical quality (QES): 0.422
- Overall quality (Qts): 0.374
- Equivalent volume (Vas): 54.4 l
- Direct current resistance (Re): 5.98 Ω
- Power factor (WxL) 16.56 Tm
- Voice coil former (Le): 0.98 mH
- Voice coil diameter: Ø 75 mm
- Voice coil length 17 mm
- Voice coil material: Copper-coated aluminum flat wire
- Voice coil former: Polyimide
- Linear deflection (XMAX): ± 4.5 mm
- Effective Membrane area (Sd): 530.93 cm²
- Magnet weight: 1.7 kg
- Mounting hole dia. 283 mm.
- Installation depth: 137 mm
- Hole diameter 299 mm
- Dimensions: Ø 317.5 mm x 137 mm
- Outer diameter: Ø 317.5 mm
- Width: Ø 317.5 mm
- Height: Ø 317.5 mm
- Depth: 137 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weighs 4.3 kg.
- Packing: 1
- Speaker type 12"
- Packaging dimensions (W x H x L) 0.35 x 0.18 x 0.33 m
- Gross weight: 5 kg
- Net weight: 4.3 kg
