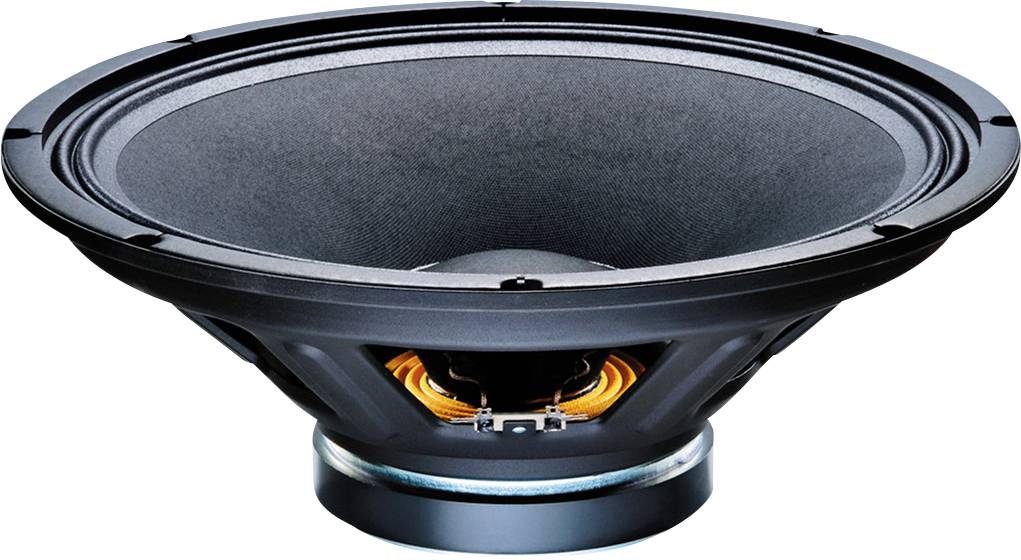

A large black loudspeaker with a visible coil in the centre, suitable for reproducing deep sounds in audio systems.

A large black loudspeaker with a visible coil in the centre, suitable for reproducing deep sounds in audio systems.

Round metal loudspeaker, Celestion T1235e model, shown from the front. Centre reveals the metal structure and labelling.

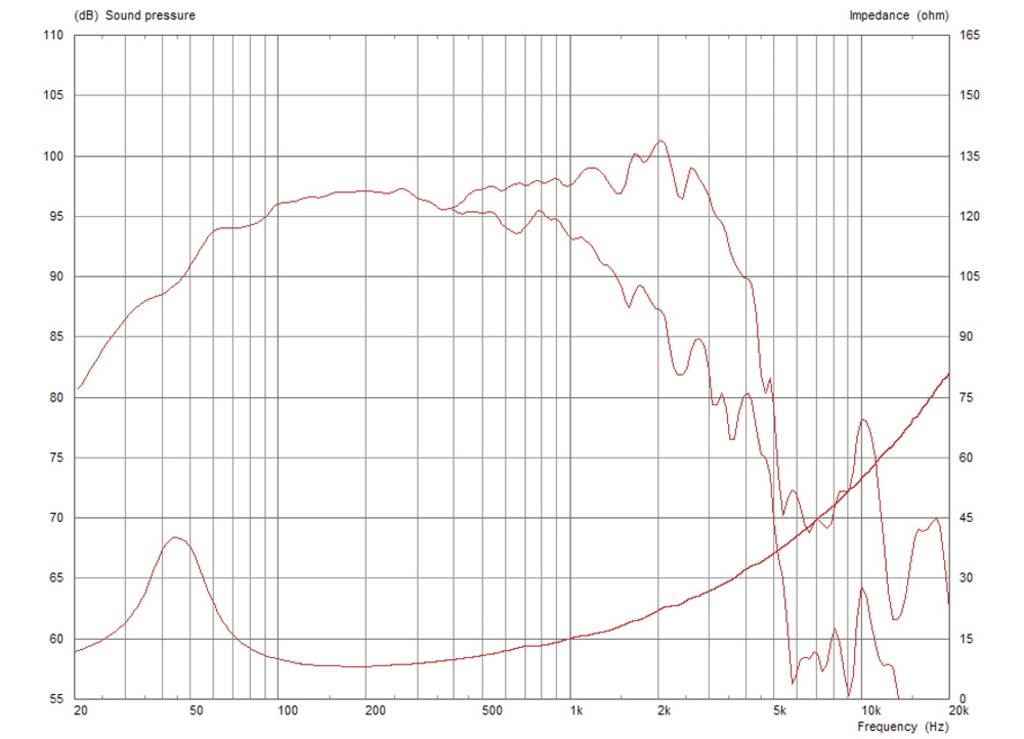

'SPL vs. Frequency: Diagram Shows Sound Pressure Level Curve (dB) and Impedance (Ohm). Range 20 Hz to 20 kHz, Peaks at 100 Hz and 2 kHz.'

1/3

Monacor

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 4.8 kg
Transmission technology: Cable
Frequency range 45-3500 Hz
Nominal capacity (RMS) 300 W.
Characteristic sound pressure 97 dB/W/m
Installation opening: 352 mm
Installation depth: 163 mm
Dimensions 385 x 163 mm
Outer diameter: 385 mm
Width 385 mm
Height: 385 mm
Depth: 163 mm
Colour, black
Ass. Operating temperature 0-40 °C
Weight: 4.8 kg.
Speaker type 15"
Gross weight: 5.5 kg
Impedance (Z) 4 Ω
Resonant frequency (fs): 47.5 Hz
Music load capacity (MAX) 600 W
Voice coil diameter 64 mm
Hole diameter 369 mm
Suspension compliance (Cms) 0.14 mm / N
Moving mass (MMS): 82.07 g
Mechanical quality (QMS): 4.486
Electrical quality (QES): 0.529
Overall quality (Qts): 0.473
Equivalent volume (Vas): 141.8 l
Direct current resistance (Re) 6.82 Ω
Power factor (WxL) 17.78 Tm
Voice coil former (Le):1.31 mH
Voice coil former: Glass fiber
Linear deflection (XMAX): ± 5.25 mm
Effective Membrane area (SD): 855.30 cm2
Magnet weight: 1.4 kg
Voice coil length 14.5 mm
Voice coil material: Copper wire

Product type: Subwoofer

Speaker size (inch): 15 inch

RMS capacity: 300 W

Max. load: 600 W

Min. frequency: 45 Hz

Max. frequency: 3500 Hz

Impedance: 4 Ω

Sound pressure: 97 dB

Recess diameter: 35.2 cm

Recess depth: 16.3 cm

Weight: 4.8 kg

Factory colour: Black

Frequency range: 45 Hz - 3500 Hz

Depth: 16.3 cm

Height: 38.5 cm

Width: 38.5 cm

Documents & Downloads

Datasheet

Datasheet 3340840 Monacor TF1525E/4 15 inch Subwoofer 300 W 4 Ω

User & Safety Instructions

User & Safety Instructions 3340840 Monacor TF1525E/4 15 inch Subwoofer 300 W 4 Ω

Description

TF1525E/4 PA WOOFER, 300 W, 4 Ω

This text is machine translated.

Features

Impedance (Z) 4 Ω
Transmission technology: Cable
Frequency range 45-3500 Hz
Resonance frequency (fs): 47.5 Hz
Nominal capacity (RMS) 300 W.
Music load capacity (MAX) 600 W
Characteristic sound pressure 97 dB/W/m
Suspension (Cms): 0.14 mm/N
Moving earth (Mms): 82.07 g
Mechanical quality (Qms): 4.486
Electrical quality (QES): 0.529
Overall quality (Qts): 0.473
Equivalent volume (Vas): 141.8 l
Direct current resistance (Re): 6.82 Ω
Power factor (WxL) 17.78 Tm
Voice coil former (Le): 1.31 mH
Voice coil diameter: Ø 64 mm
Voice coil length 14.5 mm
Voice coil material: Copper wire
Voice coil former: Glass fiber
Linear deflection (XMAX): ± 5.25 mm
Effective Membrane area (Sd): 855.30 cm²
Magnet weight: 1.4 kg
Mounting hole dia. 352 mm.
Installation depth: 163 mm
Hole diameter: Ø 369 mm
Dimensions: Ø 385 mm x 163 mm
Outer diameter: Ø 385 mm
Width: Ø 385 mm
Height: Ø 385 mm
Depth: 163 mm
Colour, black
Ass. Operating temperature 0-40 °C
Weight: 4.8 kg.
Packing: 1
Speaker type 15"
Packaging dimensions (W x H x L) 0.406 x 0.18 x 0.406 m
Gross weight: 5.5 kg
Net weight: 4.8 kg
