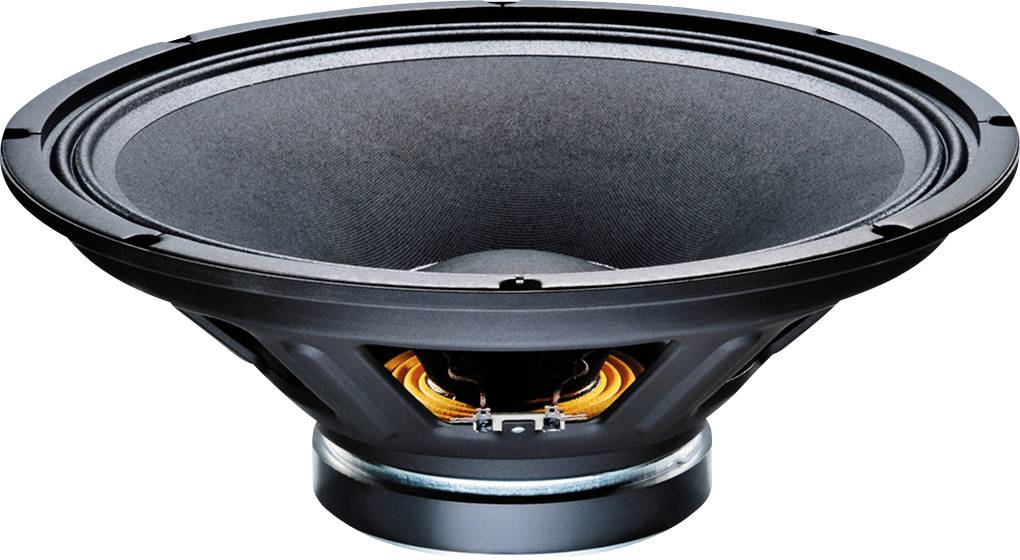

A large, black speaker driver with visible copper coils; typically used in speaker systems.

A large, black speaker driver with visible copper coils; typically used in speaker systems.

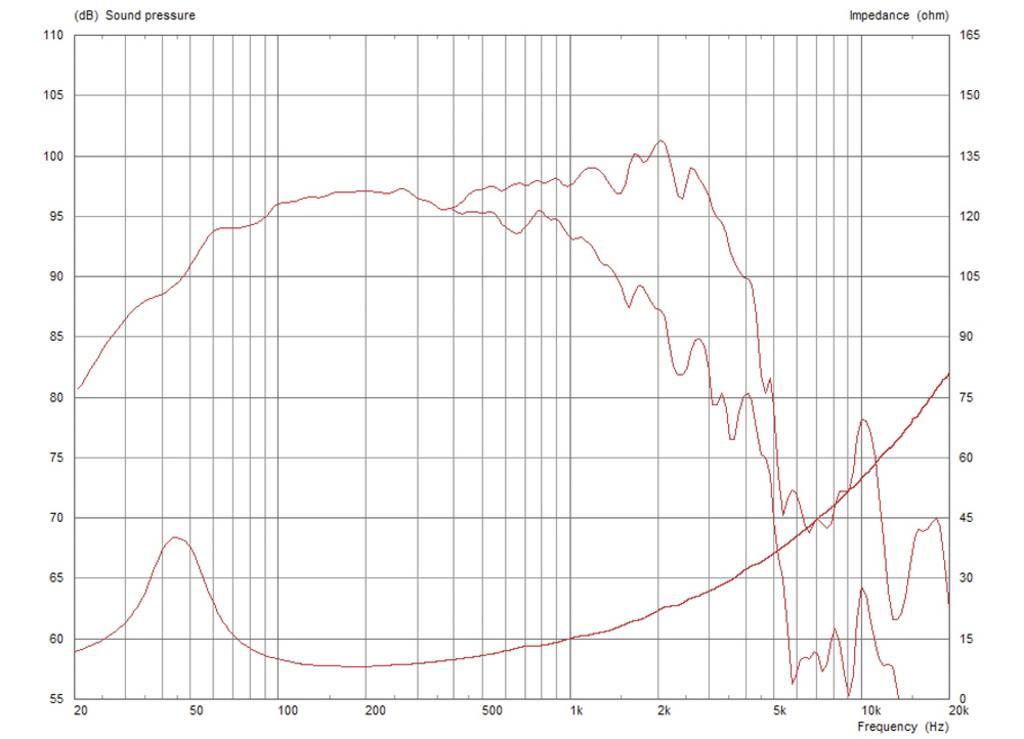

A diagram shows the sound pressure (dB) and impedance (Ohm) across frequency (Hz). The curve progressions illustrate the highs and lows.

1/3

Monacor

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 4.8 kg
Transmission technology: Cable
Frequency range 45-3500 Hz
Nominal capacity (RMS) 300 W.
Characteristic sound pressure 97 dB/W/m
Installation opening: 352 mm
Installation depth: 163 mm
Dimensions 385 x 163 mm
Outer diameter: 385 mm
Width 385 mm
Height: 385 mm
Depth: 163 mm
Colour, black
Ass. Operating temperature 0-40 °C
Weight: 4.8 kg.
Speaker type 15"
Gross weight: 5.5 kg
Impedance (Z) 8 Ω
Resonant frequency (fs): 47.5 Hz
Music load capacity (MAX) 600 W
Voice coil diameter 64 mm
Hole diameter 369 mm
Suspension compliance (Cms) 0.14 mm / N
Moving mass (MMS): 82.07 g
Mechanical quality (QMS): 4.486
Electrical quality (QES): 0.529
Overall quality (Qts): 0.473
Equivalent volume (Vas): 141.8 l
Direct current resistance (Re) 6.82 Ω
Power factor (WxL) 17.78 Tm
Voice coil former (Le):1.31 mH
Voice coil former: Glass fiber
Linear deflection (XMAX): ± 5.25 mm
Effective Membrane area (SD): 855.30 cm2
Magnet weight: 1.4 kg
Voice coil length 14.5 mm
Voice coil material: Copper wire

Product type: Subwoofer

Speaker size (inch): 15 inch

RMS capacity: 300 W

Max. load: 600 W

Min. frequency: 45 Hz

Max. frequency: 3500 Hz

Impedance: 8 Ω

Sound pressure: 97 dB

Recess diameter: 35.2 cm

Recess depth: 16.3 cm

Weight: 4.8 kg

Factory colour: Black

Frequency range: 45 Hz - 3500 Hz

Depth: 16.3 cm

Height: 38.5 cm

Width: 38.5 cm

Documents & Downloads

Datasheet

Datasheet 3340902 Monacor TF1525E/8 15 inch Subwoofer 300 W 8 Ω

User & Safety Instructions

User & Safety Instructions 3340902 Monacor TF1525E/8 15 inch Subwoofer 300 W 8 Ω

Description

TF1525E/8 PA WOOFER, 300 W, 8 Ω

This text is machine translated.

Features

Impedance (Z) 8 Ω
Transmission technology: Cable
Frequency range 45-3500 Hz
Resonance frequency (fs): 47.5 Hz
Nominal capacity (RMS) 300 W.
Music load capacity (MAX) 600 W
Characteristic sound pressure 97 dB/W/m
Suspension (Cms): 0.14 mm/N
Moving earth (Mms): 82.07 g
Mechanical quality (Qms): 4.486
Electrical quality (QES): 0.529
Overall quality (Qts): 0.473
Equivalent volume (Vas): 141.8 l
Direct current resistance (Re): 6.82 Ω
Power factor (WxL) 17.78 Tm
Voice coil former (Le): 1.31 mH
Voice coil diameter: Ø 64 mm
Voice coil length 14.5 mm
Voice coil material: Copper wire
Voice coil former: Glass fiber
Linear deflection (XMAX): ± 5.25 mm
Effective Membrane area (Sd): 855.30 cm²
Magnet weight: 1.4 kg
Mounting hole dia. 352 mm.
Installation depth: 163 mm
Hole diameter: Ø 369 mm
Dimensions: Ø 385 mm x 163 mm
Outer diameter: Ø 385 mm
Width: Ø 385 mm
Height: Ø 385 mm
Depth: 163 mm
Colour, black
Ass. Operating temperature 0-40 °C
Weight: 4.8 kg.
Packing: 1
Speaker type 15"
Packaging dimensions (W x H x L) 0.406 x 0.18 x 0.406 m
Gross weight: 5.5 kg
Net weight: 4.8 kg
