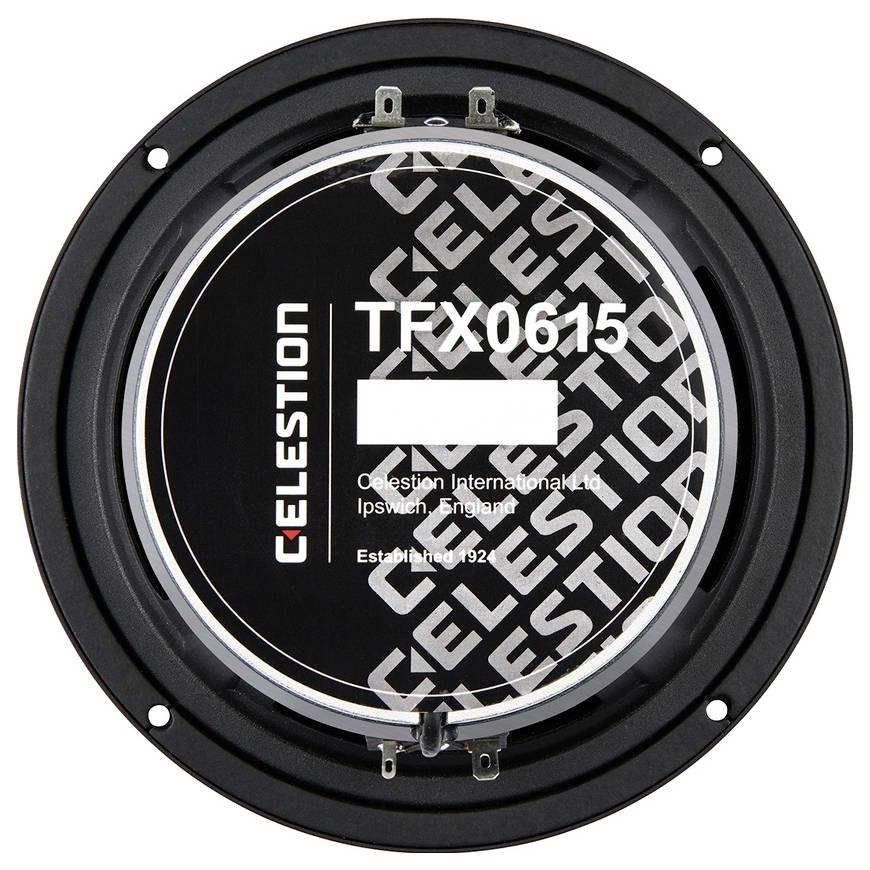

Monacor TFX0615/8 Tweeter 10 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 2.1 kg
- Transmission technology: Cable

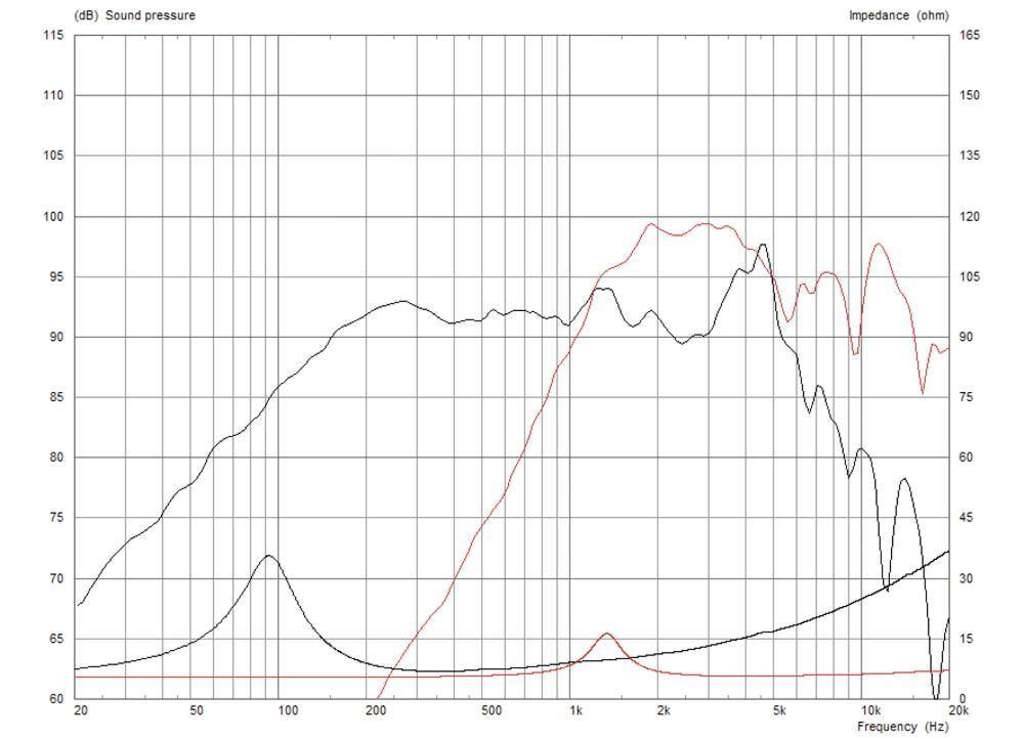

- Frequency range: 100-6000 Hz (low frequency)1700-20000 Hz (high frequency)
- RMS: 150 W (low frequency) / 10 W (high frequency tone)
- Acoustic pressure: 94 dB (low frequency) / 98 dB (high-tone)
- Installation opening: 145 mm
- Installation depth: 75.5 mm
- Dimensions 178 x 178 x 75.5 mm
- Outer diameter: 178 mm
- Width 178 mm
- Height: 178 mm
- Depth: 75.5 mm
- Colour, black
- Weight: 2.1 kg.
- Speaker type 6.5"
- Gross weight: 2.65 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 97 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- Music resiliency (MAX) 300 W (low frequency) / 20 W (high frequency)
- Voice coil diameter: Ø 38 mm (low frequency) / 25 mm (high frequency)
- Hole diameter 168 mm
- Suspension compliance (Cms) 0.21 mm / N
- Moving mass (MMS): 12.62 g
- Mechanical quality (QMS): 3.038
- Electrical quality (QES): 0.429
- Overall quality (Qts): 0.376
- Equivalent volume (Vas): 7.2 l
- Direct current resistance (Re) 5.39 Ω
- Power factor (WxL) 9.82 Tm
- Voice coil former (Le):0.46 mH
- Voice coil former: Polyimide
- Linear deflection (XMAX): 5.25 mm
- Effective Membrane area (SD): 153.944 cm2
- Magnet weight: 0.81 kg
- Voice coil length 6 mm
- Voice coil material: Copper wire
- Angle of radiation horizontal 110°
- Angle of radiation vertical 110°
- Product type
Tweeter
- RMS capacity
10 W
- Max. load
20 W
- Min. frequency
1700 Hz
- Max. frequency
20 kHz
- Frequency range
1700 Hz - 20 kHz
- Sound pressure
98 dB
- Impedance
8 Ω
- Recess depth
75.5 mm
- Weight
2.1 kg
- Factory colour
Black
- Length
7.55 cm
- Width
17.8 cm
- Height
17.8 cm
- (Ø)
17.8 cm
- Recess diameter
14.5 mm
- Speaker size (inch)
6.5 inch
Documents & Downloads
Datasheet
Datasheet 3340861 Monacor TFX0615/8 Tweeter 10 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340861 Monacor TFX0615/8 Tweeter 10 W 8 Ω
Description

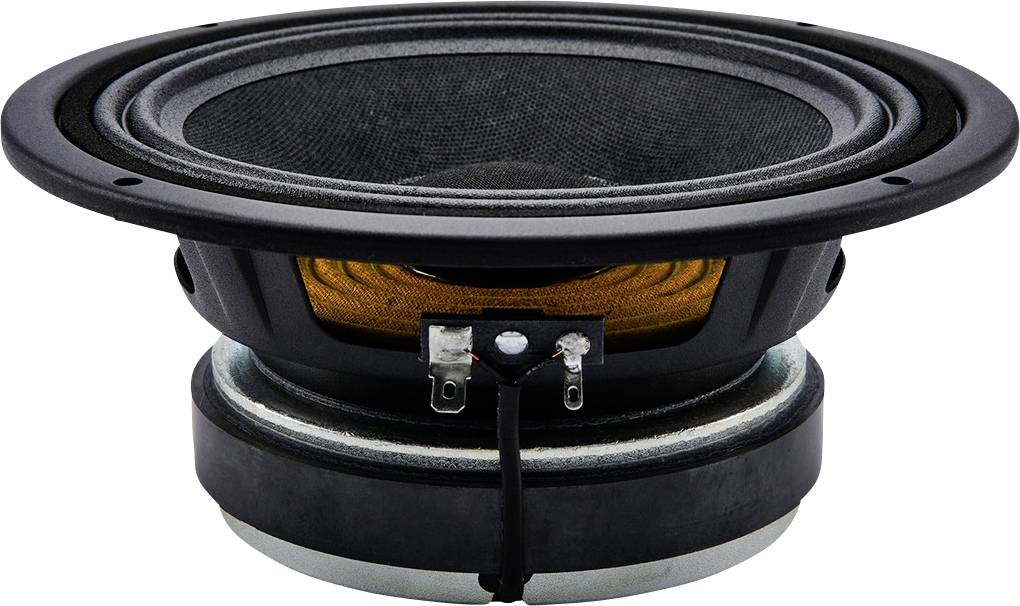

PA COAXIAL LOUDSPEAKER, 150 W, 8 Ω
16.5 cm coaxial loudspeaker (6½") with stable metal basket 25 mm tweeter (1") with silk dome and neodymium magnet Integrated tweeter waveguide Nominal tweeter angle 110°
This text is machine translated.
16.5 cm coaxial loudspeaker (6½") with stable metal basket 25 mm tweeter (1") with silk dome and neodymium magnet Integrated tweeter waveguide Nominal tweeter angle 110°
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range:100-6000 Hz (low frequency);1700-20000 Hz (high-frequency)
- Resonance frequency (fs): 97 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- RMS: 150 W (low frequency) / 10 W (high frequency tone)
- Music resiliency (MAX) 300 W (low frequency) / 20 W (high frequency)
- Acoustic pressure: 94 dB (low frequency) / 98 dB (high-tone)
- Angle of radiation horizontal 110°
- Angle of radiation vertical 110°
- Suspension (Cms): 0.21 mm/N
- Moving earth (Mms): 12.62 g
- Mechanical quality (Qms): 3.038
- Electrical quality (QES): 0.429
- Overall quality (Qts): 0.376
- Equivalent volume (Vas): 7.2 l
- Direct current resistance (Re): 5.39 Ω
- Power factor (WxL) 9.82 Tm
- Voice coil former (Le): 0.46 mH
- Voice coil diameter: Ø 38 mm (bass) / Ø 25 mm (tweeter)
- Voice coil length 6 mm
- Voice coil material: Copper wire
- Voice coil former: Polyimide
- Linear deflection (XMAX): 5.25 mm
- Effective Membrane area (Sd): 153.944 cm²
- Magnet weight: 0.81 kg
- Mounting hole dia. 145 mm.
- Installation depth: 75.5 mm
- Hole diameter: Ø 168 mm
- Dimensions 178 x 178 x 75.5 mm
- Outer diameter: Ø 178 mm
- Width 178 mm
- Height: 178 mm
- Depth: 75.5 mm
- Colour, black
- Weight: 2.1 kg.
- Packing: 1
- Speaker type 6.5"
- Packaging dimensions (W x H x L) 0.24 x 0.15 x 0.24 m
- Gross weight: 2.65 kg
- Net weight: 2.1 kg
