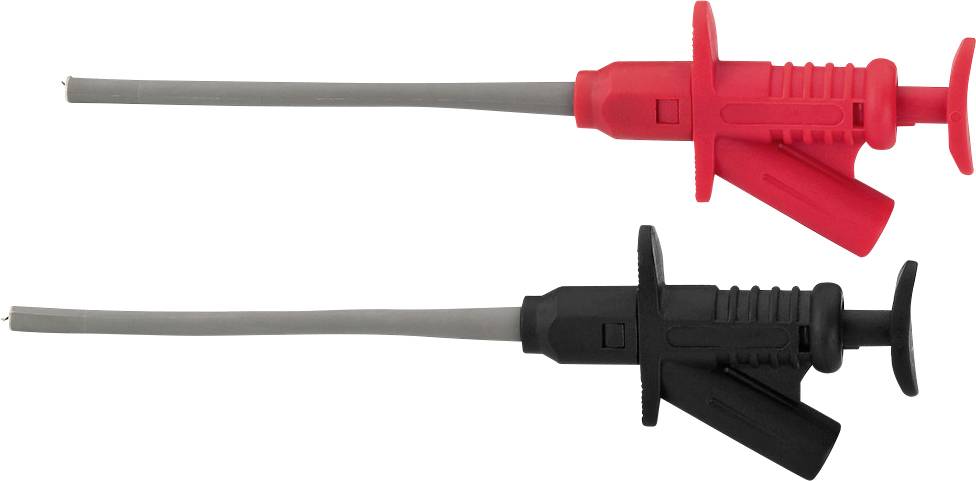

Monacor TH-40 Test clip 0070160 Spring-loaded terminal CAT III 1000 V Red, Black 1 Pair
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
TH-40 clip probe pair, 5 A
- CAT III 1000 V
- Nominal current 5 A
- Socket Ø Red, Black
Technical specifications
- Net weight: 0.047 kg
- Colours, red/black
- Ass. Operating temperature 0-40 °C
- Weight: 47 g
- Gross weight: 0.049 kg
- Length: 160 mm
- Spring-loaded terminals
- Type: Clip probe pair
- Suitable for TLP- series test leads...
- Nominal value 5 A.
- CAT II (1000 V)
- Product type
Test clip
- Connection
Spring-loaded terminal
- Factory colour
Red
Black
- Reading category
CAT III 1000 V
- Length
160 mm
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Max. length
160 mm
- Width
0.07 m
- Height
0.015 m
- Plug features
Scoop-proof
Documents & Downloads
Datasheet
Datasheet 3340610 Monacor TH-40 Test clip 0070160 Spring-loaded terminal CAT III 1000 V Red, Black 1 Pair
User & Safety Instructions
User & Safety Instructions 3340610 Monacor TH-40 Test clip 0070160 Spring-loaded terminal CAT III 1000 V Red, Black 1 Pair
Description
Pair of terminal test probes, 5 A,
For plugging on the test leads of the TLP-... series

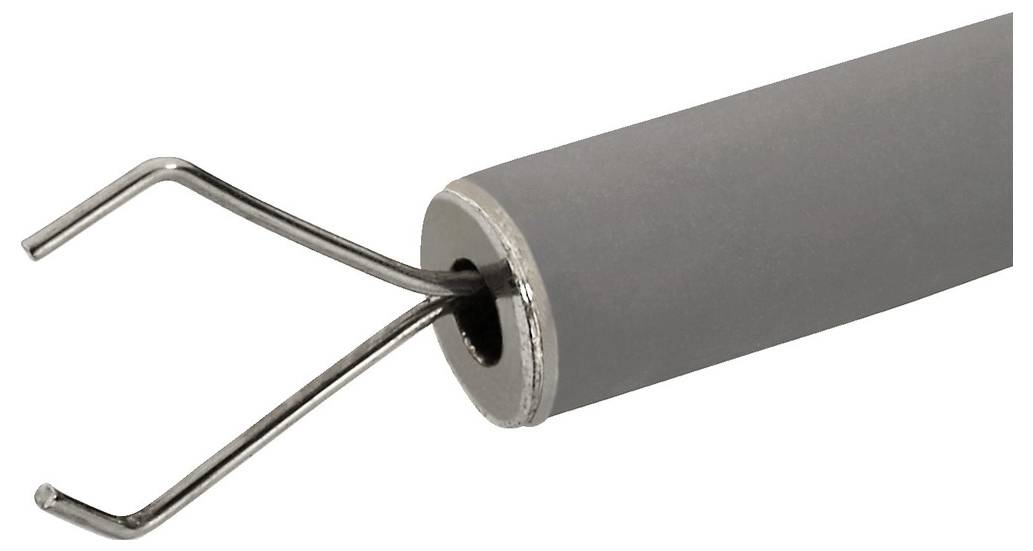

Colour: Red and black Flexible shaft Retractable spring wire clamps In accordance with CAT II (1000 V) Protection against accidental contact through hidden plug contacts, Ø 4 mm Overall length: 160 mm
This text is machine translated.
For plugging on the test leads of the TLP-... series
Colour: Red and black Flexible shaft Retractable spring wire clamps In accordance with CAT II (1000 V) Protection against accidental contact through hidden plug contacts, Ø 4 mm Overall length: 160 mm
This text is machine translated.
Features
- Type: Clip probe pair
- Nominal value 5 A.
- CAT II (1000 V)
- Colour: red.
- Black
- Suitable for TLP- series test leads...
- Ass. Operating temperature 0-40 °C
- Length: 160 mm
- Weight: 47 g
- Spring-loaded terminals
- Packing: 1
- Packaging dimensions (W x H x L) 0.07 x 0.015 x 0.17 m
- Gross weight: 0.049 kg
- Net weight: 0.047 kg
