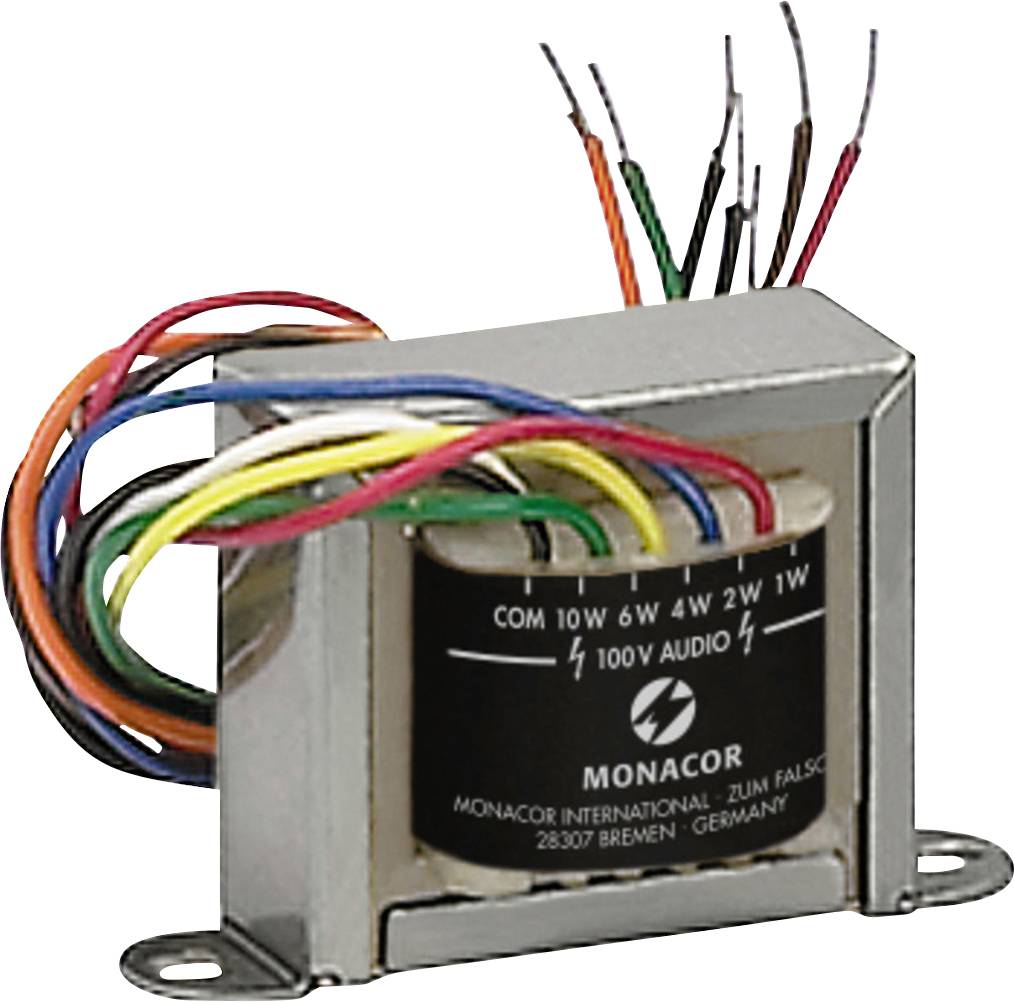

Monacor TR-175/10 100V transformer
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.287 kg
- Frequency range 35-25000 Hz
- Dimensions 71 x 42 x 40 mm
- Weight: 287 g
- Output 10 W
- Primary 10/6/4/2/1 W
- Secondary 4/8/16 Ω
- Product type
100V transformer
- Load capacity (primary/secondary)
Primär: 10/6/4/2/1 W Sekundär: 4/8/16 Ω
- Weight
287 g
- RMS capacity
10 W
Documents & Downloads
Datasheet
Datasheet 3341032 Monacor TR-175/10 100V transformer
User & Safety Instructions
User & Safety Instructions 3341032 Monacor TR-175/10 100V transformer
Description
100 V high power audio transformer
An external 100 V transformer, such as an amplifier or speaker without an integrated 100 V audio transformer, is required to have an external 10 W.
This text is machine translated.
An external 100 V transformer, such as an amplifier or speaker without an integrated 100 V audio transformer, is required to have an external 10 W.
This text is machine translated.
Features
- Output 10 W
- Primary 10/6/4/2/1 W
- Secondary 4/8/16 Ω
- Frequency range 35-25000 Hz
- Dimensions 71 x 42 x 40 mm
- Weight: 287 g
