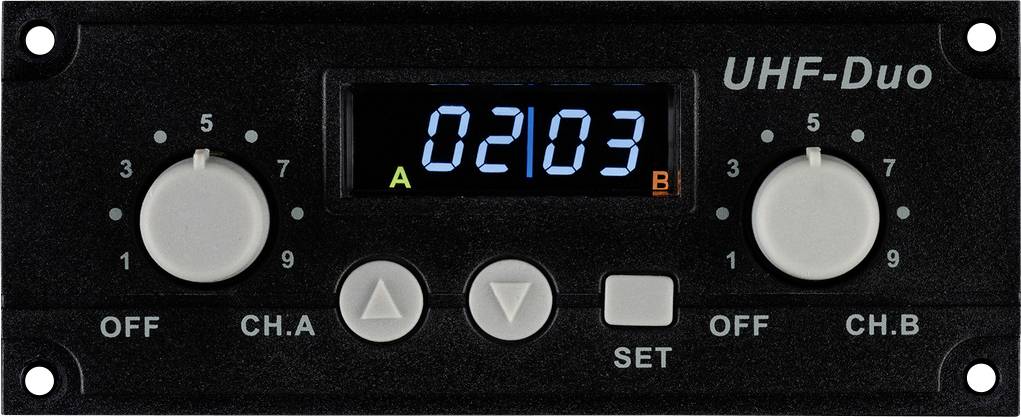

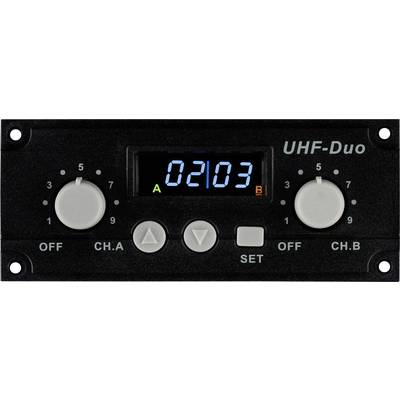

Monacor TXA-1822MR UHF-PLL receiver
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.09 kg
- Ass. Operating temperature 0-40 °C
- Channels: 2
- Multi-frequency receiver module
- Carrier frequency range 863-865 MHz
- General data: Missing value
- Recipient data: Missing Value
- Power supply receiver DC 12 V/185 mA
- Wide receiver 88 mm
- Receiver height 37 mm
- Depth of receiver 103 mm
- Receiver weight 92 g
- Product type
UHF-PLL receiver
- Dim
(W x H x D) 88 x 37 x 103 mm
- Weight
0.09 kg
- Width
88 mm
- Height
37 mm
- No. of frequencies (adjustable)
16
- Channels
2
- Depth
103 mm
- Transmission frequency
863-865 MHz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340653 Monacor TXA-1822MR UHF-PLL receiver
User & Safety Instructions
User & Safety Instructions 3340653 Monacor TXA-1822MR UHF-PLL receiver
Description
2-channel multi-frequency receiver module
In UHF PLL technology.
For retrofitting of the TXA-10xxer and TXA-8xxer amplifier systems or for building radio audio transmission lines
2 x 16 adjustable UHF frequencies (863-865 MHz) volume control LCD-display for selected channel and carrier signal Scan function for free channel Inclusive adapter board for TXA-1020 and TXA-800er series
No registration or charges required in the EU.
This text is machine translated.
In UHF PLL technology.
For retrofitting of the TXA-10xxer and TXA-8xxer amplifier systems or for building radio audio transmission lines
2 x 16 adjustable UHF frequencies (863-865 MHz) volume control LCD-display for selected channel and carrier signal Scan function for free channel Inclusive adapter board for TXA-1020 and TXA-800er series
No registration or charges required in the EU.
This text is machine translated.
Features
- Multi-frequency receiver module
- Carrier frequency range 863-865 MHz
- Channels: 2
- Ass. Operating temperature 0-40 °C
- Power supply receiver DC 12 V/185 mA
- Wide receiver 88 mm
- Receiver height 37 mm
- Depth of receiver 113 mm
- Receiver weight 92 g
