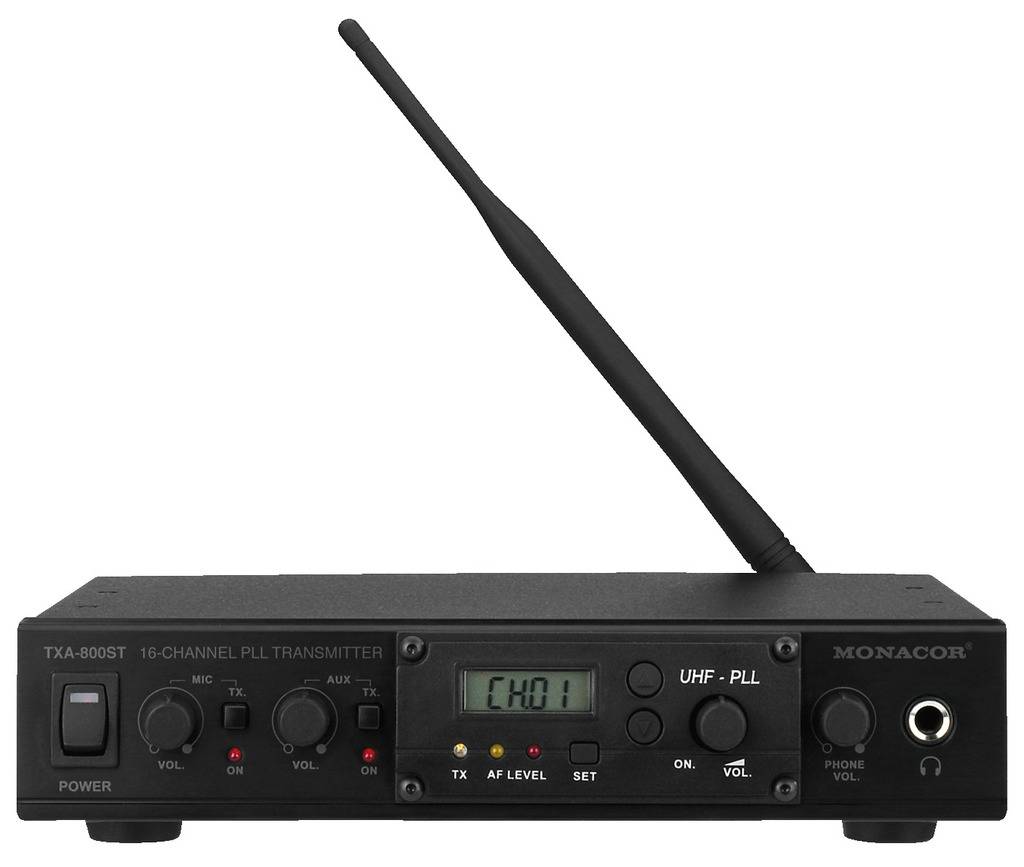

Monacor TXA-800ST Radio transmitter
EAN:
Part number:
Item no:
Highlights & Details
Monacor TXA-800 ST transmitter module
- Through the combination with the TXA-800 and TXA-1000-series serve as a "tour guide system", and for all other applications where a particular sound or voice-source to be distributed for one or more of the receiver
- This text is machine translated.
Technical specifications
- Product type
Radio transmitter
- Factory colour
Black
- Dim
(L x W x H) 210 x 215 x 50 mm
- Weight
1.25 kg
- Length
210 mm
- Width
215 mm
- Height
50 mm
- No. of inputs
2 x
- No. of frequencies (adjustable)
16
- Channels
16
- No of. 6.3 mm microphone inputs
1 x
- No. of microphone XLR inputs
1 x
- Transmission frequency
863.1-864.9 MHz
- Type
Stand
- Interfaces
RCA in
Microphone (6.3 mm jack)
Microphone input
Audio mono (1 x RCA)
Headphone input
- Features
Steel enclosure
- Transfer type
Radio
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332850 Monacor TXA-800ST Radio transmitter
Description
Features
- Professional 16-channel mono-PLL audio transmission system, 863-865 MHz, with extensive accessories
- Compatible with the mobile amplifier systems TXA-800 and TXA-1000-series
- Through the combination with the TXA-800 and TXA-1000-series serve as a "tour guide system", and for all other applications where a particular sound or voice-source to be distributed for one or more of the receiver
- Can be combined with transmitters and receivers of the ATS-16-series
- Simultaneous operation of up to 8 channels of different frequencies (depending on the transmitter distance, localized RF interference sources and other local conditions)
- Free registration and in the EU
- 16-channel PLL transmitter for microphone and line-in audio signals
- Compatible with the receivers TXA-800 R, ATS-16R and the portable amplifiers of the TXA-800 Series
- 16 selectable UHF frequencies (863,1-864.9 MHz)
- Audio stereo line input via RCA L/R
- Balanced XLR and 6.3-mm jack microphone input
- Audio-mono line output via RCA
- Adjustable headphone output
- Backlit LCD display for channel/frequency, LEDs for carrier, signal and the Signal Peak
- Additional direct voltage output 10-15 V DC for connecting an additional transmitter
- 482 mm (19") rack mounting with supplied mounting angles possible
- Power supply via suppl. Plug-in power supply
- Free registration and in the EU!
Scope of delivery
- Power supply
- 19" mounting bracket.
