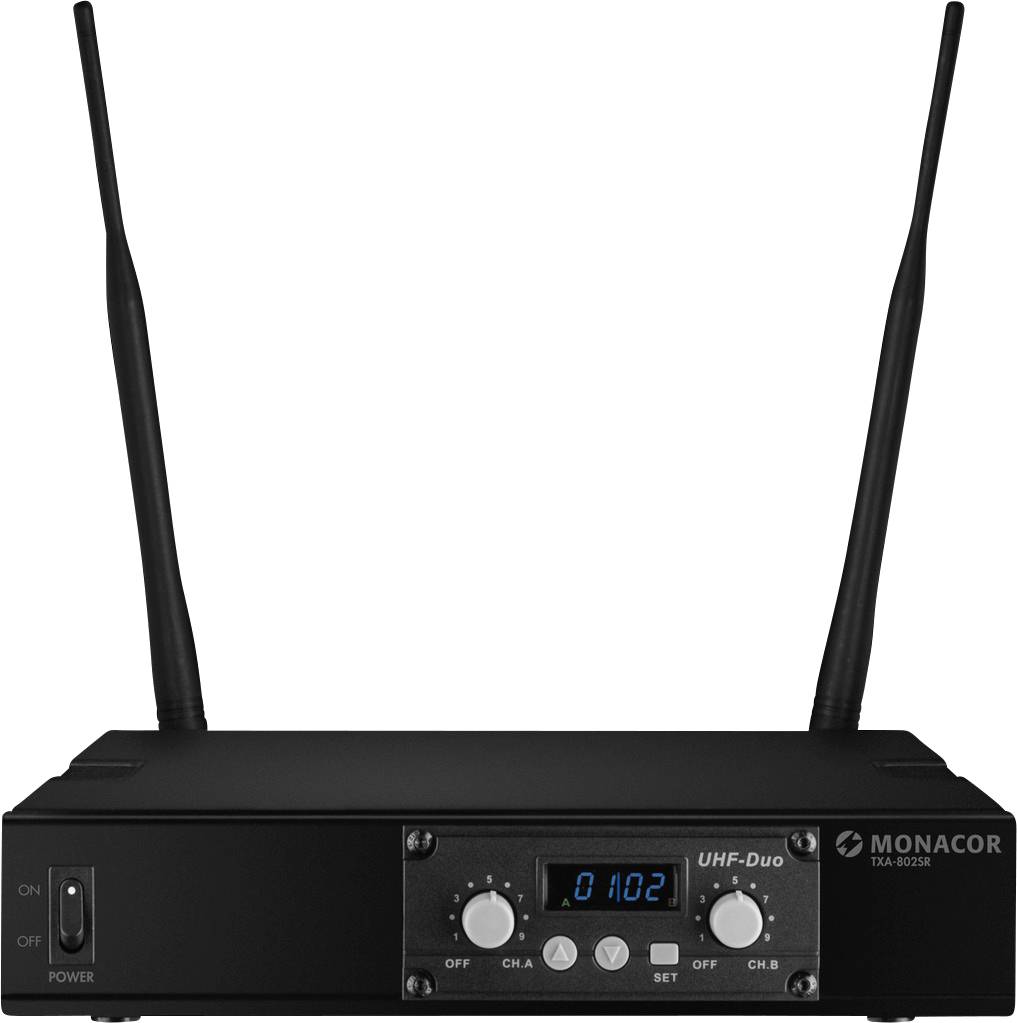

Monacor TXA-802SR UHF-PLL receiver
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.34 kg
- Ass. Operating temperature 0-40 °C
- Channels: 2
- Type: Receiver unit
- Carrier frequency range 863.1 - 864.9 MHz
- General data: Missing value
- Recipient data: Missing Value
- Power supply receiver: Via enclosed Mains adapter
- Wide receiver 215 mm
- Receiver height 50 mm
- Depth of receiver 210 mm
- Receiver weight 1.2 kg
- Audio signal receiver 30 mV (XLR),730 mV (6.3 mm jack, high),80 mV (6.3 mm jack, low)
- Connections receiver: 1 x XLR, balanced ,1 x 6.3 mm jack, unbalanced
- Product type
UHF-PLL receiver
- Dim
(W x H x D) 215 x 50 x 210 mm
- Weight
1.2 kg
- Width
215 mm
- Height
50 mm
- No. of frequencies (adjustable)
16
- Channels
2
- Depth
210 mm
- Interfaces
XLR out
- No of. XLR outputs
1 x
- Transmission frequency
863.1-864.9 MHz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340572 Monacor TXA-802SR UHF-PLL receiver
User & Safety Instructions
User & Safety Instructions 3340572 Monacor TXA-802SR UHF-PLL receiver
Description
2-channel multi-frequency receiver
In UHF PLL technology
Suitable for the transmitters TXA-800HT, TXA-800HSE, TXA-800ST and ATS-12HT 2 x 16 adjustable UHF frequencies (863.1-864.9 MHz) Scan function for free channel Volume control LCD display for selected channel and carrier signal Symmetric XLR and 6.3 mm jack output 482 mm rack installation (19") of 2 devices with the supplied mounting brackets Power supply via the supplied mounting instructions Plug-in power supply dimensions 215 x 50 x 210 mm weight 1.2 kg
No registration or charges required in the EU!
This text is machine translated.
In UHF PLL technology
Suitable for the transmitters TXA-800HT, TXA-800HSE, TXA-800ST and ATS-12HT 2 x 16 adjustable UHF frequencies (863.1-864.9 MHz) Scan function for free channel Volume control LCD display for selected channel and carrier signal Symmetric XLR and 6.3 mm jack output 482 mm rack installation (19") of 2 devices with the supplied mounting brackets Power supply via the supplied mounting instructions Plug-in power supply dimensions 215 x 50 x 210 mm weight 1.2 kg
No registration or charges required in the EU!
This text is machine translated.
Features
- Type: Receiver unit
- Carrier frequency range 863.1 - 864.9 MHz
- Channels: 2
- Ass. Operating temperature 0-40 °C
- Audio signal receiver 30 mV (XLR),;730 mV (6.3 mm jack
- High), 80 mV (6.3 mm jack
- Low)
- Power supply receiver: Via enclosed Mains adapter
- Wide receiver 215 mm
- Receiver height 50 mm
- Depth of receiver 210 mm
- Receiver weight 1.2 kg
- Receiver connections 1 x XLR
- Bal.,;1 x 6.3-mm jack
- /unbalanced
