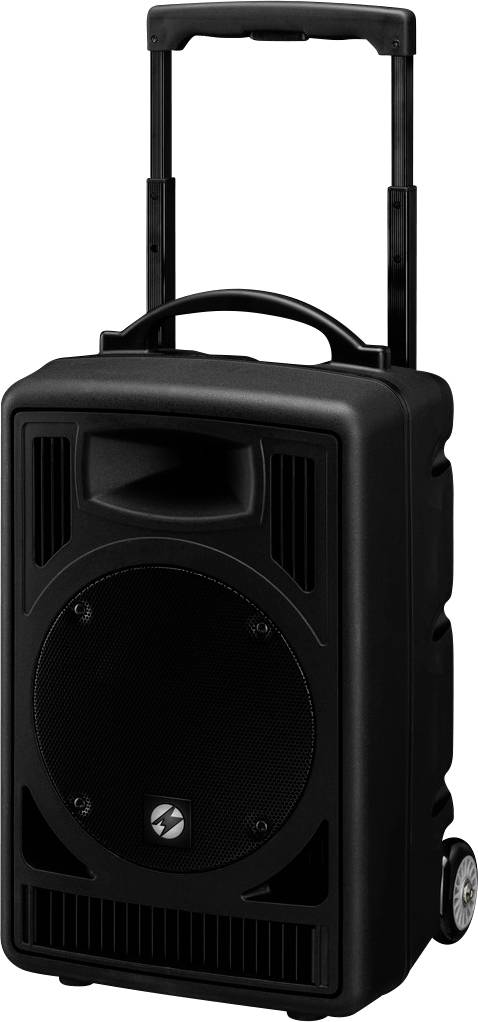

Monacor TXA-820 Portable PA system
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 14.73 kg
- Frequency range 70-17000 Hz
- Dimensions 305 x 510 x 265 mm
- Ass. Operating temperature 0-40 °C
- Weighs 14.5 kg.
- Inputs: 6 mV (Mic), 300 mV (Line)
- Power supply: " 230 V/50 Hz/130 VA, battery 2 x 12 V/4.5 Ah
- Nominal power (PRMS) 50 W
- Total output power: 80 W.
- Carrier frequency 863-865 MHz
- Range ≈ 30 m
- Max. Sound pressure 114 dB
- 1 x XLR/6.3 mm jack (mic/line),1 x 6.3 mm jack (mic),1 x RCA L/R (line out), 1 x 3.5 mm jack (line out)
- Sound control, bass: ±10 dB/100 Hz
- Sound control, trebles: ±10 dB/10 kHz
- Link: Optional (TXA-820MT)
- Product type
Portable PA system
- Max. frequency
17000 Hz
- Min. frequency
70 Hz
- Interfaces
XLR in
6.3 mm jack in
RCA out
3.5 mm jack out
- Weight
14.5 kg
- Width
30.5 cm
- Height
51 cm
- Length
26.5 cm
- Max. audio capacity
80 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340937 Monacor TXA-820 Portable PA system
User & Safety Instructions
User & Safety Instructions 3340937 Monacor TXA-820 Portable PA system
Description
Portable amplifier system
With integrated 1-channel multi-frequency receiver unit in UHF PLL technology and Bluetooth receiver

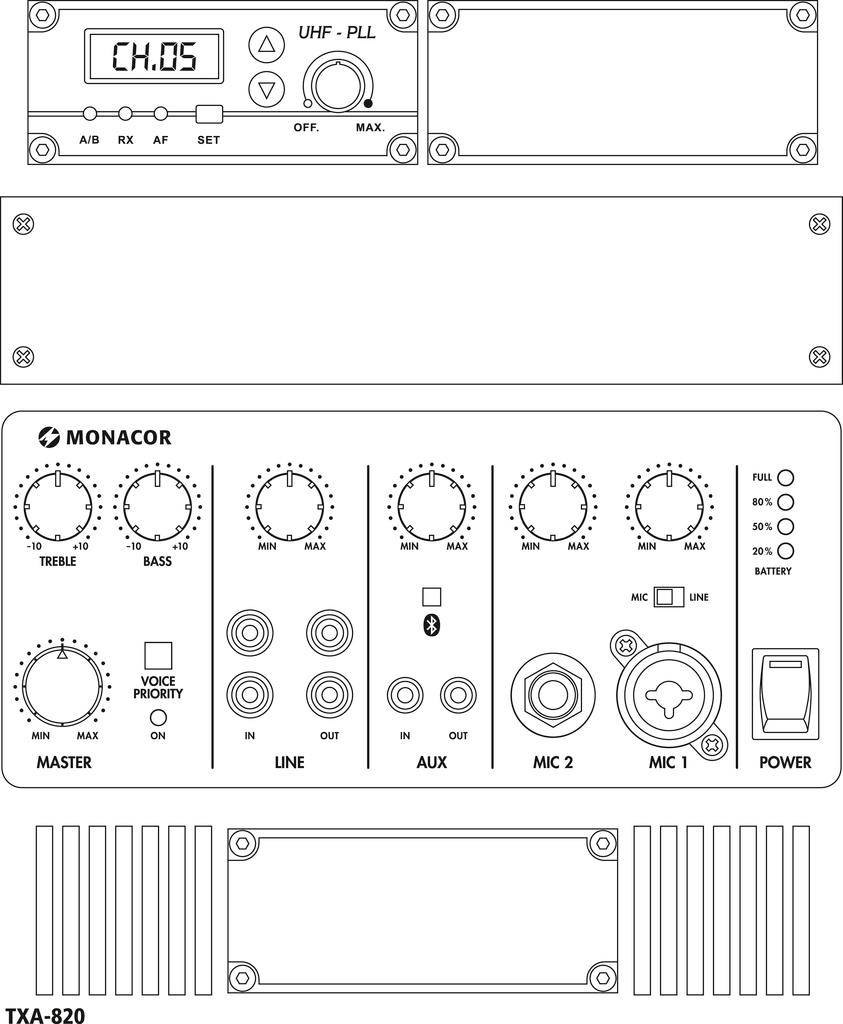

Operation via mains connection or built-in lead-gel battery 2 x 12 V/4.5 Ah (up to 5 hours operating time), integrated battery charger with charge status indicator, discharge protection For mobile use e.g. at sales events, lectures 16 adjustable UHF-frequencies (1 MHz) with Diversity system Powerful 1-way loudspeaker system 6.3 microphone input via combination socket (XLR/6.3-mm jack), 2 microphone input (1-mm jack), 863-865 cinch input, cinch input, cinch input, cinch input) 1 Aux input (3.5-mm jack), all inputs can be regulated Common master controller, 2-way sound regulation 1 Stereo line output (cinch), 1 Aux output (3.5-mm jack) Switchable microphone priority function By the extendable telescopic handle and 2 rollers the amplifier system can be pulled comfortably like a trolley Stand sleeve
No registration or charges required in the EU.
This text is machine translated.
With integrated 1-channel multi-frequency receiver unit in UHF PLL technology and Bluetooth receiver
Operation via mains connection or built-in lead-gel battery 2 x 12 V/4.5 Ah (up to 5 hours operating time), integrated battery charger with charge status indicator, discharge protection For mobile use e.g. at sales events, lectures 16 adjustable UHF-frequencies (1 MHz) with Diversity system Powerful 1-way loudspeaker system 6.3 microphone input via combination socket (XLR/6.3-mm jack), 2 microphone input (1-mm jack), 863-865 cinch input, cinch input, cinch input, cinch input) 1 Aux input (3.5-mm jack), all inputs can be regulated Common master controller, 2-way sound regulation 1 Stereo line output (cinch), 1 Aux output (3.5-mm jack) Switchable microphone priority function By the extendable telescopic handle and 2 rollers the amplifier system can be pulled comfortably like a trolley Stand sleeve
No registration or charges required in the EU.
This text is machine translated.
Features
- POWER RATING (PRMS): 50 W.
- Output power
- Total: 80 W
- Frequency range 70-17000 Hz
- Carrier frequency 863-865 MHz
- Range ≈ 30 m
- Inputs: 6 mV (Mic),; 300 mV (Line)
- Link: Optional (TXA-820MT)
- Max. Sound pressure 114 dB
- Sound controller
- Bass: ±10 dB/100 Hz
- Sound controller
- Treble: ±10 dB/10 kHz
- Power supply: " 230 V/50 Hz/130 VA,;rechargeable battery 2 x 12 V/4.5 Ah
- Ass. Operating temperature 0-40 °C
- Dimensions 305 x 510 x 265 mm
- Weighs 14.5 kg.
- 1 x XLR/6.3 mm jack (mic/line),;1 x 6.3 mm jack (mic),;1 x RCA L/R (line out),; 1 x 3.5 mm jack (line out)
