Monacor TXA-820MT UHF-PLL transmitter
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.08 kg
- Ass. Operating temperature 0-40 °C
- Range: approx. 30 m
- Channels: 1
- Type: Multi-frequency transmitter module
- Carrier frequency range 863-865 MHz
- Transmitted power ≤ 10 mW
- General data: Missing value
- Transmitter data: Missing Value
- Power supply transmitter DC 12 V/120 mA
- Wide transmitter 88 mm
- Height of transmitter 37 mm
- Depth of transmitter 103 mm
- Weight Transmitter 80 g
- Product type
UHF-PLL transmitter
- Dim
(W x H x D) 88 x 37 x 103 mm
- Weight
80 g
- Width
88 mm
- Height
37 mm
- No. of frequencies (adjustable)
16
- Channels
1
- Depth
103 mm
30 m
- Transmission frequency
863-865 MHz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340654 Monacor TXA-820MT UHF-PLL transmitter
User & Safety Instructions
User & Safety Instructions 3340654 Monacor TXA-820MT UHF-PLL transmitter
Description
Multi-frequency transmitter module
In UHF PLL technology.
For retrofitting of the TXA-820 amplifier systems or for building radio audio transmission circuits.

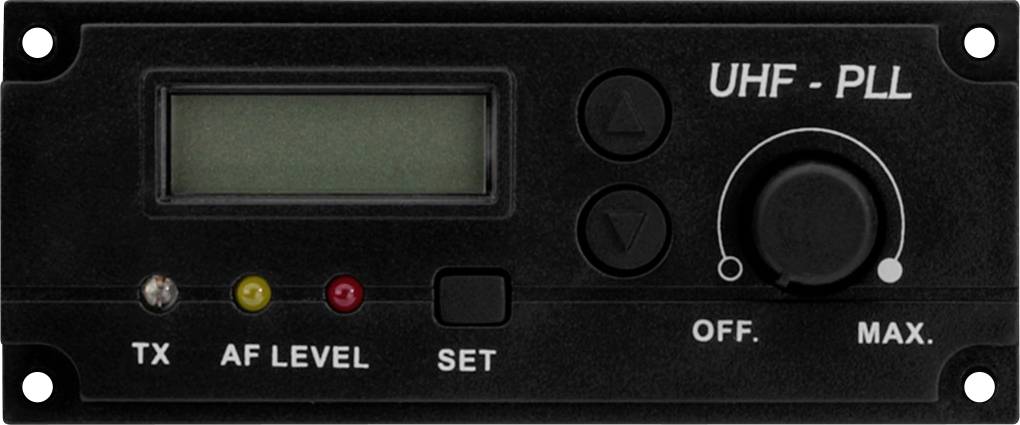

16 adjustable UHF frequencies (863-865 MHz) Volume control LCD display for selected channel/frequency LEDs for carrier and audio signal
No registration or charges required in the EU.
This text is machine translated.
In UHF PLL technology.
For retrofitting of the TXA-820 amplifier systems or for building radio audio transmission circuits.
16 adjustable UHF frequencies (863-865 MHz) Volume control LCD display for selected channel/frequency LEDs for carrier and audio signal
No registration or charges required in the EU.
This text is machine translated.
Features
- Type: Multi-frequency transmitter module
- Carrier frequency range 863-865 MHz
- Channels: 1
- Ass. Operating temperature 0-40 °C
- Transmitted power ≤ 10 mW
- Range: approx. 30 m
- Power supply transmitter DC 12 V/120 mA
- Wide transmitter 88 mm
- Height of transmitter 37 mm
- Depth of transmitter 113 mm
- Weight Transmitter 80 g
