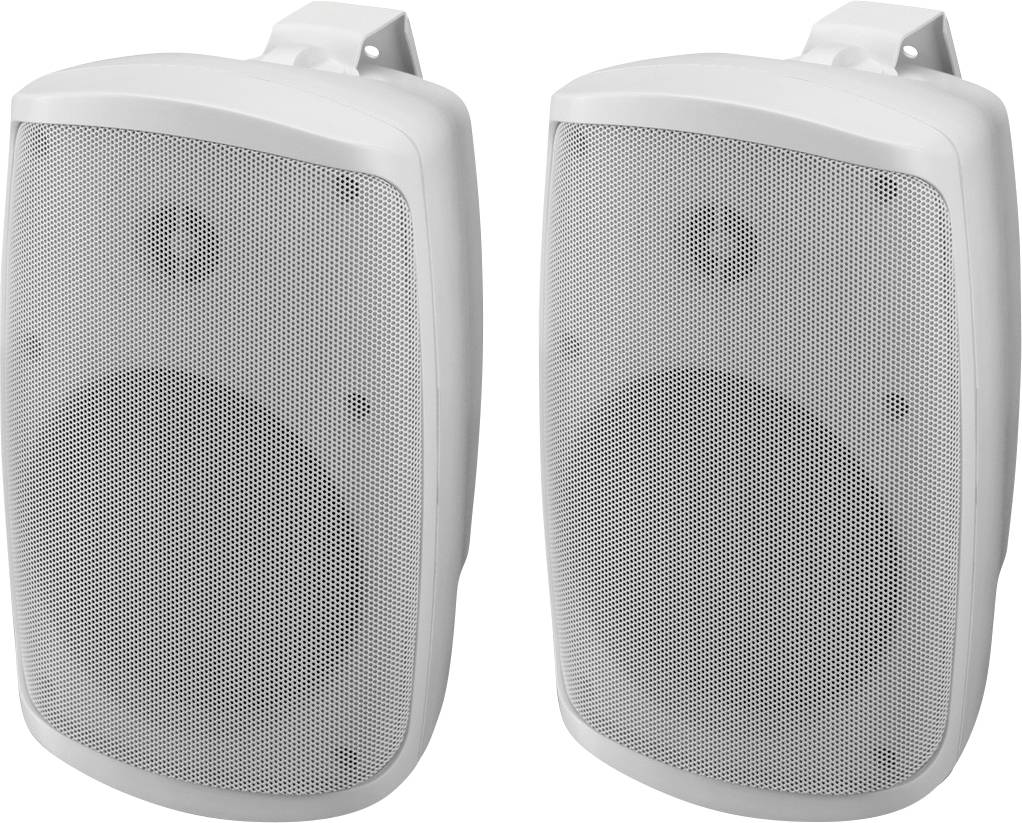

Monacor WALL-05SET/WS Wall-mounted speaker White 50 W 80 Hz - 20000 Hz 1 Pair
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 5.63 kg
- Transmission technology: Cable
- Frequency range 80-20000 Hz
- Characteristic sound pressure 89 dB/W/m
- Dimensions 163 x 252 x 203 mm (with bracket)
- Width 163 mm
- Height: 252 mm
- Depth: 203 mm
- Colour: White
- Ass. Operating temperature 0-40 °C
- Weight 5.5 kg (pair).
- Gross weight: 6.9 kg
- Max. Nominal sound pressure 104 dB
- Inputs 1 x RCA L/R (unbalanced)
- 1 x terminal L/R (balanced)
- LS-clamp terminal (passive box)
- Loudspeaker clamping terminal
- Power supply: " 230 V/50 Hz/100 VA
- Nominal power 2 x 30 W
- Angle of radiation H110°/V90°
- Total output power 2 x 50 W
- Other: Pair
- Angle of radiation horizontal 110°
- Angle of radiation vertical 90°
- Active/passive: Active/passive
- 2-way system
- Housing material: Plastic
- Input signal: 500 mV/20 kΩ (unbalanced)660 mV/40 kΩ (sym.)
- 5" (13 cm) bass
- Number of built-in LS chassis: 2
- Speaker size 13 cm (5")
- Mounting unit: Mounting bracket
- Tweeter: Dome tweeter
- Content
1 Pair
- Max. audio capacity
50 W
- Min. frequency
80 Hz
- Max. frequency
20000 Hz
- Frequency range
80 Hz - 20000 Hz
- Factory colour
White
- Width
163 mm
- Height
252 mm
- Dim
(L x W x H) 203 x 163 x 252 mm
- Audio power range (max.)
- 100 W
- Product type
Wall-mounted speaker
- Length
203 mm
- Max. sound pressure
104 dB
Documents & Downloads
Datasheet
Datasheet 3340496 Monacor WALL-05SET/WS Wall-mounted speaker White 50 W 80 Hz - 20000 Hz 1 Pair
User & Safety Instructions
User & Safety Instructions 3340496 Monacor WALL-05SET/WS Wall-mounted speaker White 50 W 80 Hz - 20000 Hz 1 Pair
Description
Active 2-way stereo speaker system, 2 x 30 W

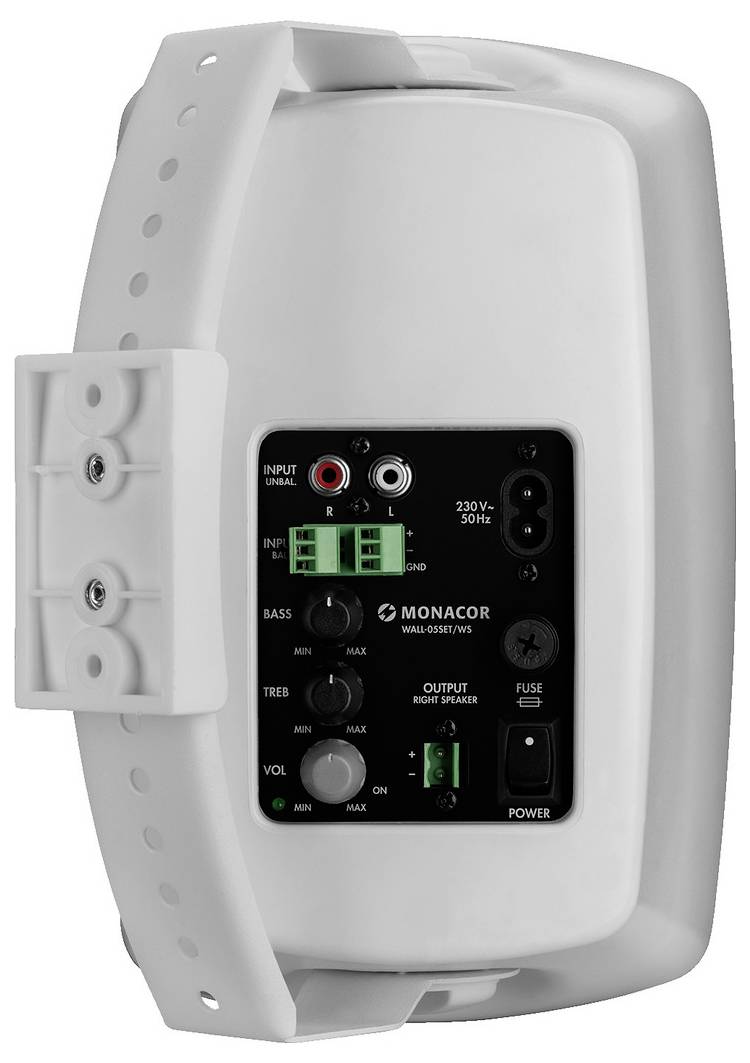

The set consists of an active speaker and a passive speaker. The passive box is connected to the active box via a screw terminal active box with integrated 2-channel amplifier stereo cinch input or balanced L/R input via screw terminal strip Volume control and 2-way sound control Auto standby 13 cm bass system (5") and dome tweeter Attractive white plastic mounting bracket, pivoting and tilting
This text is machine translated.
The set consists of an active speaker and a passive speaker. The passive box is connected to the active box via a screw terminal active box with integrated 2-channel amplifier stereo cinch input or balanced L/R input via screw terminal strip Volume control and 2-way sound control Auto standby 13 cm bass system (5") and dome tweeter Attractive white plastic mounting bracket, pivoting and tilting
This text is machine translated.
Features
- Active/passive: Active/passive
- Transmission technology: Cable
- Output power
- Total 2 x 50 W
- Nominal power 2 x 30 W
- Frequency range 80-20000 Hz
- Input signal: 500 mV/20 kΩ (unbalanced);660 mV/40 kΩ (balanced)
- 2-way system
- 5" (13 cm) bass
- Tweeter: Dome tweeter
- Number of built-in LS chassis: 2
- Speaker size 13 cm (5")
- Characteristic sound pressure 89 dB/W/m
- Max. Nominal sound pressure 104 dB
- Angle of radiation H110°/V90°
- Angle of radiation horizontal 110°
- Angle of radiation vertical 90°
- Housing material: Plastic
- Colour: White
- Mounting unit: Mounting bracket
- Ass. Operating temperature 0-40 °C
- Power supply: " 230 V/50 Hz/100 VA
- Dimensions 163 x 252 x 203 mm (with bracket)
- Width 163 mm
- Height: 252 mm
- Depth: 203 mm
- Weight 5.5 kg (pair).
- Inputs: 1 x RCA L/R (unbalanced);1 x terminal L/R (balanced);LS terminal (passive box);LS terminal
- Other: Pair
- Packaging dimensions (W x H x L) 0.2 x 0.28 x 0.425 m
- Gross weight: 6.9 kg
- Net weight: 5.63 kg
