Buy Monacor WALL-06SET/WS Wall-mounted speaker White 50 W 70 Hz - 20000 Hz 1 Pair

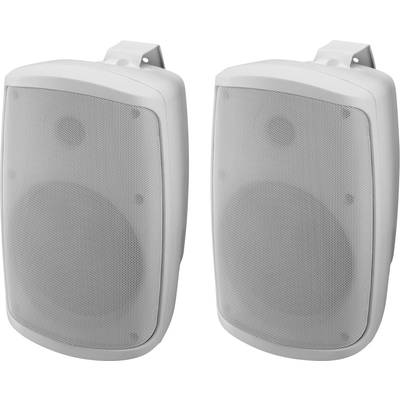

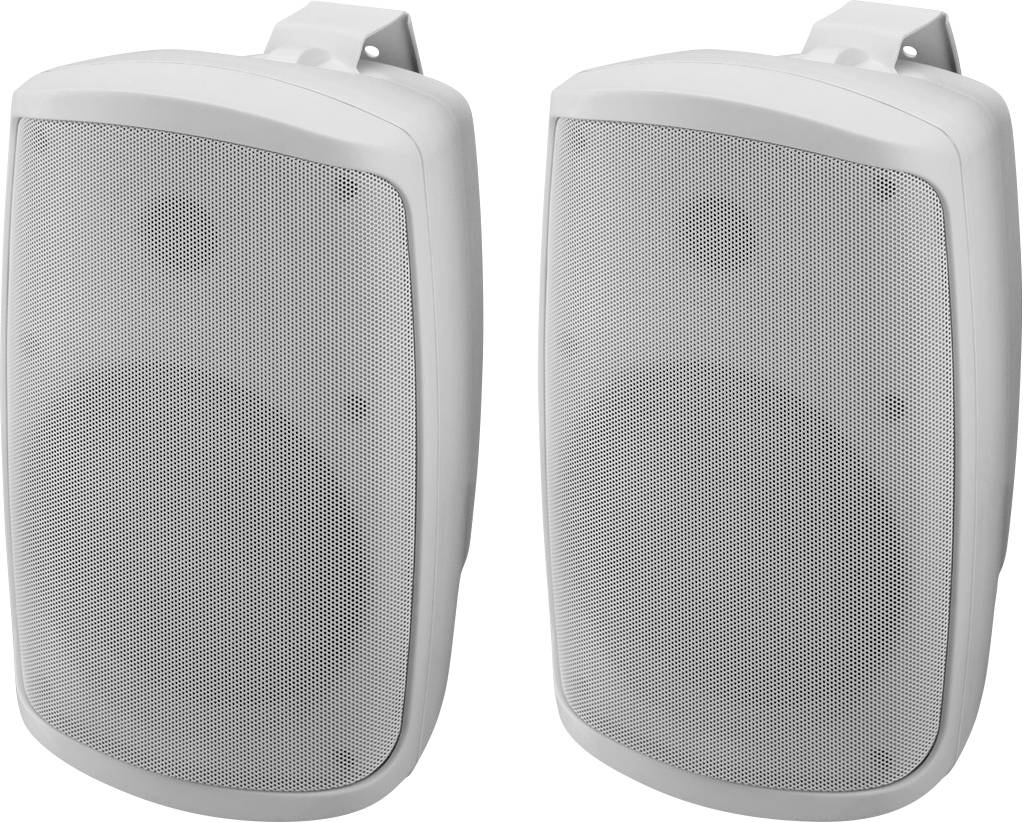

Two white speakers in a vertical arrangement, suitable for wall mounting. They feature a minimalist, contemporary design.

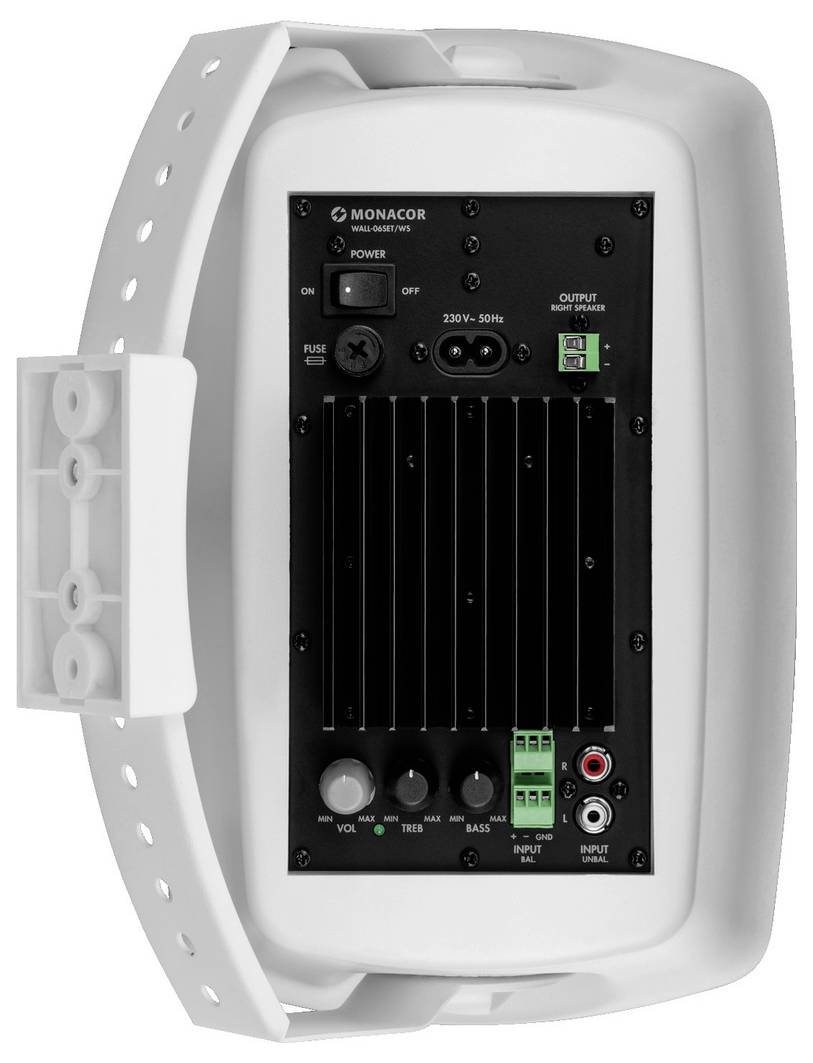

Rear view of a white speaker with various ports and controls, including volume controls and power input.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 8 kg
Transmission technology: Cable
Frequency range 70-20000 Hz
Characteristic sound pressure 90 dB/W/m
Dimensions 196 x 303 x 250 mm (with bracket)
Width: 196 mm
Height: 303 mm
Depth: 250 mm
Colour: White
Ass. Operating temperature 0-40 °C
Weight 8 kg (pair).
Gross weight: 8.65 kg
Max. Nominal sound pressure 105 dB
Inputs 1 x RCA L/R (unbalanced)
1 x terminal L/R (balanced)
LS-clamp terminal (passive box)
Loudspeaker clamping terminal
Power supply: " 230V/50 Hz/140VA
Nominal power 2 x 30 W
Angle of radiation H110°/V90°
Total output power 2 x 50 W
Other: Pair
Angle of radiation horizontal 110°
Angle of radiation vertical 90°
Active/passive: Active/passive
2-way system
Housing material: Plastic
Input signal: 890 mV/20 kΩ (unbalanced)1600 mV/40 kΩ (sym.)
6" (16 cm) bass
Number of built-in LS chassis: 2
Speaker size 16 cm (6")
Mounting unit: Mounting bracket
Tweeter: Dome tweeter

Content: 1 Pair

Max. audio capacity: 50 W

Min. frequency: 70 Hz

Max. frequency: 20000 Hz

Frequency range: 70 Hz - 20000 Hz

Factory colour: White

Width: 196 mm

Height: 303 mm

Dim: (L x W x H) 250 x 196 x 303 mm

Audio power range (max.): - 100 W

Product type: Wall-mounted speaker

Length: 250 mm

Max. sound pressure: 105 dB

Documents & Downloads

Datasheet

Datasheet 3340495 Monacor WALL-06SET/WS Wall-mounted speaker White 50 W 70 Hz - 20000 Hz 1 Pair

User & Safety Instructions

User & Safety Instructions 3340495 Monacor WALL-06SET/WS Wall-mounted speaker White 50 W 70 Hz - 20000 Hz 1 Pair

Description

Active 2-way stereo speaker system, 2 x 30 W
The set consists of an active speaker and a passive speaker. The connection of the passive box to the active box is made via a screw terminal active box with integrated 2-channel amplifier Stereo phono input or balanced L/R input via screw terminal strip Volume control and 2-fold sound control Auto standby Built-in power supply with cold socket 16-cm bass system (6") and dome tweeter Attractive white plastic mounting bracket, pivoting and tilting

This text is machine translated.

Features

Active/passive: Active/passive
Transmission technology: Cable
Output power
Total 2 x 50 W
Nominal power 2 x 30 W
Frequency range 70-20000 Hz
Input signal: 890 mV/20 kΩ (unbalanced);1600 mV/40 kΩ (balanced)
2-way system
6" (16 cm) bass
Tweeter: Dome tweeter
Number of built-in LS chassis: 2
Speaker size 16 cm (6")
Characteristic sound pressure 90 dB/W/m
Max. Nominal sound pressure 105 dB
Angle of radiation H110°/V90°
Angle of radiation horizontal 110°
Angle of radiation vertical 90°
Housing material: Plastic
Colour: White
Mounting unit: Mounting bracket
Ass. Operating temperature 0-40 °C
Power supply: " 230V/50 Hz/140VA
Dimensions 196 x 303 x 250 mm (with bracket)
Width: 196 mm
Height: 303 mm
Depth: 250 mm
Weight 8 kg (pair).
Inputs: 1 x RCA L/R (unbalanced);1 x terminal L/R (balanced);LS terminal (passive box);LS terminal
Other: Pair
Packaging dimensions (W x H x L) 0.23 x 0.33 x 0.505 m
Gross weight: 8.65 kg
Net weight: 8 kg
