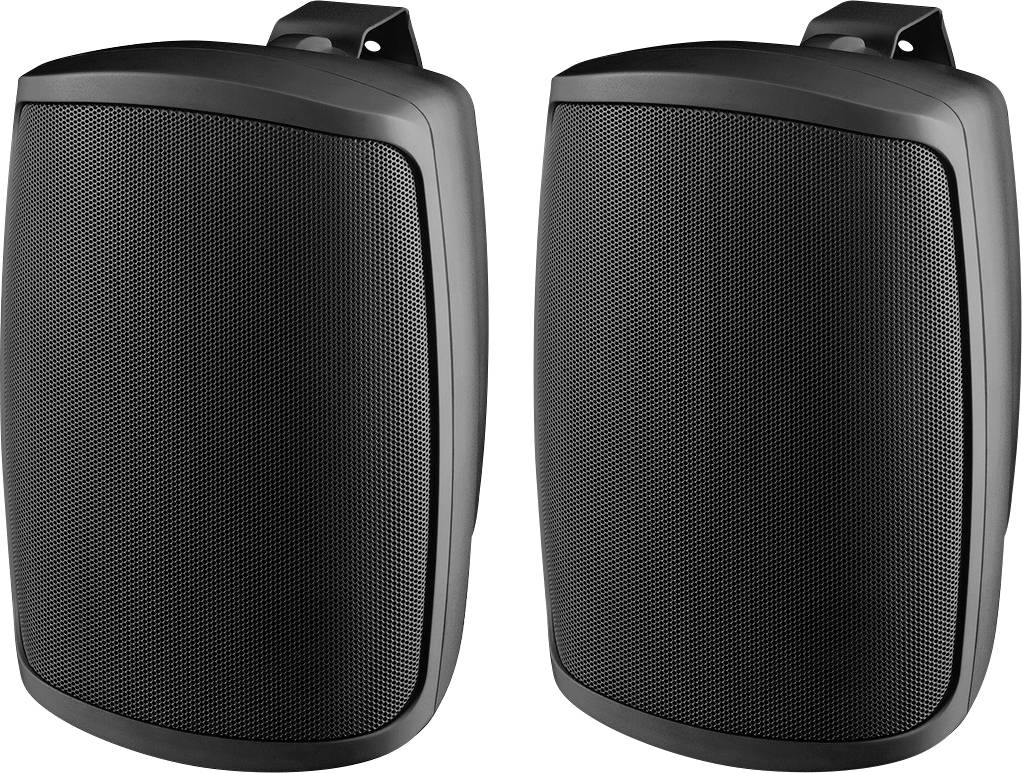

Monacor WALL-08T/SW PA speaker cabinet 50 W Black 1 Pair
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 10.54 kg
- 100 V or low impedance transmission technology
- Frequency range 35-20000 Hz
- Characteristic sound pressure 90 dB/W/m

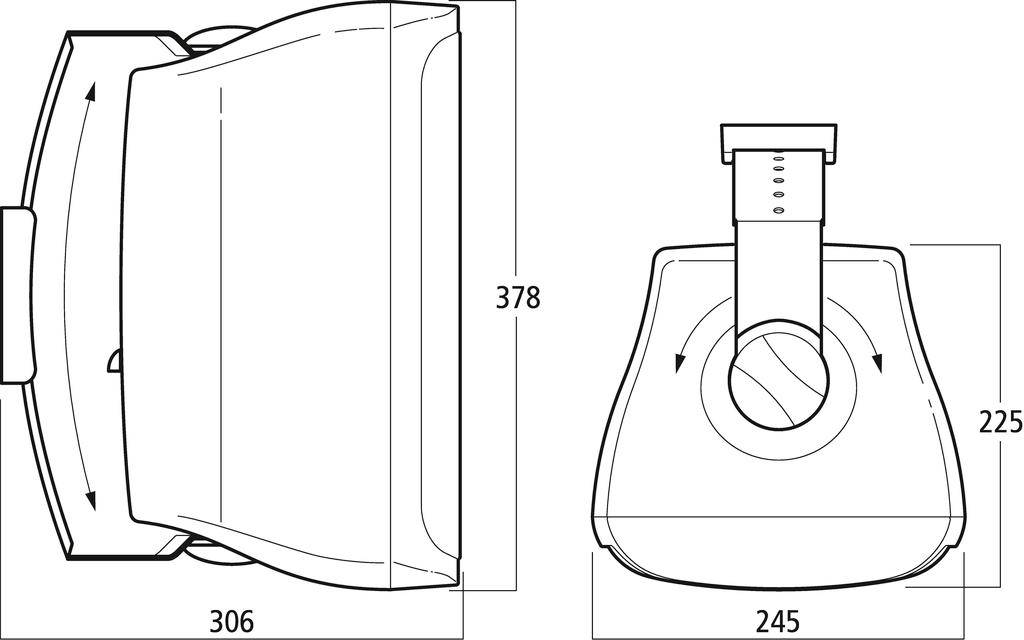

- Dimensions 245 x 378 x 306 mm (with bracket)
- Width 245 mm
- Height: 378 mm
- Depth: 306 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 5 kg
- Gross weight: 12.4 kg
- Max. Nominal sound pressure 106 dB
- Inputs: LS-clamp terminal
- Angle of radiation H100°/V80°
- Other: Tilt and swivel
- Impedance: 8 Ω
- Angle of radiation horizontal 100°
- Angle of radiation vertical 80°
- Active/passive: Passive
- 2-way system
- Housing material: Plastic
- NOMINAL RATING 50/25/12.5/6.25 W (100 V)60 W (8 Ω)
- Total load capacity 120 W.
- Woofer: Mid-range speaker 20 cm (8")
- Number of built-in LS chassis: 2
- Speaker size 20 cm (8")
- Mounting unit: Mounting bracket
- Protection system: IP65
- Tweeter: Dome tweeter 25 mm (1")
- Product type
PA speaker cabinet
- Operating voltage
100 V
- RMS capacity
50 W
- Max. load
120 W
- Impedance
8 Ω
- Max. sound pressure
106 dB
IP65
- Material
Plastic
- Length
30.6 mm
- Width
24.5 mm
- Content
1 Pair
- Weight
5 kg
- Factory colour
Black
- Height
37.8 mm
- Sound pressure
90 dB
- Frequency range
35-20000 Hz
Documents & Downloads
Datasheet
Datasheet 3340497 Monacor WALL-08T/SW PA speaker cabinet 50 W Black 1 Pair
User & Safety Instructions
User & Safety Instructions 3340497 Monacor WALL-08T/SW PA speaker cabinet 50 W Black 1 Pair
Description
2-way PA speaker box pair

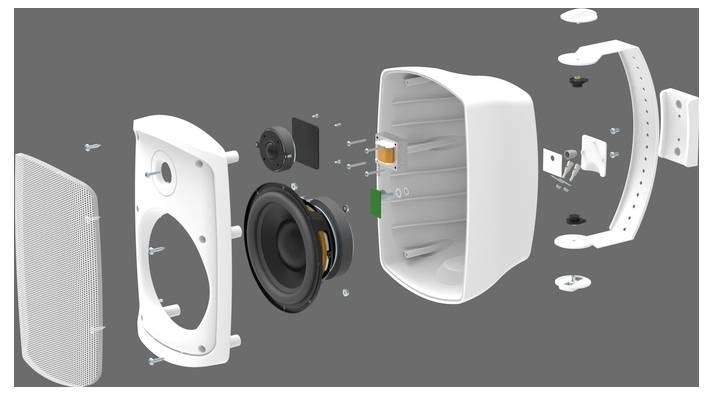

100 V wall loudspeaker with plastic housing in black 4 power tapping as well as switchable to 8 Ohm operation 20 cm low/mid range speaker (8") and 25 mm dome tweeter (1") High sound quality and voice clarity, swivel and tilt able connection terminal Mounting bracket with cover cap
This text is machine translated.
100 V wall loudspeaker with plastic housing in black 4 power tapping as well as switchable to 8 Ohm operation 20 cm low/mid range speaker (8") and 25 mm dome tweeter (1") High sound quality and voice clarity, swivel and tilt able connection terminal Mounting bracket with cover cap
This text is machine translated.
Features
- Active/passive: Passive
- 100 V or low impedance transmission technology
- Load capacity
- Total: 120 W
- NOMINAL RATING 50/25/12.5/6.25 W (100 V);60 W (8 Ω)
- Impedance: 8 Ω
- Frequency range 35-20000 Hz
- 2-way system
- Woofer: Mid-range speaker 20 cm (8")
- Tweeter: Dome tweeter 25 mm (1")
- Number of built-in LS chassis: 2
- Speaker size 20 cm (8")
- Characteristic sound pressure 90 dB/W/m
- Max. Nominal sound pressure 106 dB
- Angle of radiation H100°/V80°
- Angle of radiation horizontal 100°
- Angle of radiation vertical 80°
- Housing material: Plastic
- Colour, black
- Mounting unit: Mounting bracket
- Protection system: IP65
- Ass. Operating temperature 0-40 °C
- Dimensions 245 x 378 x 306 mm (with bracket)
- Width 245 mm
- Height: 378 mm
- Depth: 306 mm
- Weight: 5 kg
- Inputs: LS-clamp terminal
- Other: Tilt and swivel
- Packaging dimensions (W x H x L) 0.29 x 0.41 x 0.59 m
- Gross weight: 12.4 kg
- Net weight: 10.54 kg
