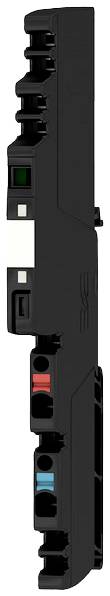

Image similar
Monitoring relay 18 - 30 V DC Weidmüller TGD ELM-6 Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Monitoring relay
Functions
Overload
Max. operating voltage
30 V DC
Type
TGD ELM-6
Technical specifications
- Packaging type
Piece
- Product type
Monitoring relay
- Type
TGD ELM-6
- Functions
Overload
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Connection
Push-in connector
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
6.1 mm
- Height
125 mm
- Depth
96.5 mm
- Dim
(W x H x D) 6.1 x 125 x 96.5 mm
- Content
1 pc(s)
- AWG max.
12
- AWG (min.)
26
- Nominal voltage
24 V DC
- Nominal current
6 A
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- UKCA
yes
